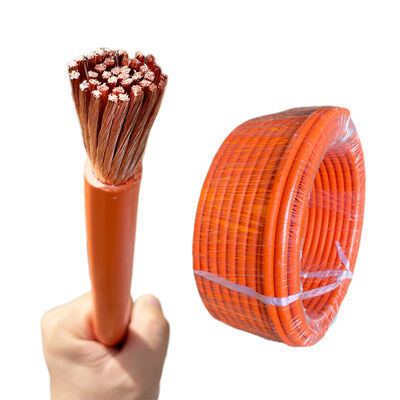

UL3820 XLPE Battery Cable 125C 1000V High Voltage Electric Vehicle Cable for Auto and Industrial Use
Product Details
| Conductor Material | Tinned Copper | Diameter | 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 5AWG, 6AWG, 7AWG, 8AWG, 9AWG, 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG |
|---|---|---|---|
| Insulation Material | XLPE | Rated Voltage | 1000V |
| Conductor Type | Stranded | Shape | Round |
| Temperature Rating | 125C | Max Resistance | 0.1722Ω/KM (4/0AWG) |
| Insulation Thickness | 0.78mm (for AWG 30-12) | Nominal Diameter | 1.86mm (AWG 30) |
| Unit Length | 610/2000M/FT | Conductor Construction | 7/010 (AWG 30) |
| Max Diameter | 19.60mm (4/0AWG) | Strand Count | 547 (4/0AWG) |
| Strand Diameter | 0.40mm (4/0AWG) | ||
| Highlight | 125C Battery Cable,1000V Electric Vehicle Cable,XLPE Insulation High Voltage Cable |
||
Product Description

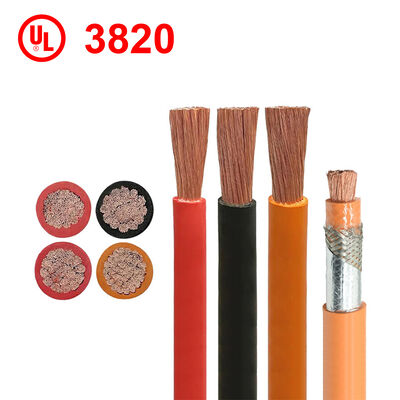

UL3820 XLPE Battery Cable 125°C 1000V High Voltage Electric Vehicle Cable
Available in sizes: 2AWG, 4AWG, 5AWG, 6AWG and other standard gauges
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/FT) |
|---|---|---|---|---|---|---|
| 30 | 7/010 | 0.30 | 0.78 | 1.86 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 239 | |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 150 | |
| 24 | 7/0.2 | 0.60 | 0.78 | 2.16 | 94.2 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 59.4 | |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 36.7 | |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 23.2 | |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 14.6 | |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.96 | |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.64 | 100/328 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.55 | |
| 9 | 131/0.254 | 3.36 | 0.78 | 4.92 | 2.813 | |
| 8 | 166/0.254 | 3.75 | 1.15 | 6.05 | 2.23 | |
| 7 | 209/0.254 | 4.21 | 1.15 | 6.51 | 1.768 | |
| 6 | 263/0.254 | 4.79 | 1.53 | 7.85 | 1.403 | |
| 4 | 169/0.40 | 6.02 | 1.53 | 9.08 | 0.882 | |
| 2 | 268/0.40 | 7.60 | 1.53 | 10.66 | 0.5548 | |
| 1/0 | 426/0.40 | 10.8 | 2.1 | 15.00 | 0.3487 | |
| 2/0 | 537/0.40 | 12.2 | 2.1 | 16.40 | 0.2766 | |
| 3/0 | 677/0.40 | 13.7 | 2.1 | 17.90 | 0.2194 | |
| 4/0 | 547/0.40 | 15.4 | 2.1 | 19.60 | 0.1722 |
