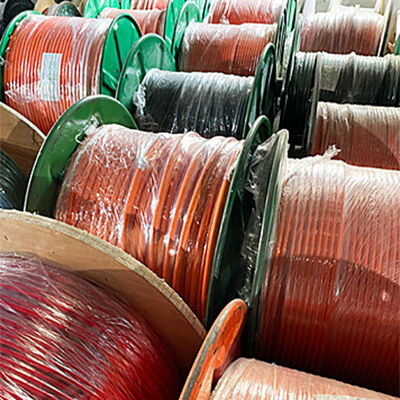

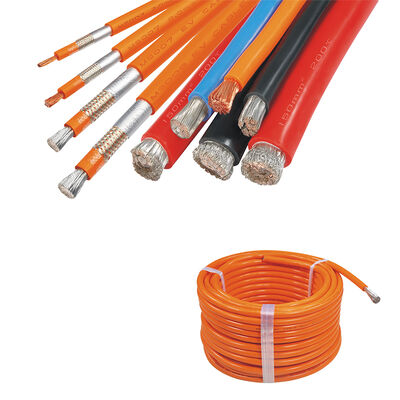

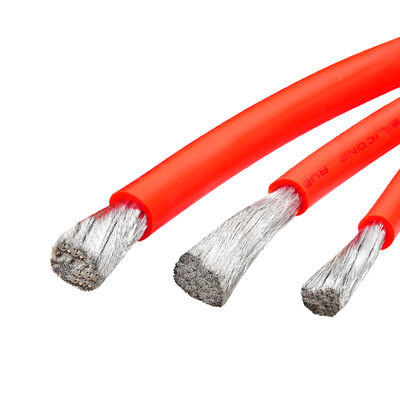

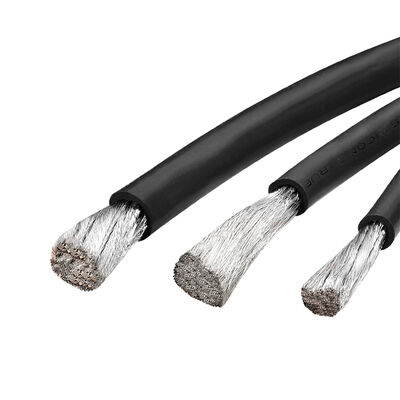

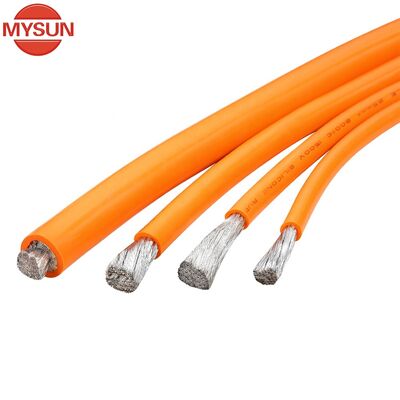

EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
Product Details
| Conductor Material | Tinned Copper | Diameter | 10 Mm², 16 Mm², 25 Mm², 35 Mm², 50 Mm², 70 Mm², 95 Mm², 150 Mm², 240 Mm², 300 Mm², 400 Mm², 0.2mm², 0.30mm², 0.5mm², 1.0mm², 1.5mm², 2mm², 2.5mm², 3mm², 4mm², 6mm² |
|---|---|---|---|
| Insulation Material | XLPE | Rated Voltage | 1500V |
| Conductor Type | Stranded | Shape | Round |
| Temperature | 200C, 200℃ | Insulation | Silicone Rubber |
| Max Resistance | 1.80 Ω/KM (10.0 Mm²), 1.15 Ω/KM (16.0 Mm²), 0.80 Ω/KM (25.0 Mm²), 0.60 Ω/KM (35.0 Mm²), 0.40 Ω/KM (50.0 Mm²), 0.30 Ω/KM (70.0 Mm²), 0.20 Ω/KM (95.0 Mm²), 0.17 Ω/KM (120.0 Mm²), 0.14 Ω/KM (150.0 Mm²), 0.11 Ω/KM (185.0 Mm²), 0.09 Ω/KM (240.0 Mm²) | Conductor Construction | 790/0.127 (10.0 Mm²), 510/0.2 (16.0 Mm²), 797/0.2 (25.0 Mm²), 1115/0.2 (35.0 Mm²), 1593/0.2 (50.0 Mm²), 2230/0.2 (70.0 Mm²), 3026/0.2 (95.0 Mm²), 3823/0.2 (120.0 Mm²), 4778/0.2 (150.0 Mm²), 5893/0.2 (185.0 Mm²), 7644/0.2 (240.0 Mm²) |
| Nominal Thickness | ≥0.65 Mm (10.0 Mm²), ≥0.70 Mm (16.0 Mm²), ≥0.80 Mm (25.0 Mm²), ≥0.90 Mm (35.0 Mm²), ≥0.90 Mm (50.0 Mm²), ≥1.00 Mm (70.0 Mm²), ≥1.00 Mm (95.0 Mm²), ≥1.30 Mm (120.0 Mm²), ≥1.30 Mm (150.0 Mm²), ≥1.30 Mm (185.0 Mm²), ≥1.30 Mm (240.0 Mm²) | Insulation Diameter | 6.40 Mm (10.0 Mm²), 8.00 Mm (16.0 Mm²), 10.00 Mm (25.0 Mm²), 11.50 Mm (35.0 Mm²), 13.00 Mm (50.0 Mm²), 15.00 Mm (70.0 Mm²), 17.00 Mm (95.0 Mm²), 20.00 Mm (120.0 Mm²), 22.00 Mm (150.0 Mm²), 24.00 Mm (185.0 Mm²), 28.00 Mm (240.0 Mm²) |
| Conductor Diameter | 4.6 Mm (10.0 Mm²), 6.0 Mm (16.0 Mm²), 7.5 Mm (25.0 Mm²), 8.8 Mm (35.0 Mm²), 10.3 Mm (50.0 Mm²), 12.0 Mm (70.0 Mm²), 14.0 Mm (95.0 Mm²), 16.0 Mm (120.0 Mm²), 18.0 Mm (150.0 Mm²), 19.0 Mm (185.0 Mm²), 24.0 Mm (240.0 Mm²) | Voltage Rating | 1500V |
| Wire Type | Insulated, Battery Energy Storage Cable | ||
| Highlight | 1500V Rated Voltage XLPE Wire,Tinned Copper Conductor Battery Cable,200C Temperature Rating EV Cable |
||
Product Description
EV 125C 1500V XLPE Wire for New Energy Equipment
Supplies Fortune 500 Companies - Top XLPE Cable Supplier in China
Technical Specifications
| Conductor Size (mm²) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) |
|---|---|---|---|---|---|
| 10.0 | 790/0.127 | 4.6 | ≥0.65 | 6.40 | 1.80 |
| 16.0 | 510/0.2 | 6.0 | ≥0.70 | 8.00 | 1.15 |
| 25.0 | 797/0.2 | 7.5 | ≥0.80 | 10.00 | 0.80 |
| 35.0 | 1115/0.2 | 8.8 | ≥0.90 | 11.50 | 0.60 |
| 50.0 | 1593/0.2 | 10.3 | ≥0.90 | 13.00 | 0.40 |
| 70.0 | 2230/0.2 | 12.0 | ≥1.00 | 15.00 | 0.30 |
| 95.0 | 3026/0.2 | 14.0 | ≥1.00 | 17.00 | 0.20 |
| 120.0 | 3823/0.2 | 16.0 | ≥1.30 | 20.00 | 0.17 |
| 150.0 | 4778/0.2 | 18.0 | ≥1.30 | 22.00 | 0.14 |
| 185.0 | 5893/0.2 | 19.0 | ≥1.30 | 24.00 | 0.11 |
| 240.0 | 7644/0.2 | 24.0 | ≥1.30 | 28.00 | 0.09 |
