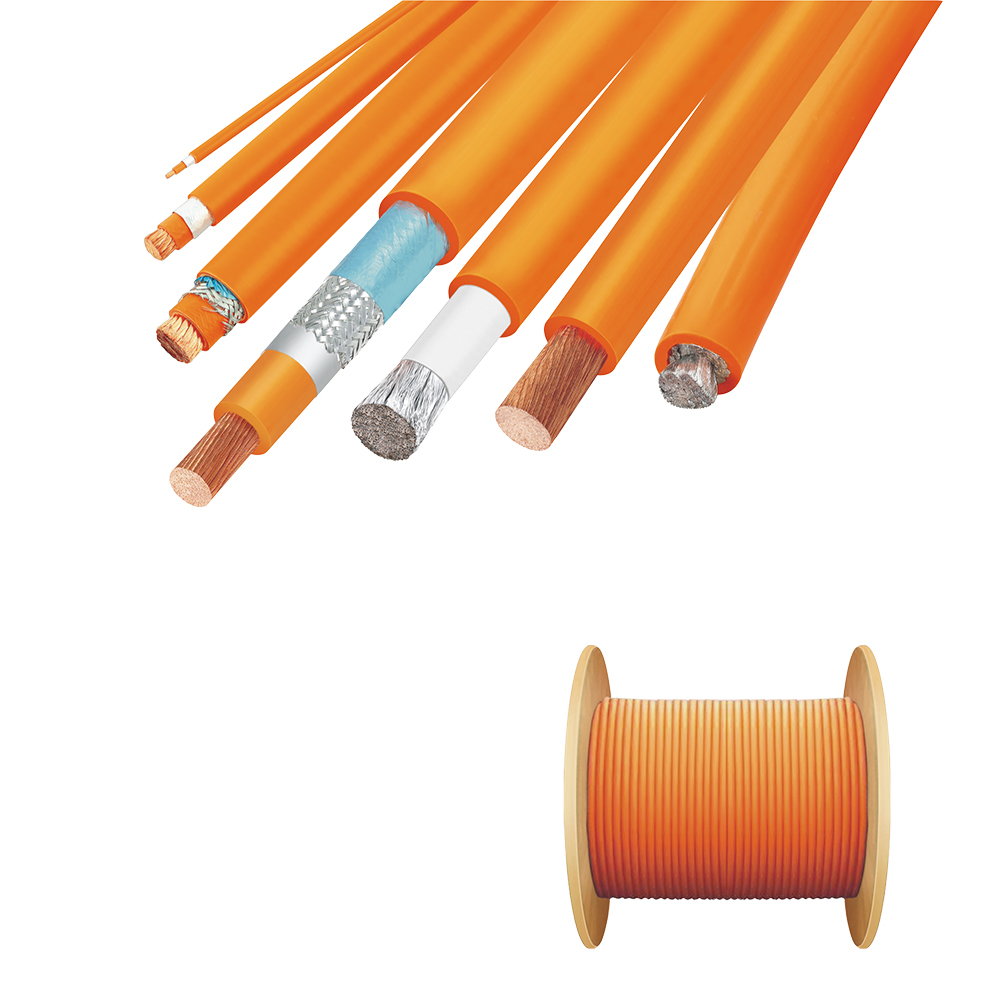

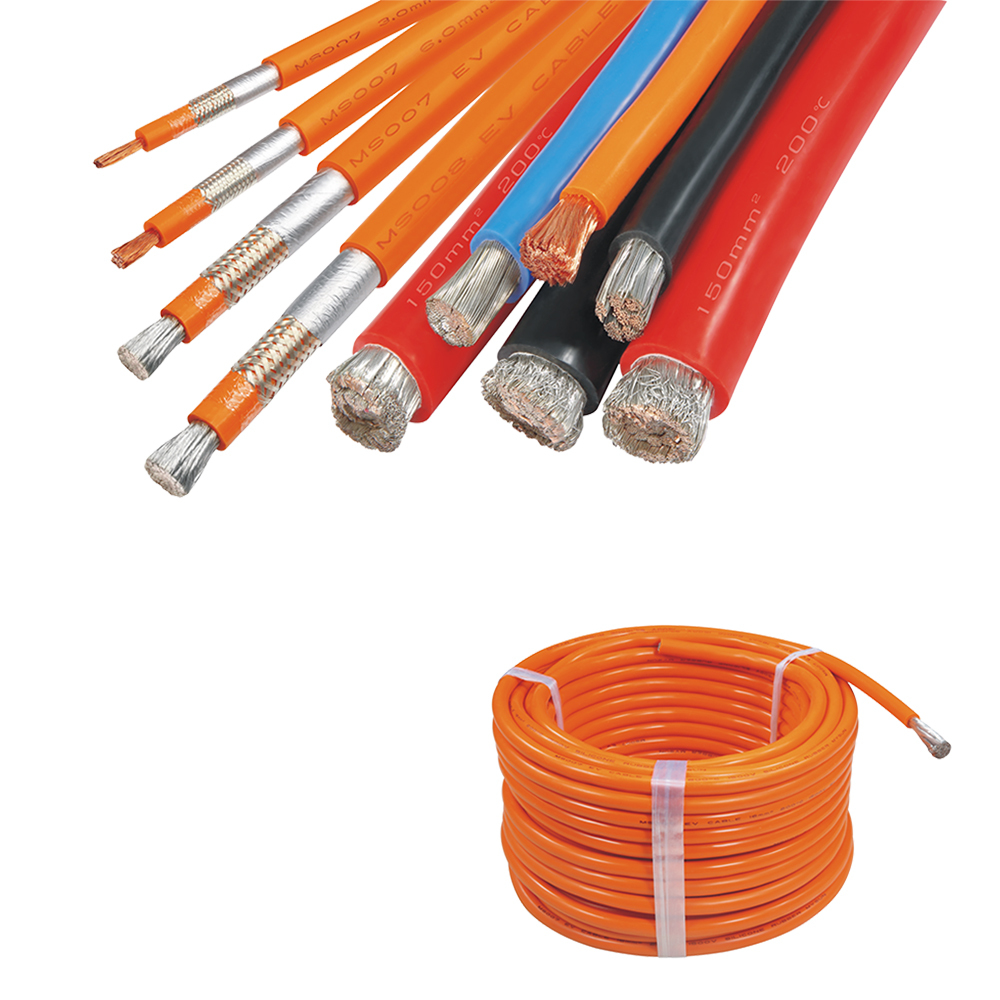

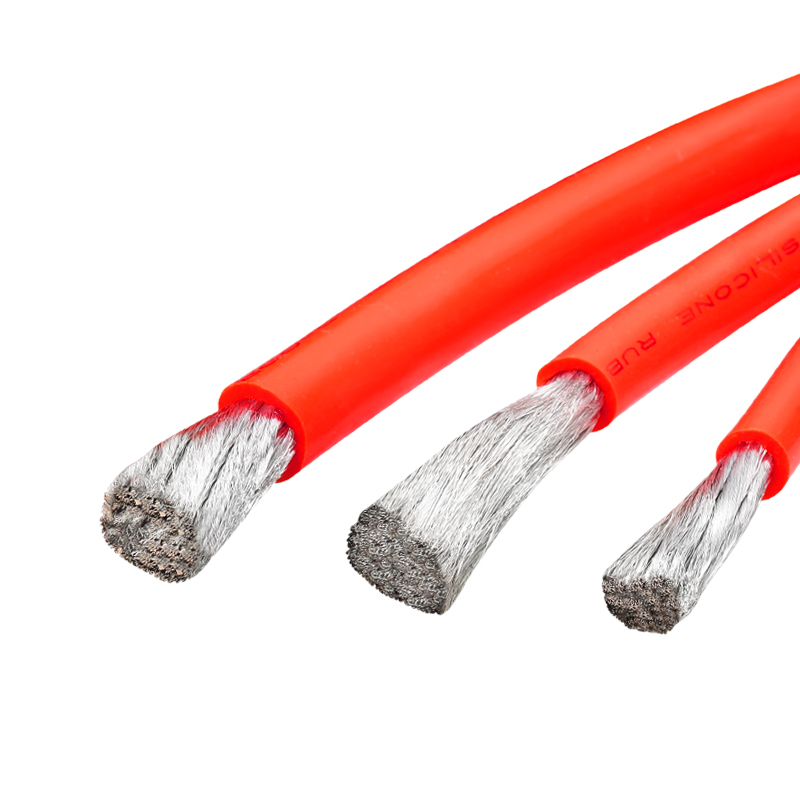

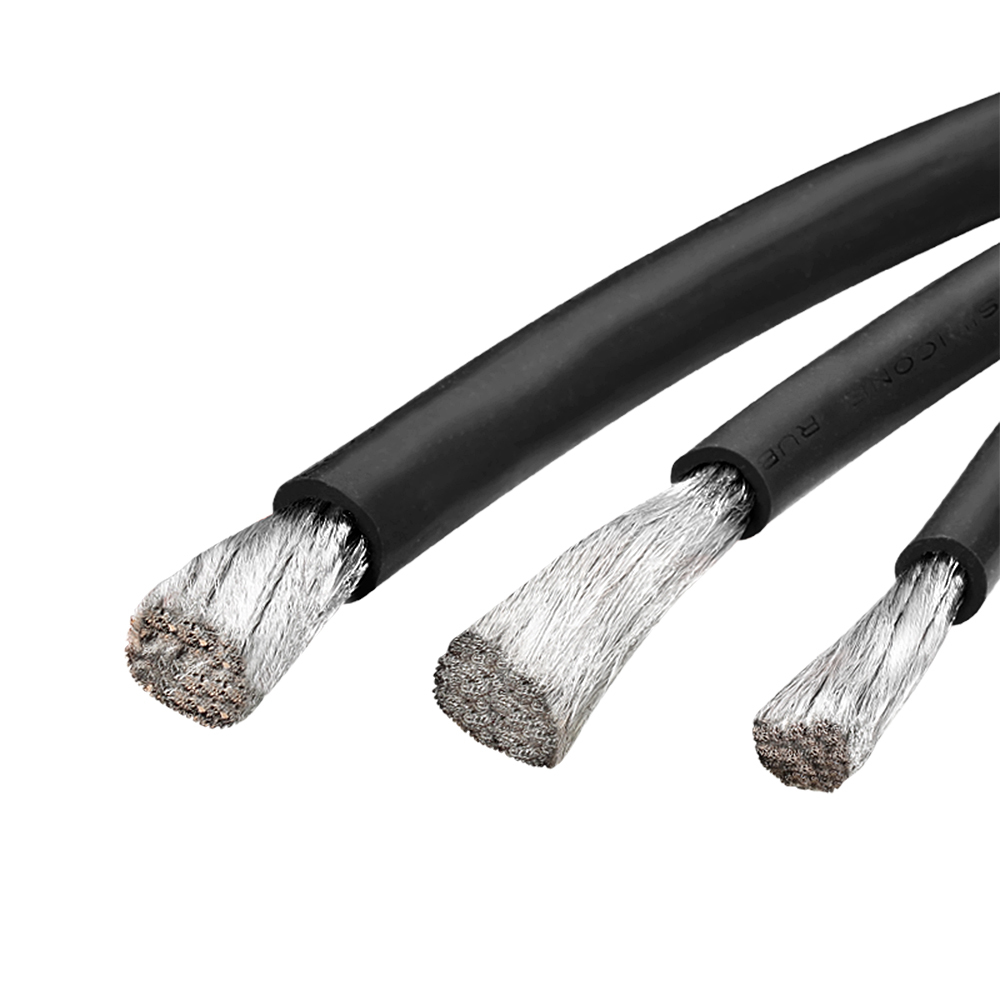

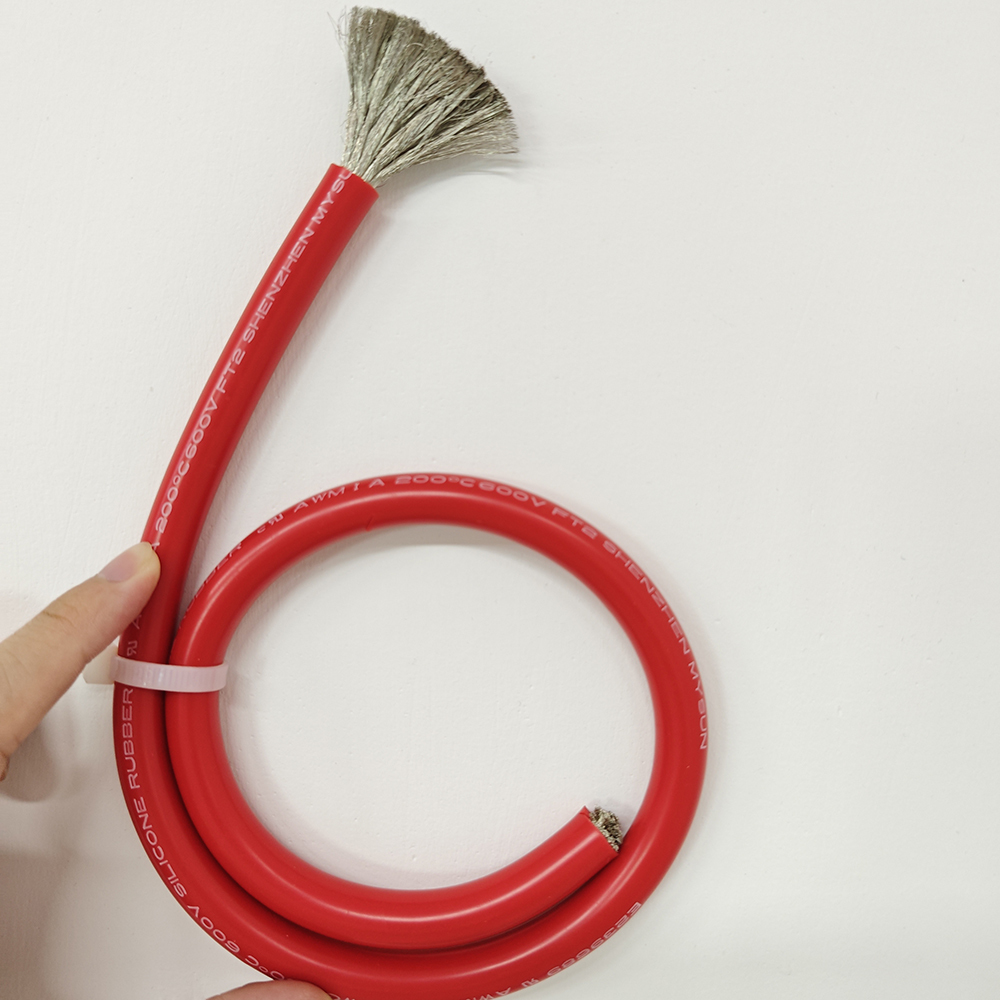

200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor

  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
  • 200C 600V High Temperature Silicone Battery Cable with Tinned Copper Conductor
Place of Origin Guangdong, China
Brand Name MYSUN
Certification UL RoHS CE CCC cUL
Model Number UL3512
Minimum Order Quantity 3050
Product Details
Conductor Material Tinned Copper Wire Diameter 1 AWG, 2 AWG, 4 AWG, 6 AWG, 10 AWG, 8 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 0AWG, 1/0AWG, 2/0AWG, 3/0AWG, 4/0AWG, 25mm@, 35mm2, 50mm2, 75mm2, 90mm2, 120mm2, 150mm2, 200mm2, 240mm2, 300mm2, 400mm2
Insulation Material Silicone Rated Voltage 600V
Conductor Type Stranded Shape Round
Temperature Rating 200C Type Insulated
Conductor Tinned Copper Core Insulation Silicone Insulation Cable
Material Copper Jacket Silicone
Standard UL758 Nominal Thickness 0.69mm, 1.02mm, 1.15mm, 1.37mm, 1.83mm
Diameter Tolerance ±0.1mm, ±0.2mm, ±0.3mm, ±0.4mm, ±0.5mm, ±0.6mm, ±0.7mm, ±0.8mm, ±1.0mm
Highlight

200C Silicone Cable

,

600V Battery Cable

,

Tinned Copper High Temperature Cable
Leave a Message
Product Description
UL3512 Super Soft Silicone Wire Specifications
High-temperature silicone cable rated for 200°C and 600V applications, available in AWG sizes from 22 to 4/0.
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
2265/0.080.480.692.40±0.1
20104/0.080.600.692.55±0.1
18164/0.080.780.692.80±0.1
16261/0.081.170.693.10±0.1
14415/0.081.470.693.70±0.1
12660/0.082.100.694.30±0.1
101050/0.082.701.025.40±0.2
91320/0.083.4±0.301.156.10±0.3
81650/0.084.0±0.301.377.00±0.3
72100/0.084.80±0.31.377.90±0.3
62648/0.085.30±0.301.378.30±0.4
53338/0.086.10±0.41.379.20±0.4
44210/0.086.80±0.51.379.90±0.4
35309/0.087.70±0.51.3710.9±0.5
26692/0.088.70±0.51.3711.8±0.5
18842/0.089.70±0.51.8314.0±0.6
1/010647/0.0811±0.51.8315.0±0.6
2/013422/0.0812±0.51.8316.3±0.7
3/016921/0.0814.5±0.51.8318.5±0.8
4/021338/0.0815.5±051.8319.5±1.0
Product Applications
Ideal for high-temperature environments including lithium battery systems, industrial equipment, and electrical applications requiring superior flexibility and heat resistance.
Silicone cable applications in industrial and battery systems
Company Overview
Professional manufacturer with 26 years of experience in high-temperature wires and cables, headquartered in Shenzhen with production facilities in Dongguan and Jingzhou.
Manufacturing facility and company overview Company production capabilities and technology
Quality Certifications
Our products meet international standards with certifications including UL, cUL, VDE, REACH, CE, ROHS, CCC, and CQC.
Quality certifications and compliance documentation
Frequently Asked Questions
  • Manufacturing Expertise: 26 years specializing in high-temperature wires and cables with headquarters in Shenzhen and production bases in Dongguan and Jingzhou.
  • Product Range: High-temperature wires and cables, silicone tubing, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
  • Competitive Advantages: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, REACH, CE, ROHS, CCC, CQC certification.
  • Global Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash in USD, EUR, CNY.
Partnership Opportunity
Seeking country agents for mutually beneficial partnerships. Contact us to learn about our agent program and distribution opportunities.
