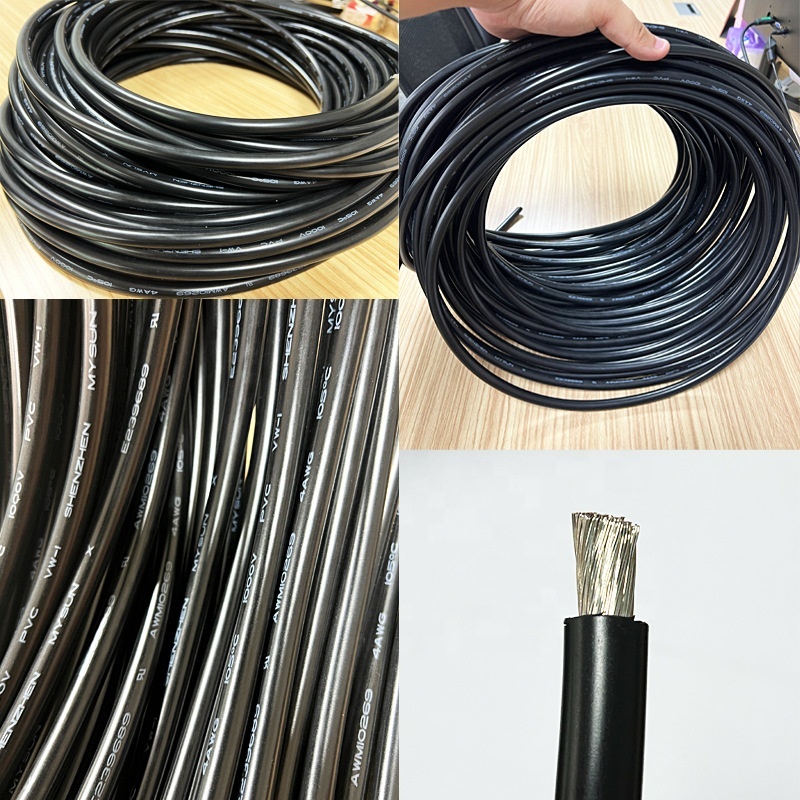

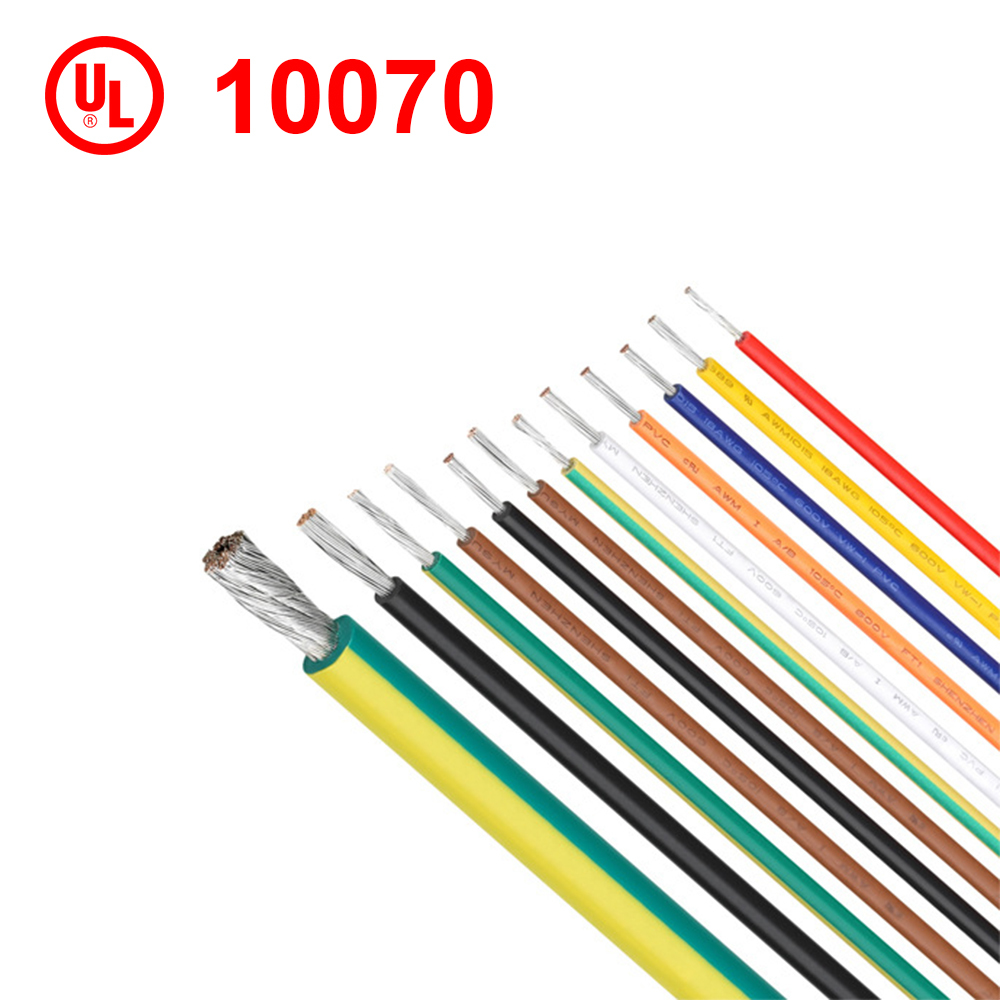

UL10070 PVC Wire 105C 600V Flexible Insulation Battery Cable for Internal Wiring
Product Details
| Conductor Material | Cooper | Diameter | 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 18 AWG, 16 AWG, 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 7AWG, 9AWG |
|---|---|---|---|
| Insulation Material | PVC | Rated Voltage | 600V |
| Conductor Type | Stranded | Shape | Round |
| Temperature | 105°C | Rated Temperature | 105C |
| Package | 100 Meter/roll | Voltage | 600V |
| Colors | Red, Blue, White, Yellow, Green, Brown, Black, Grey, Transparent | Max Conductor Resistance | 23.2 Ω/KM (18 AWG), 14.6 Ω/KM (16 AWG), 8.96 Ω/KM (14 AWG), 5.64 Ω/KM (12 AWG), 3.55 Ω/KM (10 AWG), 2.813 Ω/KM (9 AWG), 2.23 Ω/KM (8 AWG), 1.768 Ω/KM (7 AWG), 1.403 Ω/KM (6 AWG), 0.882 Ω/KM (4 AWG), 0.5548 Ω/KM (2 AWG), 0.3487 Ω/KM (1/0 AWG), 0.2766 Ω/KM ( |
| Unit Length | 305/1000 (18-10 AWG), 100/328 (9-4/0 AWG) | Nominal Thickness | 0.78 Mm (18-10 AWG), 1.15 Mm (8-7 AWG), 1.53 Mm (6-4 AWG), 2.10 Mm (1/0-4/0 AWG) |
| Insulation Diameter | 2.75 Mm (18 AWG), 3.06 Mm (16 AWG), 3.45 Mm (14 AWG), 3.39 Mm (12 AWG), 4.58 Mm (10 AWG), 4.91 Mm (9 AWG), 6.05 Mm (8 AWG), 6.51 Mm (7 AWG), 7.85 Mm (6 AWG), 9.08 Mm (4 AWG), 10.66 Mm (2 AWG), 13.80 Mm (1/0 AWG), 14.91 Mm (2/0 AWG), 16.02 Mm (3/0 AWG), 17. | ||
| Highlight | 105C PVC Wire,600V Battery Cable,Flexible Insulation UL10070 Wire |
||
Product Description
UL10070 PVC Wire 105°C 600V Flexible Insulation Internal Wire
Seeking Country Agents for Win-Win Partnership
Contact us to get the best quotation and explore partnership opportunities.
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Insulation Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.39 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.55 | 305/1000 |
| 9 | 37/0.475 | 3.35 | 0.78 | 4.91 | 2.813 | 305/1000 |
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.23 | 100/328 |
| 7 | 65/0.45 | 4.21 | 1.15 | 6.51 | 1.768 | 100/328 |
| 6 | 84/0.45 | 4.79 | 1.53 | 7.85 | 1.403 | 100/328 |
| 4 | 133/0.45 | 6.02 | 1.53 | 9.08 | 0.882 | 100/328 |
| 2 | 212/0.45 | 7.60 | 1.53 | 10.66 | 0.5548 | 100/328 |
| 1/0 | 7/3.2 | 9.6 | 2.10 | 13.80 | 0.3487 | 100/328 |
| 2/0 | 7/3.57 | 10.71 | 2.10 | 14.91 | 0.2766 | 100/328 |
| 3/0 | 7/3.94 | 11.82 | 2.10 | 16.02 | 0.2194 | 100/328 |
| 4/0 | 7/4.42 | 13.26 | 2.10 | 17.46 | 0.1722 | 100/328 |
Product Overview
Applications
Ideal for internal wiring applications requiring flexible insulation, high temperature resistance (105°C), and 600V rating.
