200°C Rated Temperature UL Standard Super Soft Battery Cable Silicone Wire for Industrial Applications
Product Details
| Conductor Material | Copper | Diameter | 1 AWG, 2 AWG, 6 AWG, 4 AWG, 8 AWG, 10 AWG, 14 AWG, 12 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG |
|---|---|---|---|
| Insulation Material | Silicone | Rated Voltage | 600 V |
| Conductor Type | Stranded | Type | Insulated |
| Rated Temperature | -80C ~ +200C | Conductor | Tinned Wire |
| Insulation | Silicone Rubber | Max Conductor Resistance | 143 Ω/KM (26 AWG), 89.3 Ω/KM (24 AWG), 56.4 Ω/KM (22 AWG), 35.2 Ω/KM (20 AWG), 22.2 Ω/KM (18 AWG), 14 Ω/KM (16 AWG) |
| Unit Length | 305/1000 M/Ft (26 AWG) | Conductor Construction | 7/0.16 (26 AWG), 7/0.20 (24 AWG), 7/0.254 (22 AWG), 7/0.31 (20 AWG), 7/0.39 (18 AWG), 7/0.49 (16 AWG) |
| Nominal Thickness | 0.78 Mm | Insulation Diameter | 2.04 Mm (26 AWG), 2.17 Mm (24 AWG), 2.33 Mm (22 AWG), 2.5 Mm (20 AWG), 2.75 Mm (18 AWG), 3.05 Mm (16 AWG) |
| Color | All Colors | ||
| Highlight | 200°C Rated Temperature Battery Cable,UL Standard Silicone Wire,Super Soft UL758 Cable |
||
Product Description

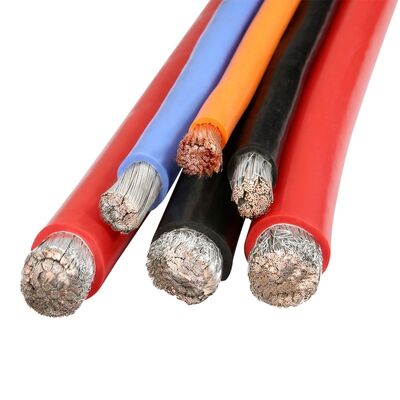

200 Degree UL Standard Super Soft Battery Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
UL3135 Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 |
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
