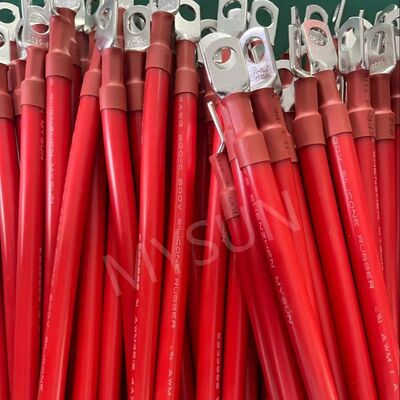

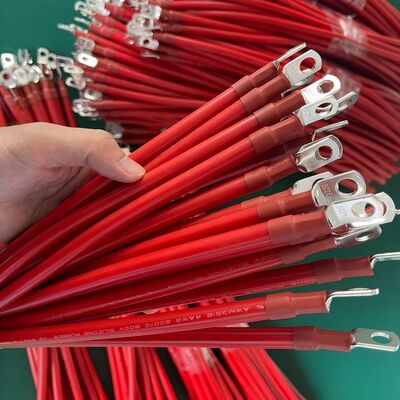

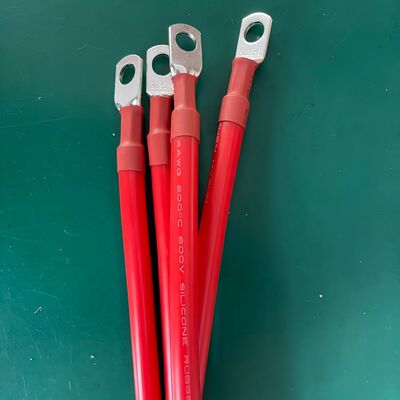

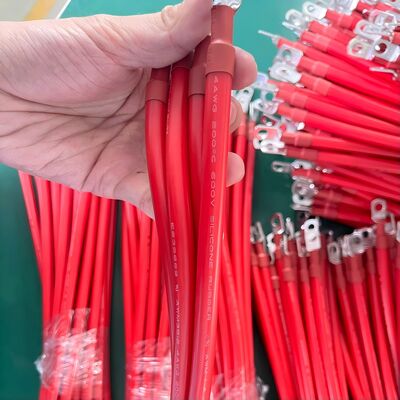

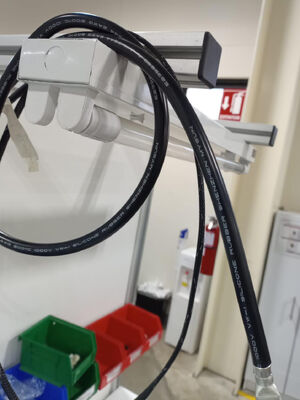

UL Standard Battery Connection Cable High Temperature High Voltage Silicone Wire for New Energy Applications
Product Details
| Conductor Material | Copper | Diameter | 2 AWG, 1 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 25mm2, 35mm2, 50mm2, 75mm2, 90mm2, 120mm2, 240mm2, 400mm2 |
|---|---|---|---|
| Insulation Material | Silicone | Rated Voltage | 600V, 1000V, 1500V |
| Conductor Type | Stranded | Shape | Round |
| Temperature Range | -80C ~ +200C | Insulation Thickness | 0.78mm, 1.15mm, 1.52mm, 2.03mm |
| Conductor Construction | Tinned Copper/Customize | Nominal Thickness | 0.78mm, 1.15mm, 1.52mm, 2.03mm |
| Shielding | Optional | Wire Diameter | 0.48mm - 16.3mm |
| Strand Count | 25 To 13422 | Strand Diameter | 0.08mm |
| Insulation Diameter | 2.10mm - 16.3mm | ||
| Highlight | UL Standard Battery Connection Cable,High Temperature Silicone Wire,High Voltage New Energy Cable |
||
Product Description
UL3512 Super Soft Silicone Wire Specifications
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
| Conductor | Insulation | |||
|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 9 | 1320/0.08 | 3.80±0.3 | 1.15 | 6.10±0.3 |
| 8 | 1650/0.08 | 4.00±0.30 | 1.15 | 6.30±0.3 |
| 7 | 2100/0.08 | 4.80±0.3 | 1.52 | 7.90±0.3 |
| 6 | 2648/0.08 | 5.30±0.30 | 1.52 | 8.30±0.4 |
| 5 | 3338/0.08 | 6.10±0.5 | 1.52 | 9.20±0.4 |
| 4 | 4210/0.08 | 6.80±0.5 | 1.52 | 9.90±0.4 |
| 3 | 5309/0.08 | 7.80±0.5 | 1.52 | 10.9±0.5 |
| 2 | 6692/0.08 | 8.70±0.5 | 1.52 | 11.8±0.5 |
| 1 | 8842/0.08 | 10.0±0.6 | 2.03 | 14.0±0.6 |
| 1/0 | 10647/0.08 | 11.0±0.70 | 2.03 | 15.0±0.6 |
| 2/0 | 13422/0.08 | 12.3±0.8 | 2.03 | 16.3±0.7 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
