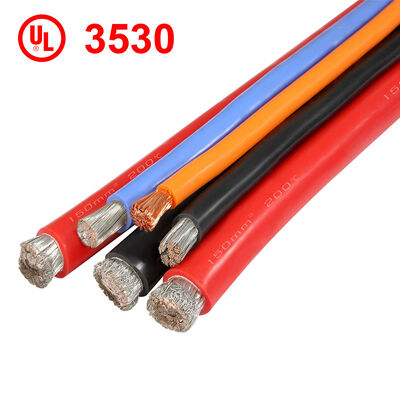

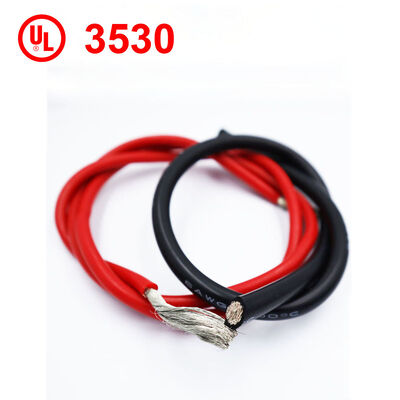

UL3530 High Temperature Silicone Insulated Wire with Tinned Copper Conductor for 200C Applications
Product Details
| Conductor Material | Tinned Copper Wire | Diameter | 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG, 28AWG |
|---|---|---|---|
| Insulation Material | Silicone | Rated Voltage | 600V |
| Conductor Type | Stranded | Shape | Round |
| Temperature | 200C | Type | Insulated |
| Conductor | Tinned Copper Core | Insulation | Silicone Insulation Cable |
| Material | Copper | Jacket | Silicone |
| Color | Optional | Max Resistance | 143Ω/KM (26AWG), 89.3Ω/KM (24AWG), 56.4Ω/KM (22AWG), 35.2Ω/KM (20AWG), 22.2Ω/KM (18AWG), 14Ω/KM (16AWG), 8.78Ω/KM (14AWG), 5.53Ω/KM (12AWG), 3.476Ω/KM (10AWG), 2.16Ω/KM (8AWG), 1.362Ω/KM (6AWG), 0.8559Ω/KM (4AWG), 0.5384Ω/KM (2AWG), 0.4268Ω/KM (1AWG) |
| Unit Length | 305M/1000Ft (26AWG), 100M/328Ft (8AWG), 50M/164Ft (1AWG) | ||
| Highlight | UL3530 Silicone Insulated Wire,200C High Temperature Wire,Tinned Copper Silicone Electrical Cable |
||
Product Description
High Temperature Electric Wires UL3530
Available in various AWG sizes: 1, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 AWG silicone cables
Product Overview
Professional manufacturer seeking country agents for mutually beneficial partnerships in high-temperature wire distribution.
UL3530 Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Insulation Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.6 | 0.78 | 2.17 | 89.3 | |
| 22 | 7/0.254 | 0.76 | 0.78 | 2.33 | 56.4 | |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | |
| 18 | 7/0.39 | 1.17 | 0.78 | 2.75 | 22.2 | |
| 16 | 7/0.49 | 1.47 | 0.78 | 2.05 | 14 | |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.43 | 8.78 | |
| 12 | 19/0.47 | 2.36 | 0.78 | 3.92 | 5.53 | |
| 10 | 19/0.61 | 3.05 | 1.15 | 5.36 | 3.476 | |
| 8 | 19/0.75 | 3.75 | 1.55 | 6.85 | 2.16 | 100/328 |
| 6 | 266/0.254 | 5.52 | 1.55 | 8.62 | 1.362 | |
| 4 | 420/0.254 | 6.63 | 1.55 | 9.73 | 0.8559 | |
| 2 | 655/0.254 | 8.75 | 1.55 | 11.85 | 0.5384 | |
| 1 | 338/0.4 | 10 | 2.03 | 14.06 | 0.4268 | 50/164 |
Our Product Range
Applications
Company Profile
Global Client Network
Industry Exhibitions
Quality Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 27 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certifications.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment types: T/T, L/C, PayPal, Western Union, Cash.
