0.08mm Super Soft Silicone Wire 600V 200C UL3512 Tinned Copper Hybrid Battery Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper Wire | Insulation Material | Rubber |
|---|---|---|---|
| Rated Voltage | 600V | Conductor Type | Tinned Copper |
| Insulation Type | Silicone Rubber | Max Conductor Resistance | 40.1 Ω/KM (0.50mm²) |
| Unit Length | 305M (1000FT) | Conductor Diameter | 0.95mm (0.50mm²) |
| Insulation Thickness | 0.78mm | Cable Diameter | 2.51mm (0.50mm²) |
| AWG Sizes | 2AWG, 3AWG, 4AWG, 6AWG, 8AWG, 10AWG, 12AWG, 16AWG | Temperature Rating | 200°C |
| Standard Compliance | UL3512, UL 758 | Conductor Construction | 20/0.18 (0.50mm²) |
| Available Colors | Optional | ||
| Highlight | 0.08mm Silicone Wire,600V Silicone Insulated Wire,200C Silicone Rubber Wire |
||
Product Description

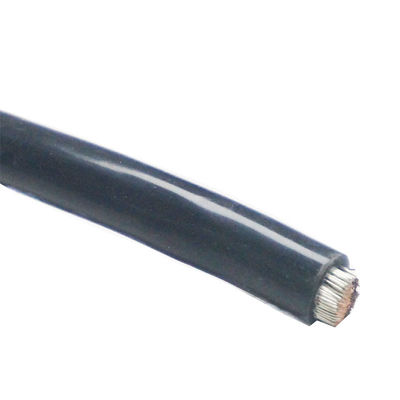

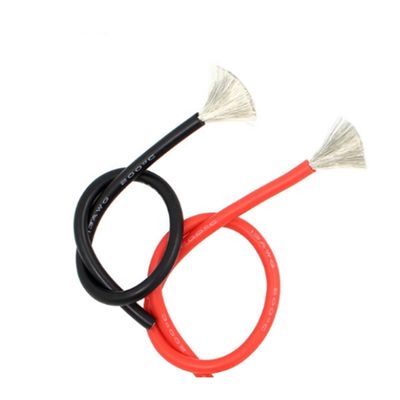

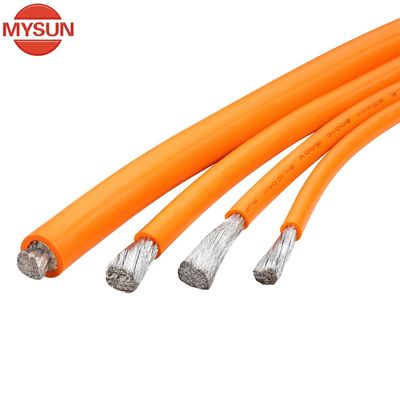

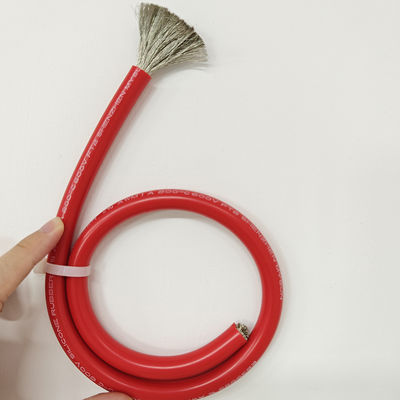

0.08 Super Soft Silicone Wire 2AWG-16AWG UL3512 600V 200°C Hybrid Battery Cable
Premium silicone wire with superior flexibility and high temperature resistance, ideal for battery applications and demanding industrial environments.
Technical Specifications
| CONDUCTOR | INSULATION | MAX.COND RESISTANCE (Ω/KM) | UNIT LENGTH (M)(FT) | |||
|---|---|---|---|---|---|---|
| SECTION(m㎡) | CONSTRUCTION (NO./mm) | DIAMETER (mm) | NOMINAL THICKNESS (mm) | DIAMETER (mm) | ||
| 0.50 | 20/0.18 | 0.95 | 0.78 | 2.51 | 40.1 | 305(1000) |
| 0.75 | 30/0.18 | 1.17 | 0.78 | 2.73 | 26.7 | 305(1000) |
| 1.00 | 40/0.18 | 1.30 | 0.78 | 2.86 | 20 | 305(1000) |
| 1.25 | 50/0.18 | 1.50 | 0.78 | 3.06 | 14.35 | 305(1000) |
| 1.50 | 30/0.25 | 1.60 | 0.78 | 3.16 | 13.7 | 305(1000) |
| 2.00 | 41/0.254 | 1.85 | 0.78 | 3.41 | 8.78 | 305(1000) |
| 2.50 | 50/0.25 | 2.06 | 0.78 | 3.62 | 7.16 | 305(1000) |
| 3.00 | 60/0.25 | 2.30 | 0.78 | 3.86 | 6.5 | 305(1000) |
| 4.00 | 56/0.30 | 2.62 | 0.78 | 4.18 | 4.7 | 305(1000) |
Quality Certifications
Why Choose Our Silicone Wires
- 20 years experience in manufacturing high temperature cables/wires
- ISO9001, ISO14001 and IATF14969 certified quality management
- UL, cUL, CSA, VDE, CCC, ROHS, REACH certified products
- Free samples available for in-stock items
- One week delivery for standard orders
- Multiple payment options: T/T, Western Union, L/C
- Strong R&D team for product development and testing
- One-stop purchasing convenience
- Responsive after-sale technical support
Frequently Asked Questions
Do you accept partial shipment?
Yes, partial shipment is accepted. However, the freight cost will be the customer's responsibility.
What is your policy for defective products?
If you receive defective cables, please provide details including quantity, photos, and labels. After confirmation, replacements will be shipped with your next order.
Can I order below your MOQ?
We can accommodate orders below MOQ if the item is in stock. For out-of-stock items, quantities close to MOQ may be accepted. Significantly smaller quantities will be treated as sample orders with adjusted pricing.
