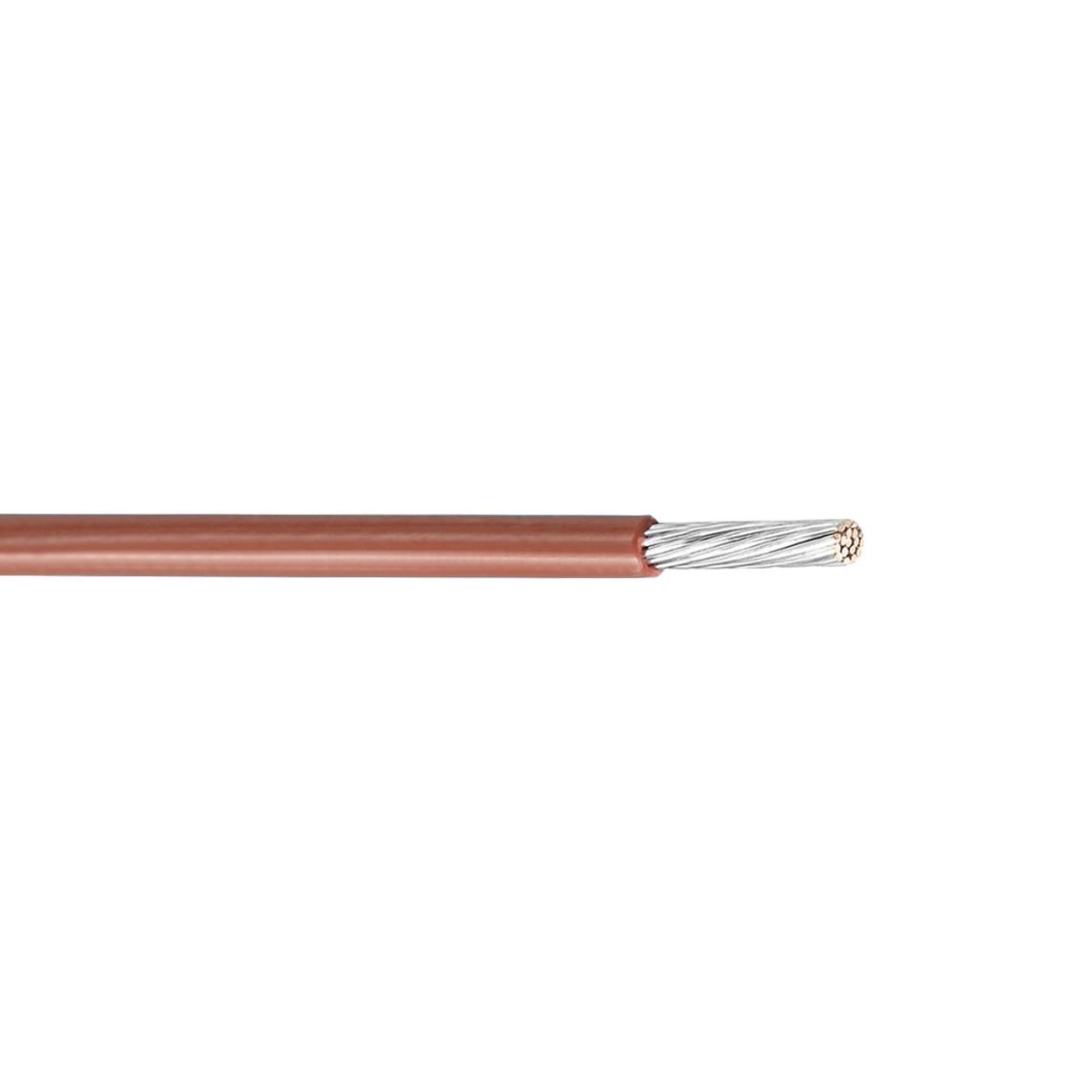

Single Conductor 4AWG UL1726 PFA Insulated Wire 300V 250C

Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL1726
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material PFA
Conductor Material Tinned Copper Type Insulated

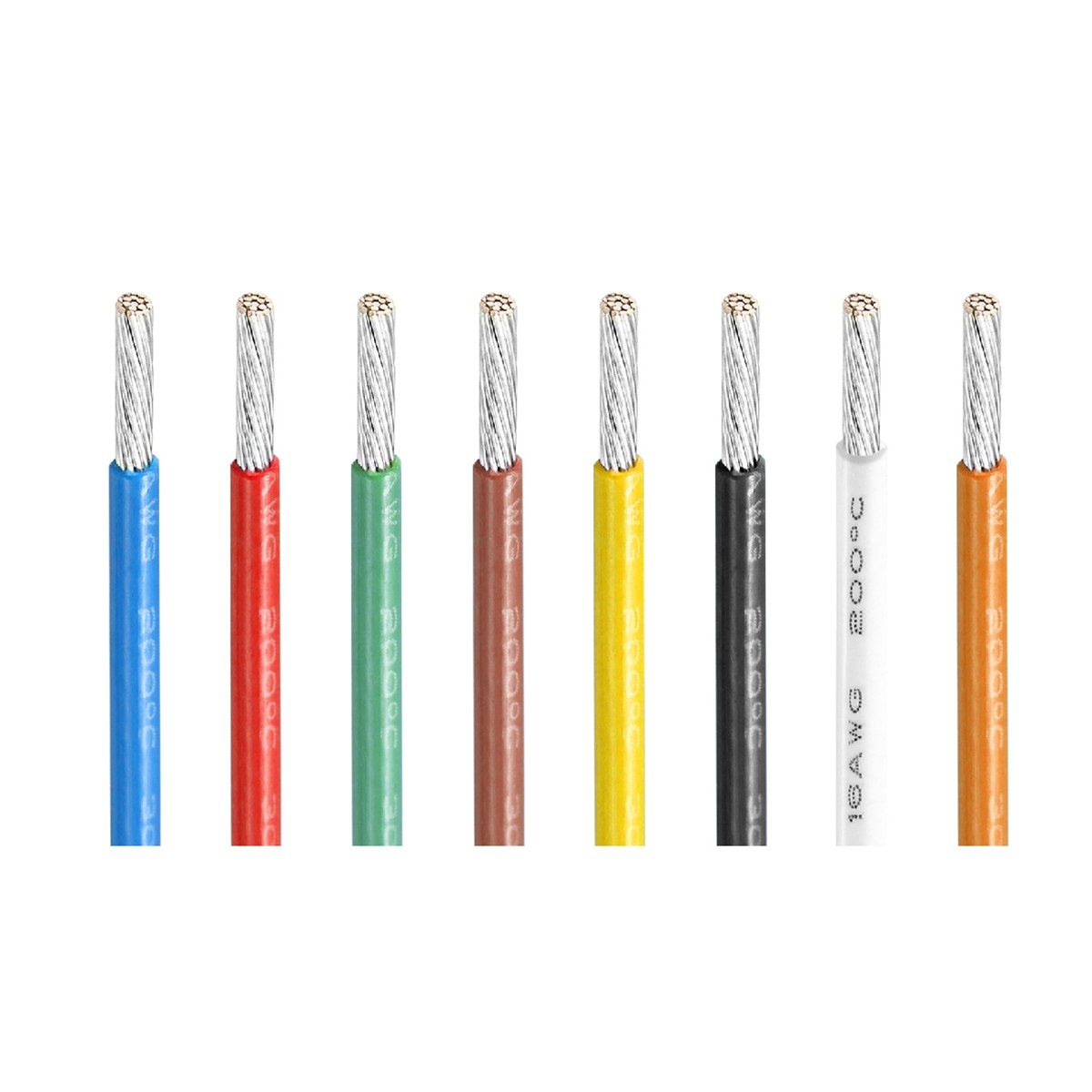

Color Red,Black,blue,yellow,green Rated Voltage 250V
Cross Section 4AWG Core Single

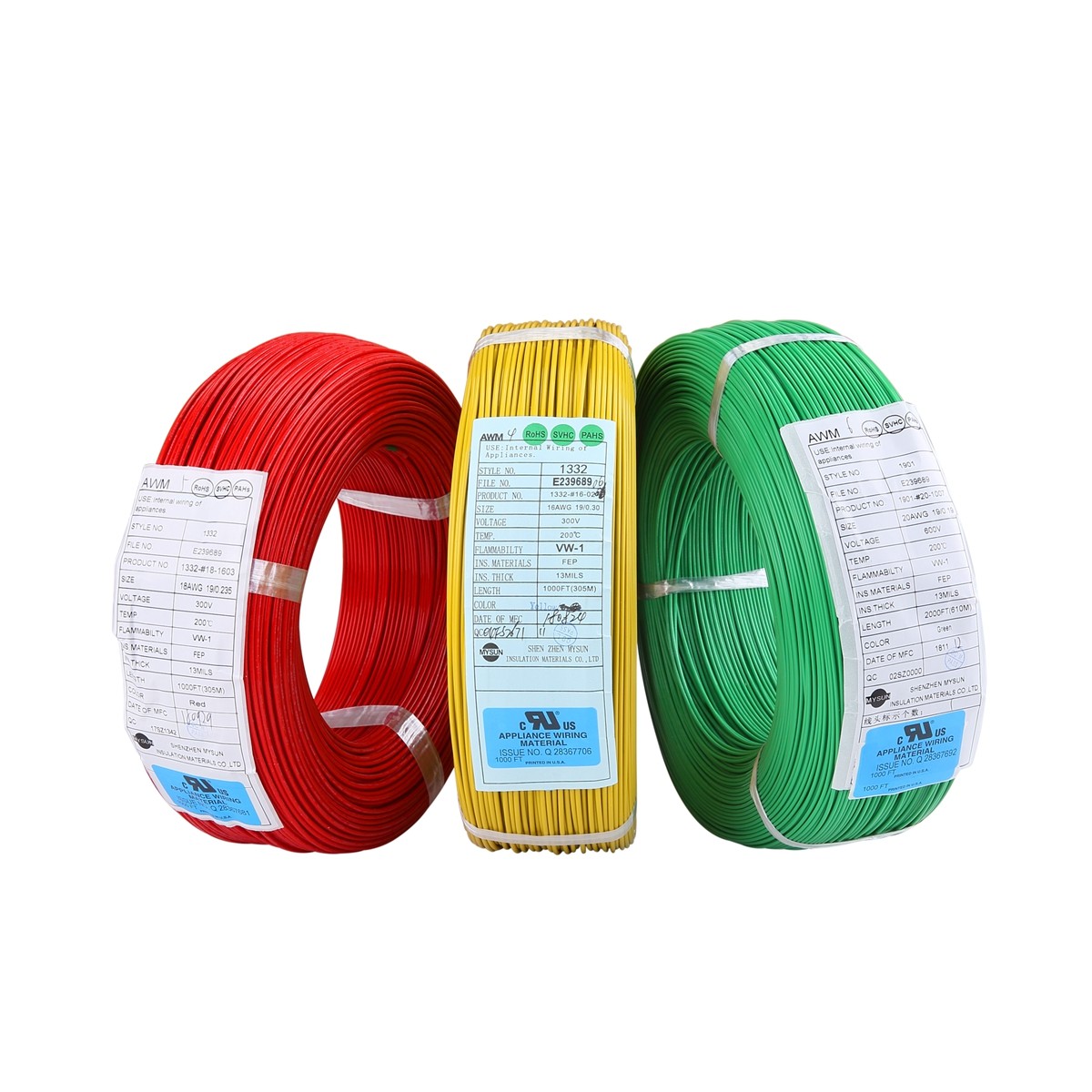

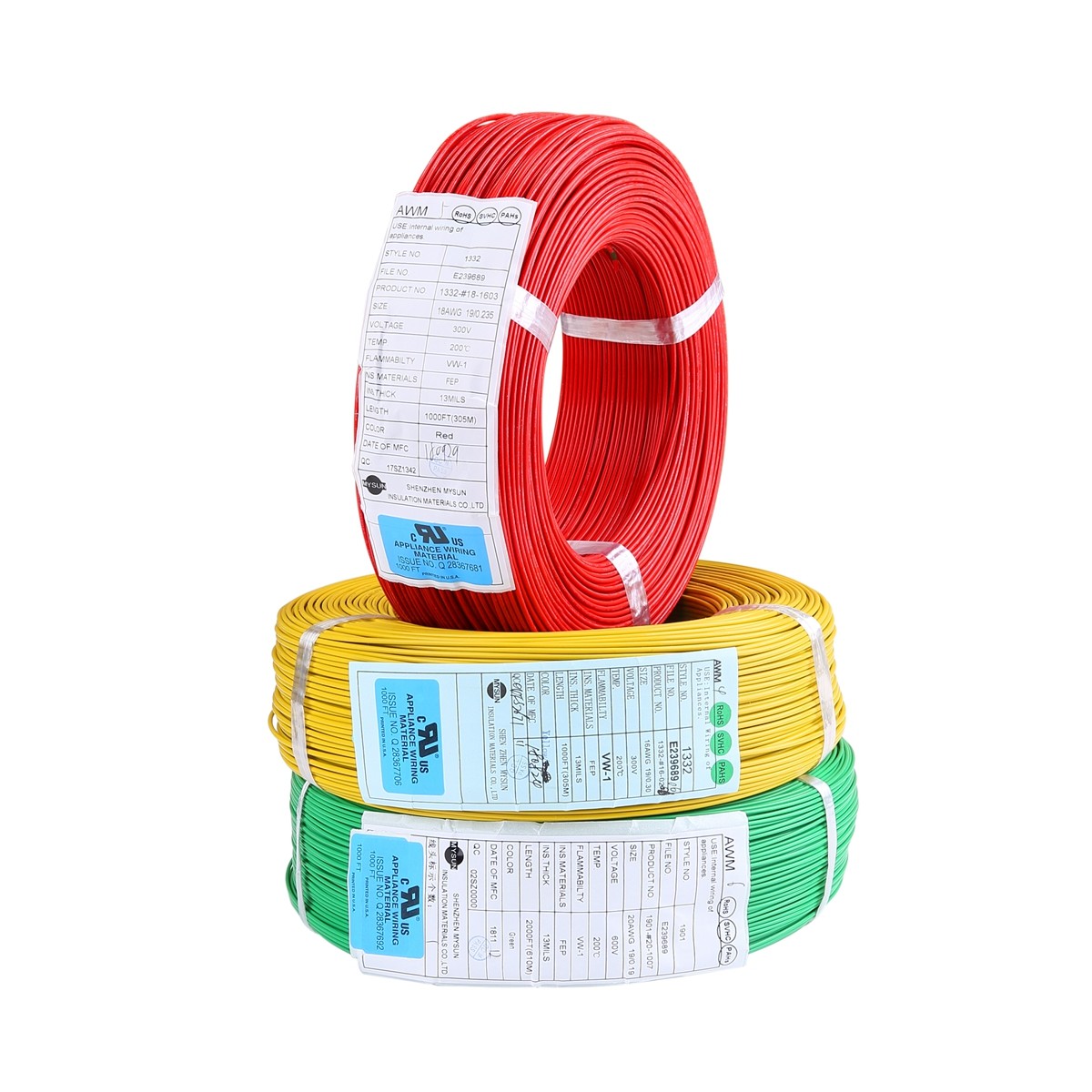

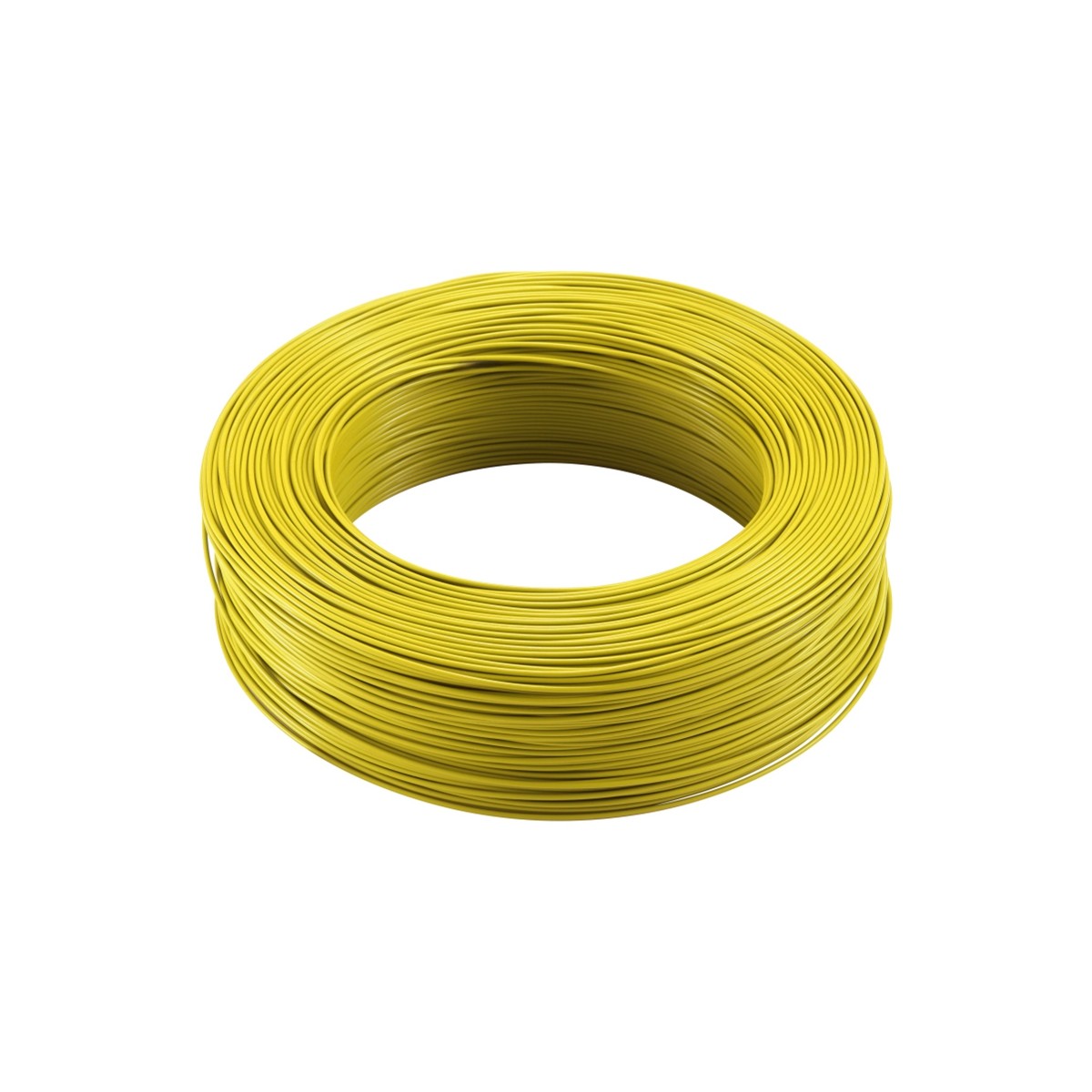

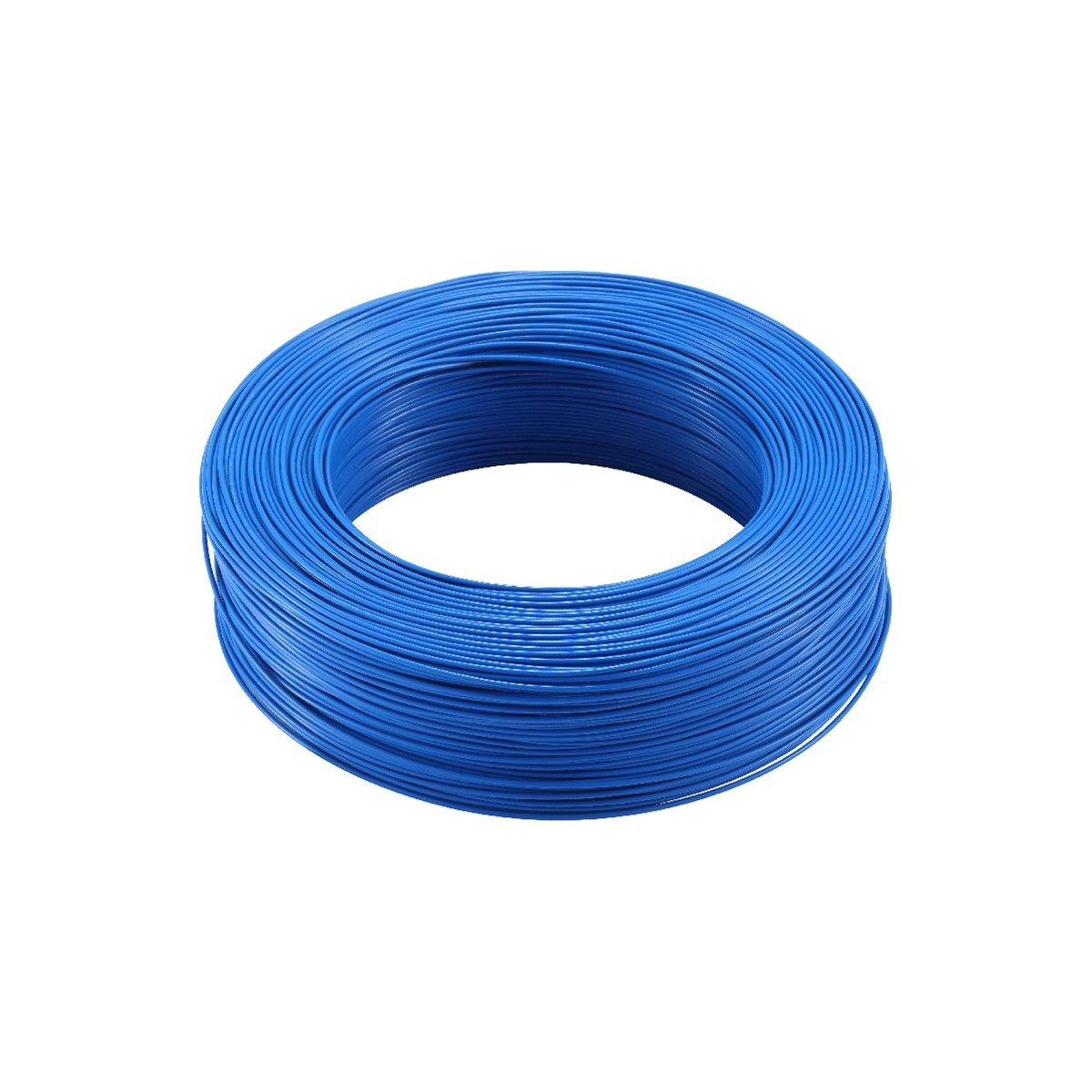

Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 250 Degree
High Light

UL1726 PFA Insulated Wire

,

4AWG PFA Insulated Wire

,

250C Tinned Copper Insulated Wire

Leave a Message
Product Description

Mysun PFA High Temperature Wire has the following characteristics:

  • Very Good Mechanical Strength and Abrasion Resistance
  • Excellent Electrical Insulating Properties
  • Excellent Thermal Stability
  • Resistant to Chemicals and Solvents
  • Heat, Age, & Ozone Resistant
  • Good Flexibility
  • Thin Walls for Weight and Space Savings
  • Good Lubricity (low coefficient of friction)

Suitable for use as internal wiring in appliances and electronic equipment. This wire meets UL Style 1726.

Description: Single conductor stranded nickel plated copper insulated with extruded PFA insulation.

Operating Temperature: -65°C to +250°C

Voltage Rating: 300 Volts UL

This series is RoHS compliant.



Conductor Insulation Max Cond resistance
(ohms/m)
Unit length
(m)(F)
Size Construction Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm)
28 7/0.12 0.36 0.35 1.08 239 610/2000
26 7/0.16 0.48 0.35 1.18 150 610/2000
24 7/0.20 0.60 0.35 1.30 94.2 610/2000
22 19/0.15 0.75 0.35 1.45 59.4 305/1000
20 19/0.19 0.93 0.35 1.63 36.7 305/1000
18 19/0.235 1.17 0.35 1.87 23.2 305/1000
16 19/0.30 1.50 0.35 2.20 14.6 305/1000
14 19/0.37 1.85 0.35 2.55 8.96 305/1000
12 19/0.47 2.35 0.35 3.05 5.64 305/1000
10 37/0.43 3.00 0.35 3.70 3.55 305/1000
8 37/0.54 3.78 0.51 4.80 2.23 order
7 37/0.60 4.20 0.51 5.22 1.77
6 37/0.68 4.76 0.51 5.78 1.41
5 37/0.76 5.32 0.80 6.92 1.12
4 37/0.86 6.02 0.80 7.62 0.89
3 7/2.21 6.63 0.80 8.23 0.71
2 7/2.48 7.44 0.80 9.04 0.56
1 7/2.78 8.34 1.20 10.74 0.427
0 7/3.20 9.60 1.20 12.00 0.337
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.212
4/0 7/4.42 13.26 1.20 15.66 0.168
