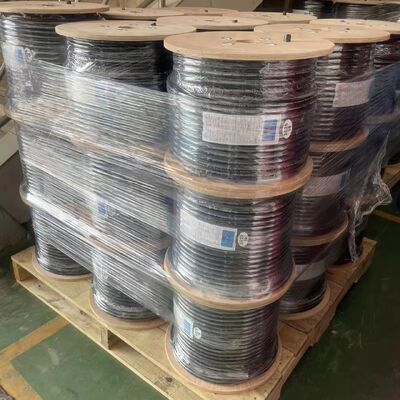

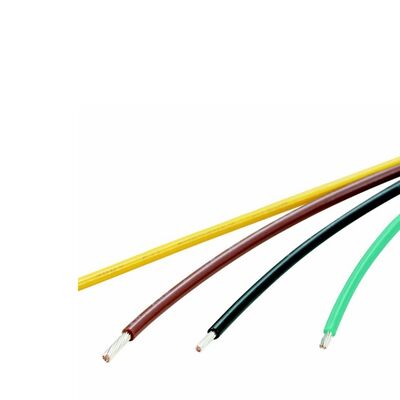

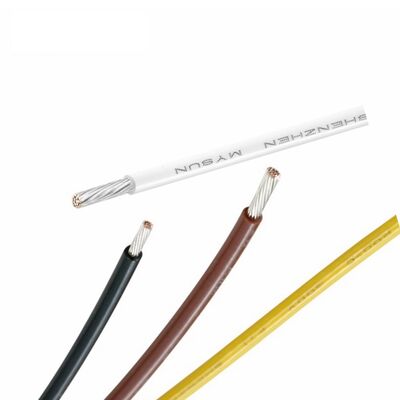

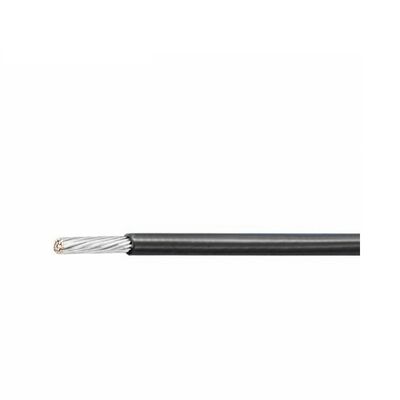

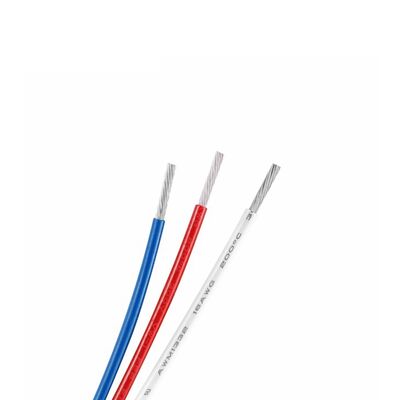

CQC Certified FEP Wire with GB/T38296-2019 Standard for UAV Motor Generator and Medical Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper | Diameter | 0.051mm2, 0.08mm2, 0.13mm2, 0.21mm2, 0.32mm2, 0.40mm2, 0.52mm2, 0.75mm2, 0.82mm2, 1.00mm2, 1.31mm2, 1.50mm2, 2.08mm2, 2.50mm2, 3.31mm2, 4.00mm2, 5.26mm2, 6.00mm2, 8.37mm2, 10mm2, 13.30mm2, 16.00mm2 |
|---|---|---|---|
| Insulation Material | FEP | Rated Voltage | 600V |
| Conductor Type | Solid | Shape | Round |
| Temperature Rating | 150C, 200C, 200℃ | Type | Insulated |
| Unit Length | 305/1000 | Max Conductor Resistance | 381, 239, 150, 94.2, 59.4, 46.6, 37.4, 24.8, 23.5, 18.7, 14.7, 12.5, 9.22, 7.47, 5.75, 4.68, 3.62, 3.12, 2.23, 1.87, 1.41, 1.17 Ω/KM |
| Nominal Thickness | 0.510mm | Insulation Diameter | 1.32mm, 1.40mm, 1.50mm, 1.62mm, 1.80mm, 1.90mm, 2.00mm, 2.15mm, 2.20mm, 2.40mm, 2.60mm, 2.85mm, 2.95mm, 3.10mm, 3.45mm, 4.30mm, 4.60mm, 4.80mm, 5.50mm, 5.90mm, 6.80mm, 7.20mm |
| Conductor Diameter | 0.30mm, 0.38mm, 0.48mm, 0.60mm, 0.78mm, 0.85mm, 0.96mm, 1.12mm, 1.17mm, 1.35mm, 1.52mm, 1.60mm, 1.89mm, 2.08mm, 2.39mm, 2.70mm, 3.00mm, 3.25mm, 3.90mm, 4.30mm, 5.20mm, 5.60mm | Construction | 7/0.10, 7/0.127, 7/0.16, 19/0.12, 19/0.15, 19/0.17, 19/0.19, 19/0.225, 19/0.235, 19/0.26, 19/0.30, 19/0.32, 19/0.375, 19/0.41, 19/0.475, 19/0.52, 19/0.60, 19/0.64, 68/0.40, 37/0.59, 133/0.36, 133/0.393 |
| AWG Size | 0.051, 0.08, 0.13, 0.21, 0.32, 0.40, 0.52, 0.75, 0.82, 1.00, 1.31, 1.50, 2.08, 2.50, 3.31, 4.00, 5.26, 6.00, 8.37, 10.00, 13.30, 16.00 | ||
| Highlight | GB/T38296-2019 Standard FEP Wire,UAV Motor Generator FEP Wire,Medical Equipment FEP Wire |
||
Product Description
CQC FEP Wire 600V 200°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
Specification
| CQC V048486 CQC20011252316 E-200/TX/FEP | UL1330 | Conductor | Insulation | Max. Cond Resistance (Ω/KM) | Unit length (M)(Ft) | |
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No.mm) | Diameter (mm) | Nominal thickness (mm) | Diameter (mm) | ||
| 0.051 | 7/0.10 | 0.30 | 0.510 | 1.32 | 381 | 610/2000 |
| Click Contact us Get the Best Quote | ||||||
Company Profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
- Free Sample
- Competitive Price
- High Quality Standard
- Customized Service
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
