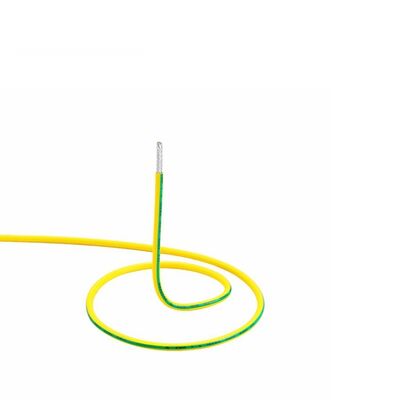

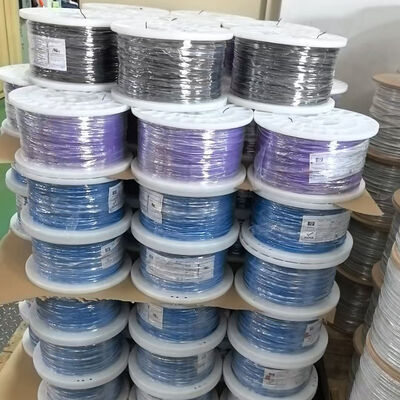

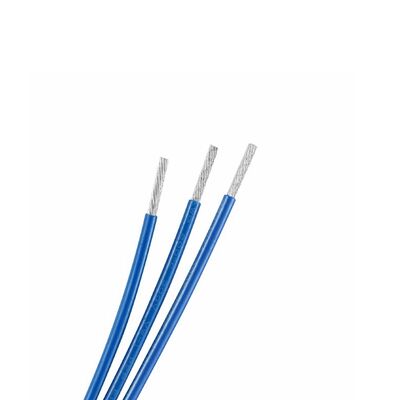

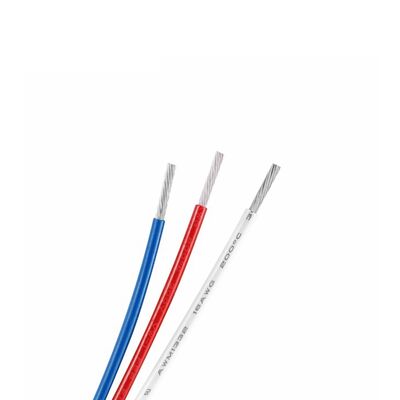

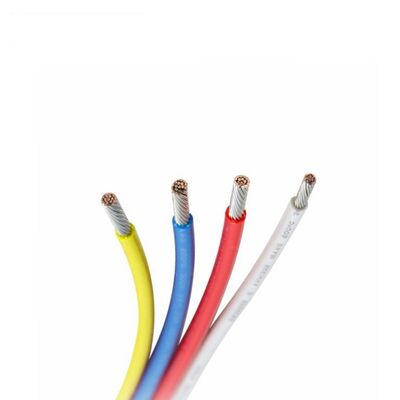

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment

  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number CQC1111.31-2020/GB/T38296-2019
Minimum Order Quantity 3050

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Tinned Copper Diameter 0.051mm2 To 16.00mm2
Insulation Material FEP Rated Voltage 300 V
Conductor Type Solid Shape Round
Temperature Rating 150°C Type Insulated
Unit Length 305/1000 M/FT Max Conductor Resistance 381 Ω/KM To 1.17 Ω/KM
Nominal Thickness 0.230mm To 0.510mm Insulation Diameter 0.80mm To 6.65mm
Construction 7/0.10 To 133/0.393 Voltage 300V
Colour All Colours
Highlight

High Temperature FEP Wire

,

Tinned Nickel Plated Copper FEP Wire

,

CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire
Leave a Message
Product Description
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 0 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 1
Specification
CQC E-150/TX/FEP Wire UL1330 Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 100/328
2.50 19/0.41 2.08 0.380 2.90 7.47 100/328
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Click Contact us Get the Best Quote
Company Profile
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 2 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 3 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 4 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 5
Our Products
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 6 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 7
Application
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 8 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 9
Our Overseas Clients
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 10 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 11
Exhibition
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 12 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 13
Certifications
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 14 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 15
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
