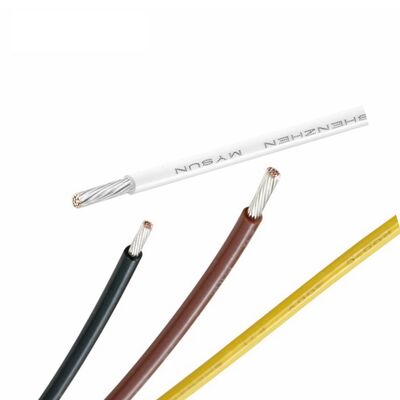

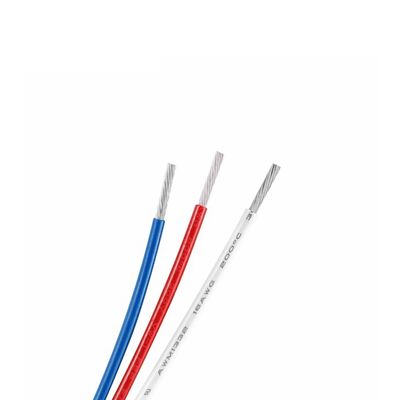

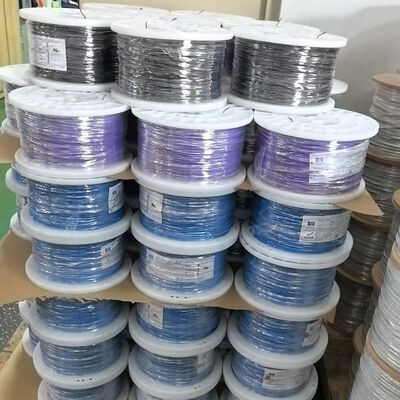

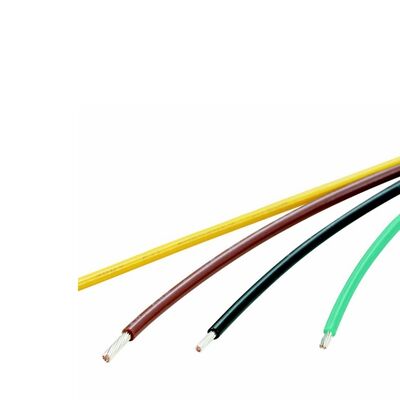

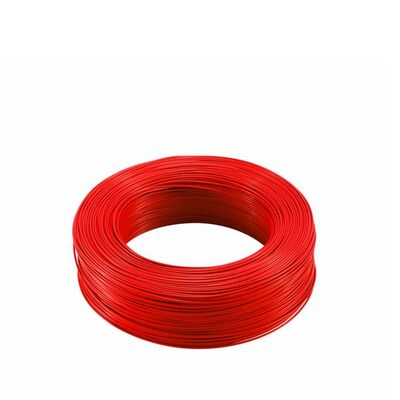

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number UL8298
Minimum Order Quantity 3050

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Tinned Copper Diameter 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG
Insulation Material PFA Rated Voltage 450V, 750V
Conductor Type Solid Shape Round
Temperature Rating 250℃ Conductor Resistance 59.78 Ω/KM (0.34mm2), 40.1 Ω/KM (0.50mm2), 26.7 Ω/KM (0.75mm2), 20 Ω/KM (1.00mm2), 14.35 Ω/KM (1.25mm2), 13.7 Ω/KM (1.50mm2), 8.78 Ω/KM (2.00mm2), 7.16 Ω/KM (2.50mm2)
Unit Length 305/1000 M/FT Conductor Construction 7/0.15 (0.34mm2), 7/0.19 (0.50mm2), 19/0.23 (0.75mm2), 19/0.26 (1.00mm2), 19/0.29 (1.25mm2), 19/0.32 (1.50mm2), 19/0.37 (2.00mm2), 19/0.41 (2.50mm2)
Insulation Thickness 0.305mm (0.34-1.50mm2), 0.350mm (2.00-2.50mm2) Wire Diameter 1.36mm (0.34mm2), 1.56mm (0.50mm2), 1.78mm (0.75mm2), 1.91mm (1.00mm2), 2.16mm (1.25mm2), 2.31mm (1.50mm2), 2.55mm (2.00mm2), 2.76mm (2.50mm2)
Conductor Diameter 0.75mm (0.34mm2), 0.95mm (0.50mm2), 1.17mm (0.75mm2), 1.31mm (1.00mm2), 1.46mm (1.25mm2), 1.61mm (1.50mm2), 1.85mm (2.00mm2), 2.06mm (2.50mm2) Voltage Rating 450/750V
Insulation Type PFA
Highlight

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
Leave a Message
Product Description
UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3
Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
