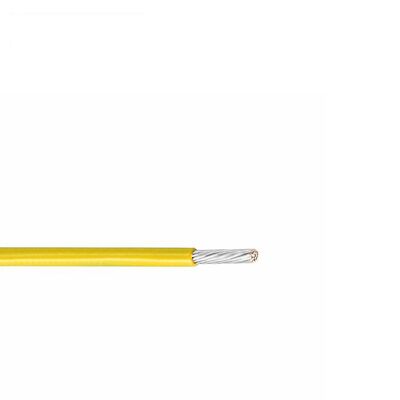

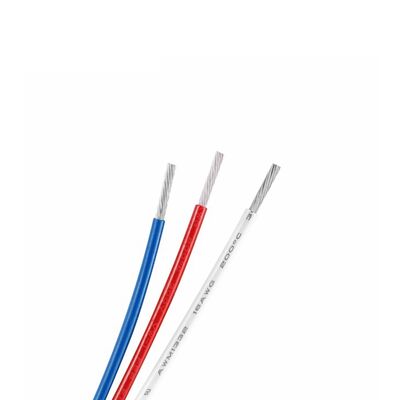

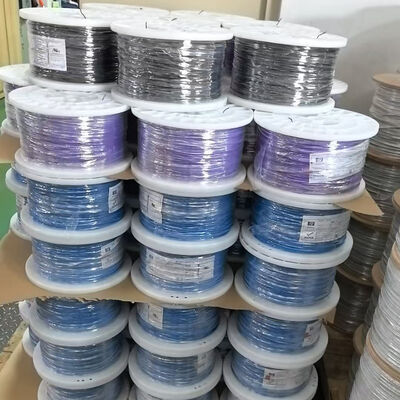

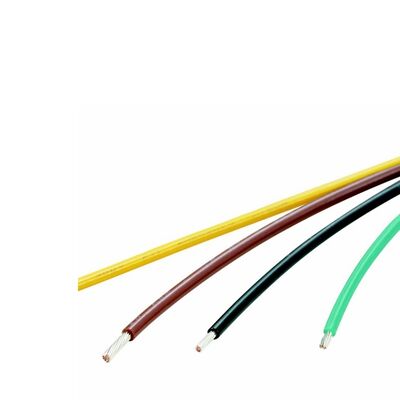

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number V048486 CQC20011252316 E(z)-200/TX/FEP
Minimum Order Quantity 3050
Product Details
Conductor Material Tinned Copper Diameter 0.051mm2, 0.08mm2, 0.13mm2, 0.21mm2, 0.32mm2, 0.40mm2, 0.52mm2, 0.75mm2, 0.82mm2, 1.00mm2, 1.31mm2, 1.50mm2, 2.08mm2, 2.50mm2, 3.31mm2, 4.00mm2, 5.26mm2, 6.00mm2, 8.37mm2, 10mm2, 13.30mm2, 16.00mm2
Insulation Material FEP Rated Voltage 300 V
Conductor Type Solid Shape Round
Temperature Range 150C, 200℃ Type Insulated
Unit Length 305/1000 Max Conductor Resistance 381 Ω/KM, 239 Ω/KM, 150 Ω/KM, 94.2 Ω/KM, 59.4 Ω/KM, 46.6 Ω/KM, 37.4 Ω/KM, 24.8 Ω/KM, 23.5 Ω/KM, 18.7 Ω/KM, 14.7 Ω/KM, 12.5 Ω/KM, 9.22 Ω/KM, 7.47 Ω/KM, 5.75 Ω/KM, 4.68 Ω/KM, 3.62 Ω/KM, 3.12 Ω/KM, 2.23 Ω/KM, 1.87 Ω/KM, 1.41 Ω/KM, 1.17 Ω/KM
Nominal Thickness 0.230mm, 0.380mm, 0.510mm Insulation Diameter 0.80mm, 0.85mm, 0.95mm, 1.10mm, 1.20mm, 1.35mm, 1.50mm, 1.60mm, 1.95mm, 2.15mm, 2.30mm, 2.40mm, 2.70mm, 2.90mm, 3.20mm, 3.50mm, 3.80mm, 4.00mm, 4.95mm, 5.35mm, 6.25mm, 6.65mm
Conductor Diameter 0.30mm, 0.38mm, 0.48mm, 0.60mm, 0.78mm, 0.85mm, 0.96mm, 1.12mm, 1.17mm, 1.35mm, 1.52mm, 1.60mm, 1.89mm, 2.08mm, 2.39mm, 2.70mm, 3.00mm, 3.25mm, 3.90mm, 4.30mm, 5.20mm, 5.60mm Construction 7/0.10, 7/0.127, 7/0.16, 19/0.12, 19/0.15, 19/0.17, 19/0.19, 19/0.225, 19/0.235, 19/0.26, 19/0.30, 19/0.32, 19/0.375, 19/0.41, 19/0.475, 19/0.52, 19/0.60, 19/0.64, 68/0.40, 37/0.59, 133/0.36, 133/0.393
Highlight

Flame Retardant FEP Wire

,

Nickel Plated Copper FEP Wire

,

UAV Robot Generator Wire
Leave a Message
Product Description
Flame Retardant FEP Wire 300V 200°C Nickel Plated Copper
Flame Retardant FEP Wire product image Flame Retardant FEP Wire product close-up
Product Specifications
V048486 CQC20011252316 E(z)-200/TX/FEP Wire UL1330
Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 305/1000
2.50 19/0.41 2.08 0.380 2.90 7.47 305/1000
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Contact Us for Best Quote
Company Profile
Company profile image Company facilities Company team Company production line
Our Products
Our product range Product showcase
Applications
Wire applications in industry Wire usage examples
Our Overseas Clients
International client network Global partnerships
Exhibitions
Trade show participation Industry exhibition booth
Certifications
Industry certifications Quality standards compliance
Frequently Asked Questions
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?
  • Free sample
  • Competitive price
  • High quality standard
  • Customized service
4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.

Accepted Payment Currency: USD, EUR, CNY.

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
