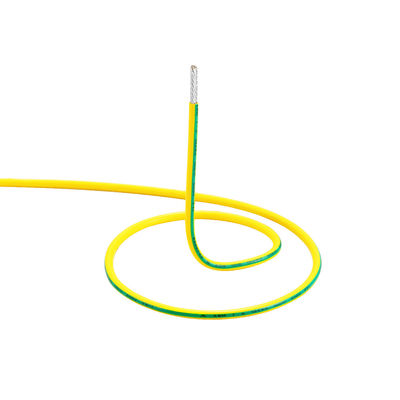

UL1726 4/0AWG Low Voltage Strand Tinned Copper PFA Insulated Wire red white blue black

Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL1726
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day
Product Details
Conductor Type Stranded Insulation Material PFA
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 250V
Cross Section 4/0AWG Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 250 Degree
High Light

Copper Conductor Flexible Insulated Wire

,

Thermoplastic Silicone Rubber Cables

,

UL3122 Silicone Rubber Cables

Leave a Message
Product Description

Mysun PFA High Temperature Wire has the following characteristics:

  • Very Good Mechanical Strength and Abrasion Resistance
  • Excellent Electrical Insulating Properties
  • Excellent Thermal Stability
  • Resistant to Chemicals and Solvents
  • Heat, Age, & Ozone Resistant
  • Good Flexibility
  • Thin Walls for Weight and Space Savings
  • Good Lubricity (low coefficient of friction)

Suitable for use as internal wiring in appliances and electronic equipment. This wire meets UL Style 1726.

Description: Single conductor stranded nickel plated copper insulated with extruded PFA insulation.

Operating Temperature: -65°C to +250°C

Voltage Rating: 300 Volts UL

This series is RoHS compliant.



Conductor Insulation Max Cond resistance
(ohms/m)
Unit length
(m)(F)
Size Construction Diameter Nominal Thickness Diameter
(AWG) (NO./mm) (mm) (mm) (mm)
28 7/0.12 0.36 0.35 1.08 239 610/2000
26 7/0.16 0.48 0.35 1.18 150 610/2000
24 7/0.20 0.60 0.35 1.30 94.2 610/2000
22 19/0.15 0.75 0.35 1.45 59.4 305/1000
20 19/0.19 0.93 0.35 1.63 36.7 305/1000
18 19/0.235 1.17 0.35 1.87 23.2 305/1000
16 19/0.30 1.50 0.35 2.20 14.6 305/1000
14 19/0.37 1.85 0.35 2.55 8.96 305/1000
12 19/0.47 2.35 0.35 3.05 5.64 305/1000
10 37/0.43 3.00 0.35 3.70 3.55 305/1000
8 37/0.54 3.78 0.51 4.80 2.23 order
7 37/0.60 4.20 0.51 5.22 1.77
6 37/0.68 4.76 0.51 5.78 1.41
5 37/0.76 5.32 0.80 6.92 1.12
4 37/0.86 6.02 0.80 7.62 0.89
3 7/2.21 6.63 0.80 8.23 0.71
2 7/2.48 7.44 0.80 9.04 0.56
1 7/2.78 8.34 1.20 10.74 0.427
0 7/3.20 9.60 1.20 12.00 0.337
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.212
4/0 7/4.42 13.26 1.20 15.66 0.168
