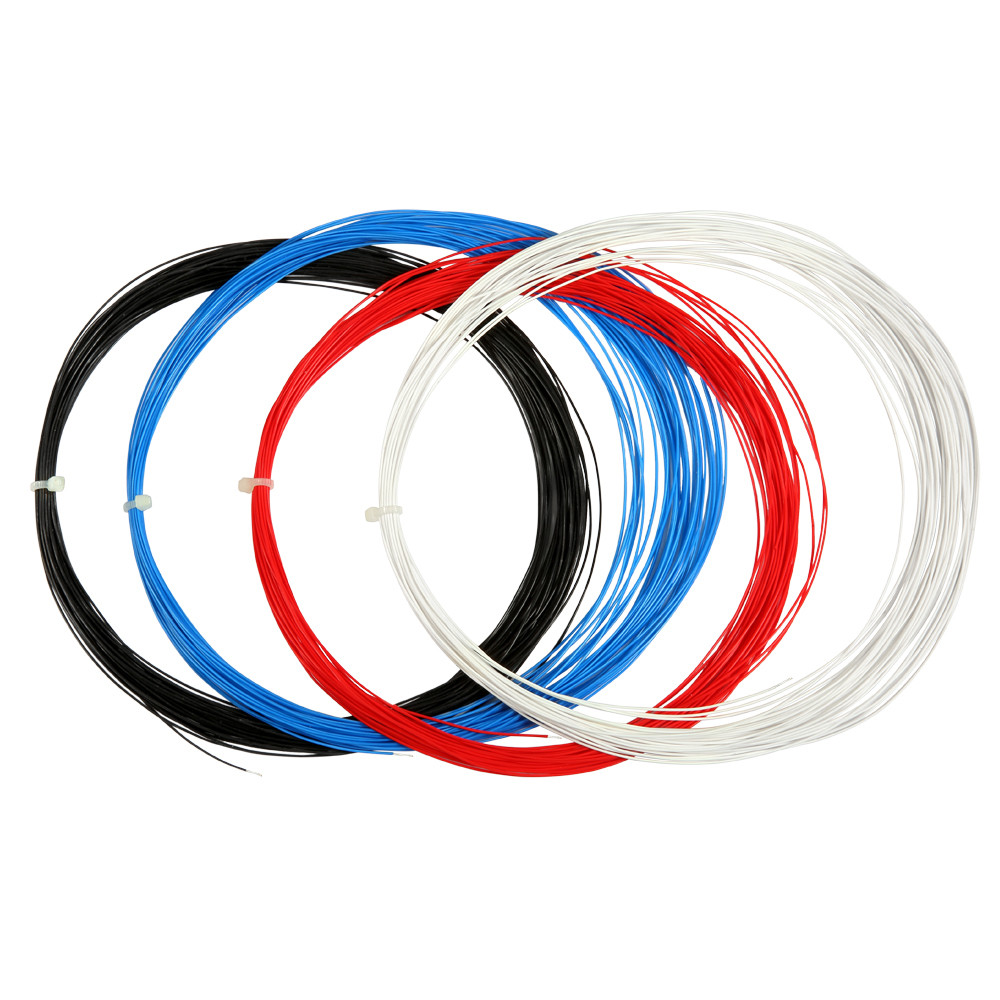

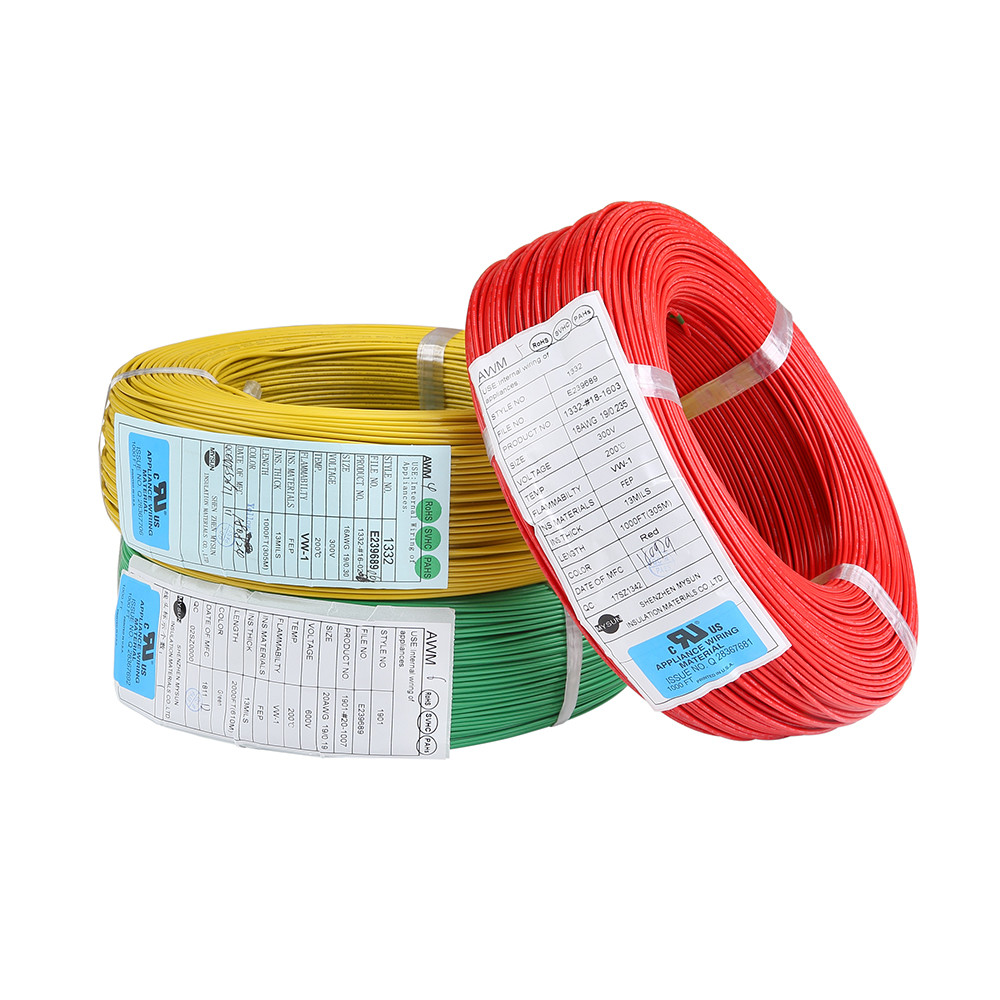

UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor

  • UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor
  • UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor
  • UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL1330
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Accept Customized Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600V Rated Temperature 200C
Size 1-30AWG Conductor Tinned Copper
Standard UL758 Insulation FEP
Type Insulated Max.Cond Resistance 0.168-381 Ω/km
High Light

Stranded Conductor FEP Insulated Wire

,

UL1330 600V FEP Insulated Wire

,

200C Motor Tinned Copper Wire
Leave a Message
Product Description

Specifications:

Nominal voltage:600V

Temperature range: 200℃

Standard: UL1330

Insulation: Silicone Rubber + Fiber Glass

Conductor: FEP





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 0



Our Product





UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 1



Product Description



UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 2

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 3



 Product Parameter



Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.1
0.3
0.5
1.3
361
610/2000
28
7/0.127
0.36
1.38
227
26
7/0.16
0.48
1.48
143
24
7/0.20
0.6
1.6
89.3
22
19/0.15
0.75
1.75
56.4
305/1000
20
19/0.185
0.93
1.93
35.2
18
19/0.235
1.17
0.5
2.17
22.2
16
19/0.30
1.5
2.5
14
14
19/0.37
1.85
2.85
8.78
12
19/0.47
2.35
3.35
5.53
10
37/.43
3
4
3.476
8
37/0.54
3.78
0.76
5.3
2.16
customized
7
37/0.60
4.2
5.72
1.716
6
37/0.68
4.76
6.28
1.361
5
37/0.76
5.32
6.84
1.079
4
37/0.86
6.02
7.54
0.8859
3
7/2.21
6.63
8.15
0.6788
2
7/2.48
7.44
8.96
0.5384
1
7/2.78
8.34
1.14
10.62
0.4268
0
7/3.20
9.6
11.88
0.3367
2/0
7/3.57
10.71
12.99
0.267
3/0
7/3.94
11.82
14.1
0.2119
4/0
7/4.42
13.26
15.54
0.168


Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 4

UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 5



Company Introduction



Mysun Dongguan factory
Employee: 183
Area: 18000m²
Daily capacity: 2000,000m above



UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 6

UL1330 600V Stranded Conductor FEP Insulated Wire 200C Motor 7
