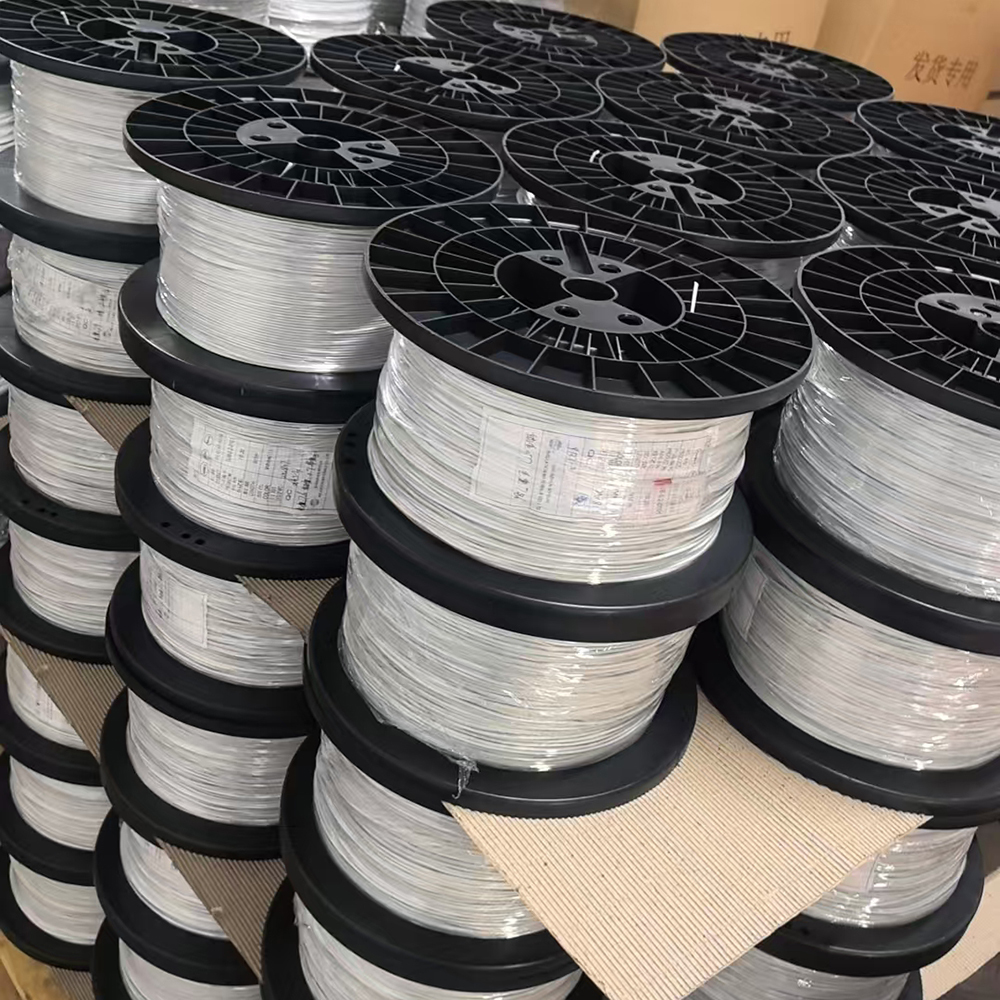

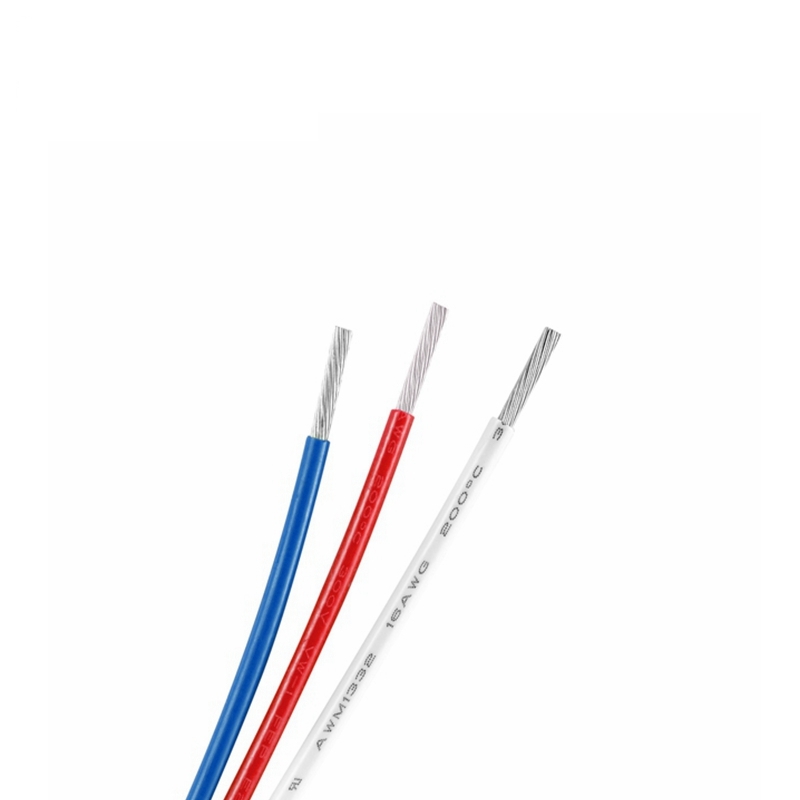

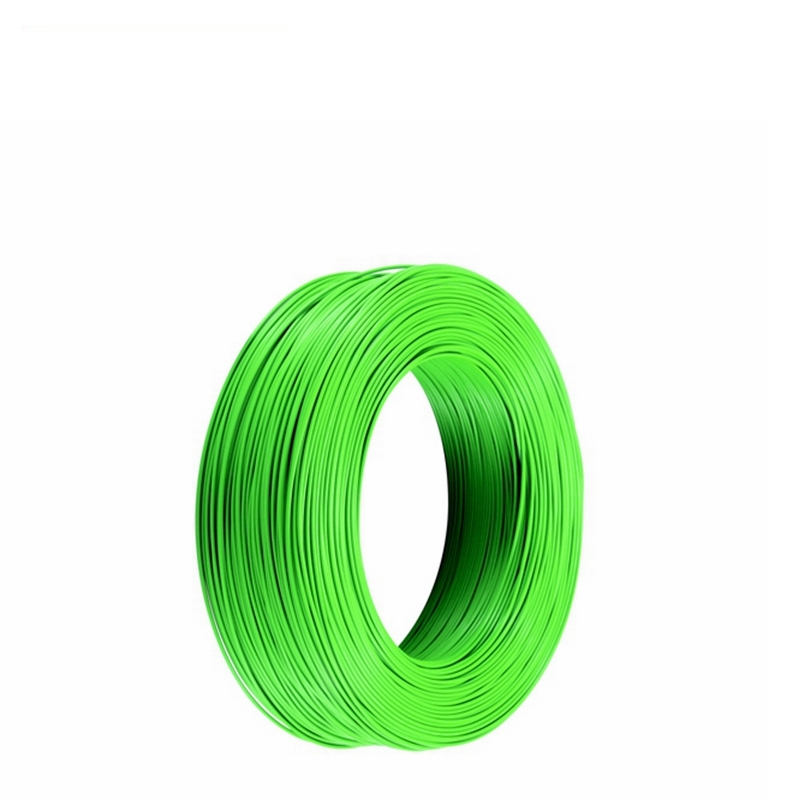

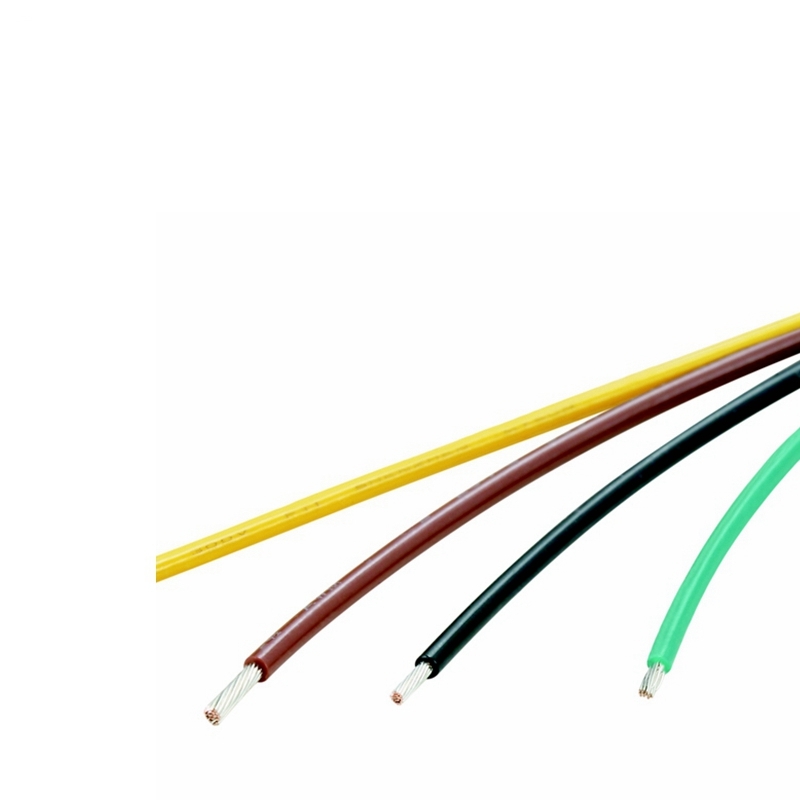

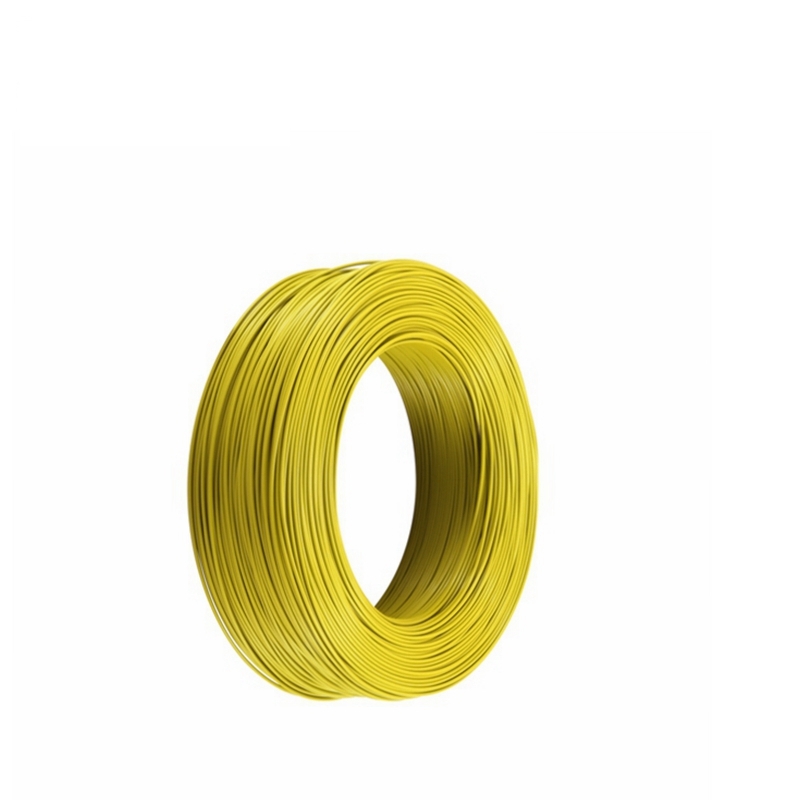

UL1330 FEP Tefzel Insulated Wire 200C 600V Tinned Copper
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Rating | 200℃ | Shape | ROUND |
|---|---|---|---|
| AWG Sizes | 12, 20, 22, 24, 8, 14, 16, 18, 6, 2, 4 | Conductor Material | Tinned Copper |
| Conductor Type | Solid | Insulation Material | FEP |
| Rated Voltage | 600V | Unit Length | 305/1000 |
| Max Resistance | See Table | Conductor Diameter | See Table |
| Insulation Thickness | See Table | Overall Diameter | See Table |
| Standard | UL758 | Voltage Rating | 600V |
| Conductor Construction | See Table | ||
| Highlight | FEP insulated wire 600V,Tefzel wire tinned copper,UL1330 wire 200C |
||
Product Description
UL1330 FEP Wire High Temperature Tefzel Insulated Wire
Product Specifications
| Attribute | Value |
|---|---|
| Temperature Rating | 200°C (392°F) |
| Shape | Round |
| Available Diameters | 2 AWG to 30 AWG (multiple sizes available) |
| Type | Insulated Wire |
| Primary Application | Medical Equipment |
| Conductor Material | Tinned Copper |
| Conductor Type | Solid |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Rated Voltage | 600V |
| Standard | UL758 |
| Available Colors | All standard colors |
| Standard Length | 305m/1000ft |
Technical Specifications
| Size (AWG) | Conductor Construction | Conductor Diameter (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | Max Conductor Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|
| 30 | 7/0.10 | 0.30 | 0.50 | 1.30 | 381 | 610/2000 |
| 28 | 7/0.12 | 0.38 | 0.50 | 1.38 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.50 | 1.48 | 150 | 610/2000 |
| 24 | 19/0.12 | 0.60 | 0.50 | 1.60 | 94.2 | 610/2000 |
| 22 | 19/0.15 | 0.75 | 0.50 | 1.75 | 59.4 | 305/1000 |
| 20 | 19/0.19 | 0.93 | 0.50 | 1.93 | 36.7 | 305/1000 |
| 18 | 19/0.235 | 1.17 | 0.50 | 2.17 | 23.2 | 305/1000 |
| 16 | 19/0.30 | 1.50 | 0.50 | 2.50 | 14.6 | 305/1000 |
| 14 | 19/0.37 | 1.85 | 0.50 | 2.85 | 8.96 | 305/1000 |
| 12 | 19/0.47 | 2.35 | 0.50 | 3.35 | 5.64 | 305/1000 |
Key Features
- High temperature resistance up to 200°C (392°F)
- FEP (Tefzel) insulation for excellent chemical and abrasion resistance
- Tinned copper conductor for superior conductivity and corrosion resistance
- UL758 certified for quality assurance
- Available in multiple AWG sizes from 2 to 30
- 600V rated for various industrial applications
- Ideal for medical equipment and other demanding environments
Frequently Asked Questions
1. Who are we?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
2. What can we provide?
We specialize in high-temperature wires and cables, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why choose us?
• Free samples available
• Competitive pricing
• High quality standards
• Customized services
• Competitive pricing
• High quality standards
• Customized services
4. What certifications do we have?
Our products are certified to UL, cUL, VDE, Reach, CE, ROHS, CCC, and CQC standards.
5. What services can we provide?
We accept various delivery terms (FOB, CIF, EXW, etc.) and payment methods (T/T, L/C, PayPal, etc.) in multiple currencies (USD, EUR, CNY).
