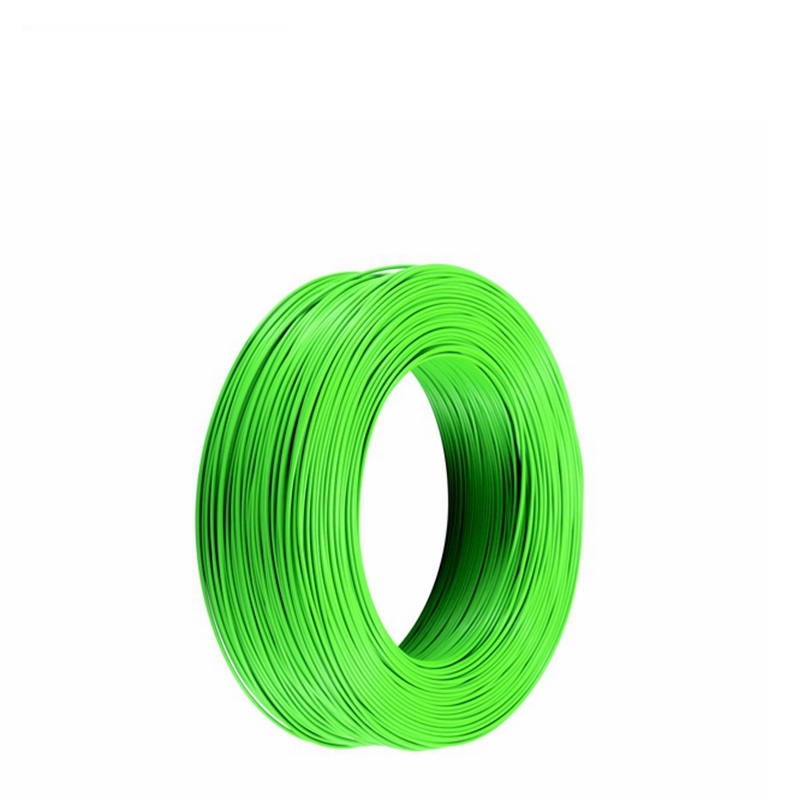

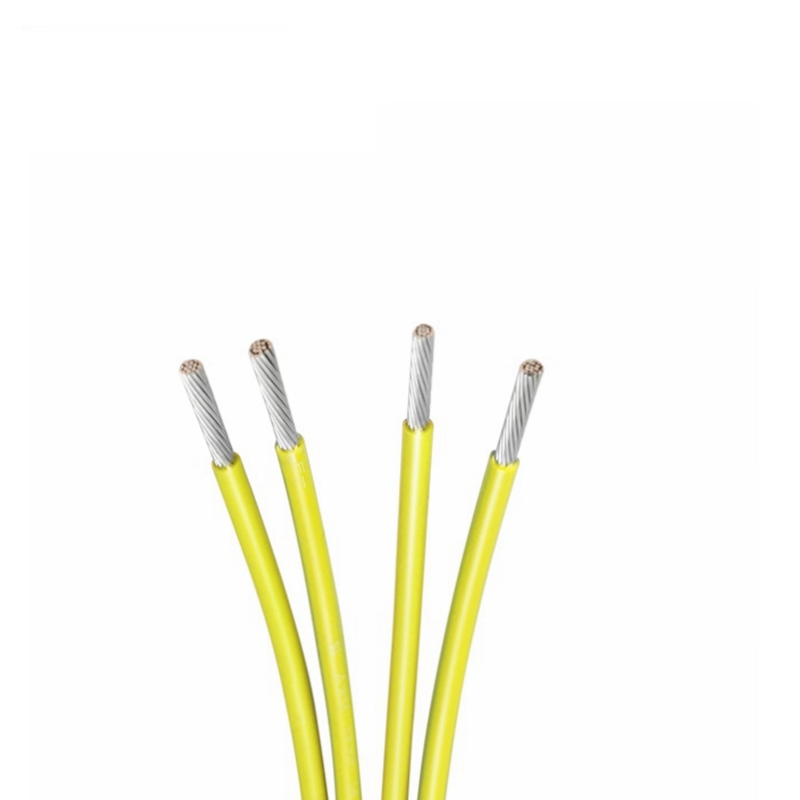

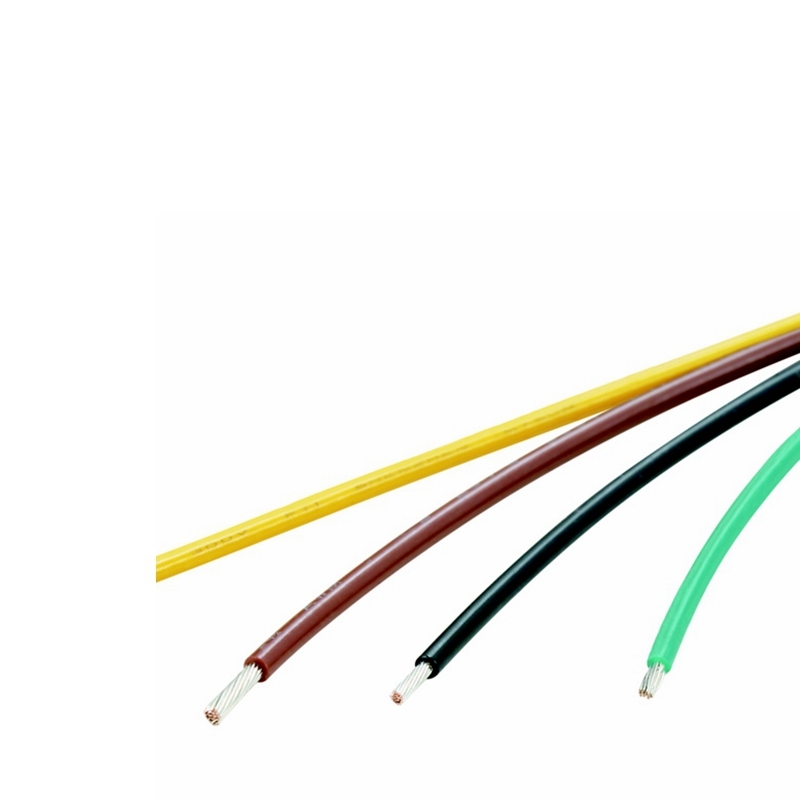

UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG

  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
  • UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number 1180
Minimum Order Quantity 305

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Rating 200°C Wire Shape ROUND
AWG Sizes 12, 20, 22, 8, 24, 14, 16, 18, 26 Conductor Material Nickel-plated/silver-plated Copper
Conductor Type Stranded Insulation Material PTFE
Rated Voltage 300V Test Voltage 3000V
Conductor Resistance 3.55-563 Ω/KM Unit Length 305m/610m Per Roll
Conductor Construction 7/0.08 To 37/0.43 Nominal Thickness 0.33-0.35mm
Insulation Diameter 0.90-3.70mm Conductor Diameter 0.24-3.00mm

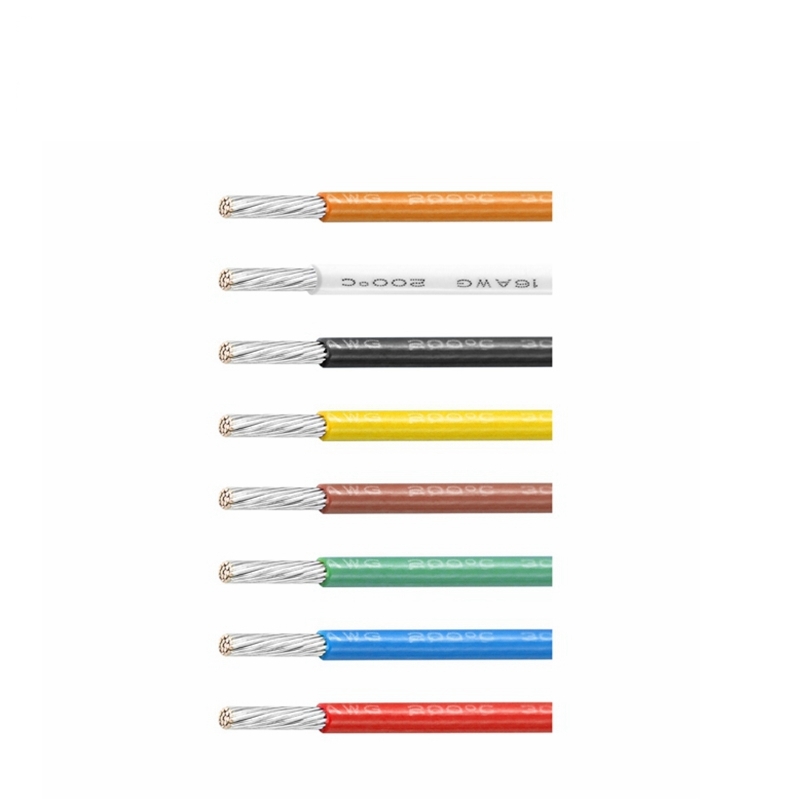

Color Options White, Black, Red, Brown, Yellow, Blue, Green, Yellow/green
Highlight

UL1180 PTFE high-temperature wire

,

FEP insulated wire 12-32 AWG

,

PTFE wire with 200C resistance
Leave a Message
Product Description
UL1180 PTFE Wire High-Temperature Resistant Tin-plated Silver-plated Copper VW-1 Tefzel Wire
Product Attributes
Attribute Value
Temperature 200°C
Shape ROUND
Diameter 12 AWG, 20 AWG, 22 AWG, 8 AWG, 24 AWG, 14 AWG, 16 AWG, 18 AWG, 26AWG
Type Insulated
Application Heating, AUTO, medical equipment, Lighting, home appliance, industrial machine etc
Conductor Material Nickel-plated / silver-plated copper wire
Conductor Type Stranded
Insulation Material PTFE
Rated voltage 300V
Color White, black, red, brown, yellow, blue, green, yellow/green
Test Voltage 3000V
Rated Temperature 200°C

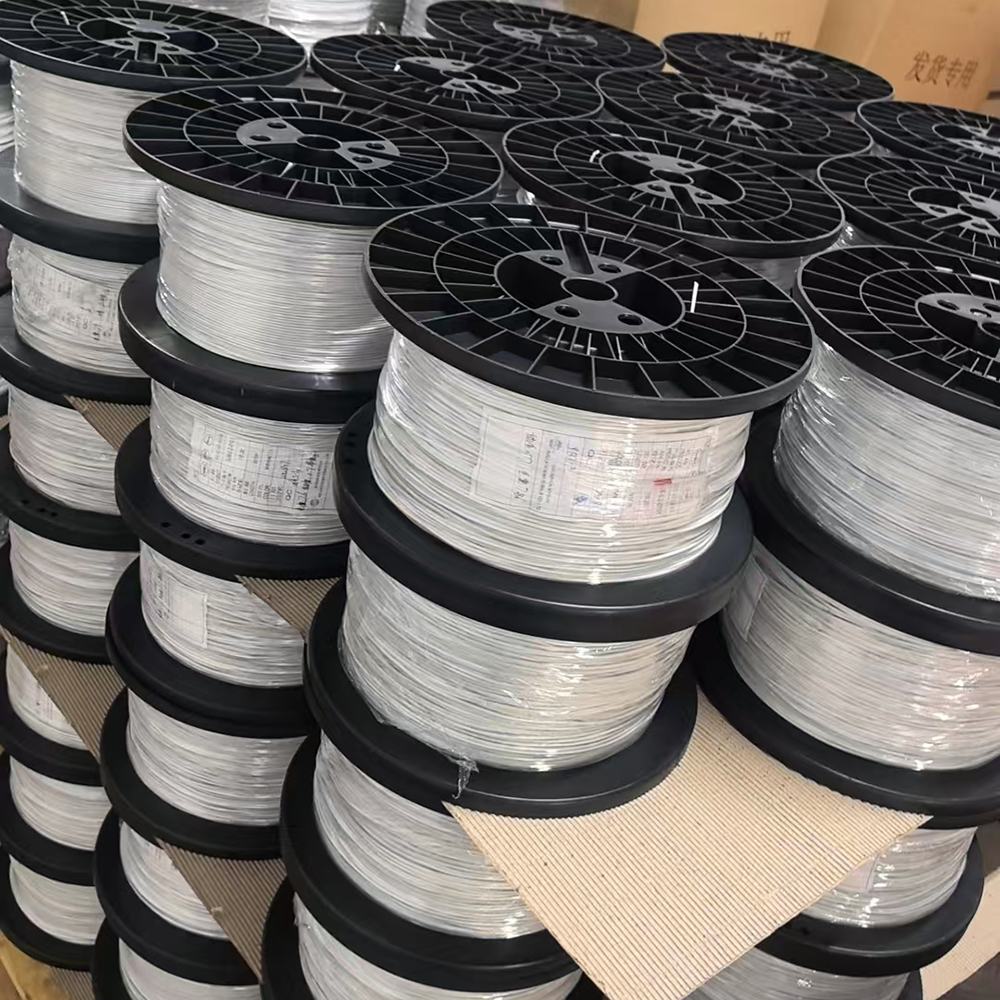

Packing 305m/610m per roll
Conductor Tinned copper
Size 32-10AWG
Product Description

Supplies Fortune 500 Companies - Top High Temperature Wire Supplier In China

Specification
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm) Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
32 7/0.08 0.24 0.33 0.90 563 610/2000
30 7/0.10 0.30 0.33 0.96 381 610/2000
28 7/0.12 0.36 0.33 1.02 239 610/2000
26 7/0.16 0.48 0.33 1.14 150 610/2000
24 7/0.20 0.60 0.33 1.23 94.2 610/2000
22 19/0.15 0.75 0.33 1.41 59.4 305/1000
20 19/0.19 0.93 0.33 1.59 36.7 305/1000
18 19/0.235 1.17 0.35 1.87 23.2 305/1000
16 19/0.30 1.50 0.35 2.20 14.6 305/1000
14 19/0.37 1.85 0.35 2.55 8.96 305/1000
12 19/0.47 2.35 0.35 3.05 5.64 305/1000
10 37/0.43 3.00 0.35 3.70 3.55 305/1000
Our Products
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 0
Application
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 1
Company Profile
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 2 UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 3
Our Overseas Clients
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 4
Exhibition
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 5
Certifications
UL1180 PTFE Wire 200C High-Temperature Resistant 12-32 AWG 6
FAQ
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?

A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.

4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
