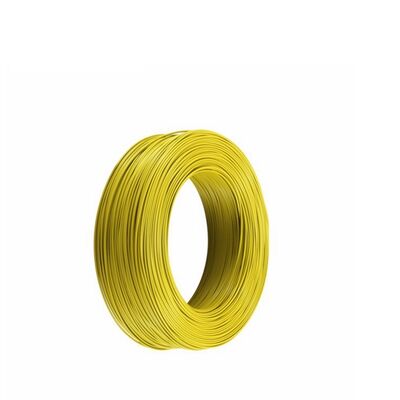

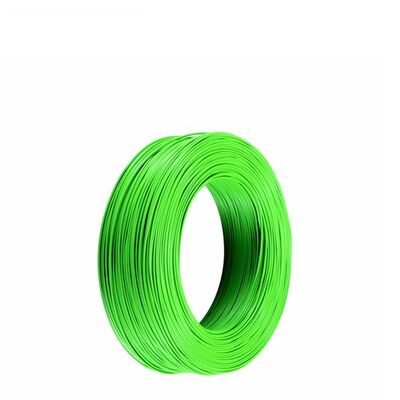

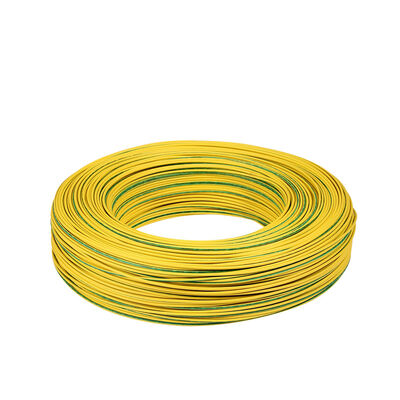

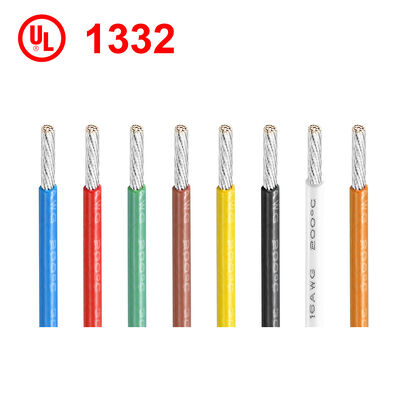

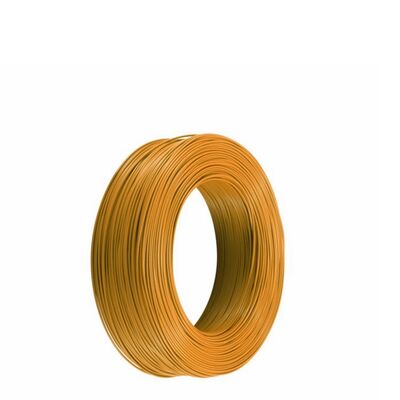

UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance

  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
  • UL1332 FEP Insulated Wire with Tinned Copper Conductor Flexible and 200℃ Rated Temperature for Home Appliance
Place of Origin Guangdong, China
Brand Name MYSUN
Certification ROHS/UL/CCC/VDE/CCC/ISO9001:2008
Model Number UL758 UL1332
Minimum Order Quantity 3050
Price Rp 2.080-3.120
Product Details
Conductor Material Tinner Copper Diameter 20 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 24 AWG, 22 AWG
Insulation Material FEP Rated Voltage 300V
Conductor Type Stranded Shape Round
Temperature 200℃ Max Conductor Resistance 361Ω/KM (30 AWG), 227Ω/KM (28 AWG), 143Ω/KM (26 AWG), 89.3Ω/KM (24 AWG), 56.4Ω/KM (22 AWG), 35.2Ω/KM (20 AWG), 22.2Ω/KM (18 AWG), 14Ω/KM (16 AWG), 8.78Ω/KM (14 AWG), 5.53Ω/KM (12 AWG), 3.476Ω/KM (10 AWG)
Unit Length 610m (30-26 AWG), 305m (22-10 AWG) Conductor Construction 1/0.26mm (30 AWG), 7/0.10mm (30 AWG), 1/0.32mm (28 AWG), 7/0.12mm (28 AWG), 7/0.16mm (26 AWG), 19/0.10mm (26 AWG), 1/0.50mm (24 AWG), 7/0.20mm (24 AWG), 19/0.12mm (24 AWG), 1/0.65mm (22 AWG), 7/0.254mm (22 AWG), 19/0.15mm (22 AWG), 1/0.81mm (20 AWG), 7/0.3
Insulation Thickness 0.305mm (30-24 AWG), 0.33mm (22-10 AWG) Insulation Diameter 0.87mm (30 AWG), 0.91mm (30 AWG), 0.93mm (28 AWG), 1.38mm (28 AWG), 1.09mm (26 AWG), 1.11mm (26 AWG), 1.11mm (24 AWG), 1.21mm (24 AWG), 1.31mm (22 AWG), 1.42mm (22 AWG), 1.41mm (22 AWG), 1.47mm (20 AWG), 1.59mm (20 AWG), 1.68mm (18 AWG), 1.83mm (18 AWG), 1
Color Customer Requirements Material Standard Copper
Highlight

Tinned Copper FEP Insulated Wire

,

200℃ Rated Temperature FEP Cable

,

Flexible FEP Insulated Cable
Leave a Message
Product Description
UL1332 FEP Wire Cables Tinner Copper 10-20 AWG Flexible High Temperature Cable
Premium flexible high-temperature cable designed for home appliances and industrial applications with excellent thermal resistance and durability.
Partnership Opportunity
Seeking Country Agents for mutually beneficial partnerships.
Product Specifications
UL1332 FEP Wire Cable technical specifications diagram
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
301/0.260.260.3050.87361610/2000
7/0.100.30.91
281/0.320.320.3050.93227610/2000
7/0.120.361.38
267/0.160.480.3051.09143610/2000
19/0.100.481.11
241/0.500.50.3051.1189.3610/2000
7/0.200.61.21
19/0.120.61.21
221/0.650.650.331.3156.4305/1000
7/0.2540.761.42
19/0.150.751.41
201/0.810.810.331.4735.2305/1000
7/0.310.931.59
19/0.190.931.59
181/1.021.020.331.6822.2305/1000
7/0.391.171.83
19/0.2351.171.83
161/1.301.30.331.9614305/1000
7/0.491.472.13
19/0.301.52.16
1419/0.371.850.332.518.78305/1000
1219/0.472.350.333.015.53305/1000
1019/0.613.050.333.713.476305/1000
Our Product Range
High-temperature wires and cables product portfolio
Applications
Industrial and home appliance applications for high-temperature cables
Company Profile
Manufacturer company profile and capabilities Manufacturing facilities and production bases
Global Client Network
International clients and global distribution network
Industry Exhibitions
Trade show participation and industry exhibitions
Quality Certifications
UL, VDE, CE, ROHS and other quality certifications
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
