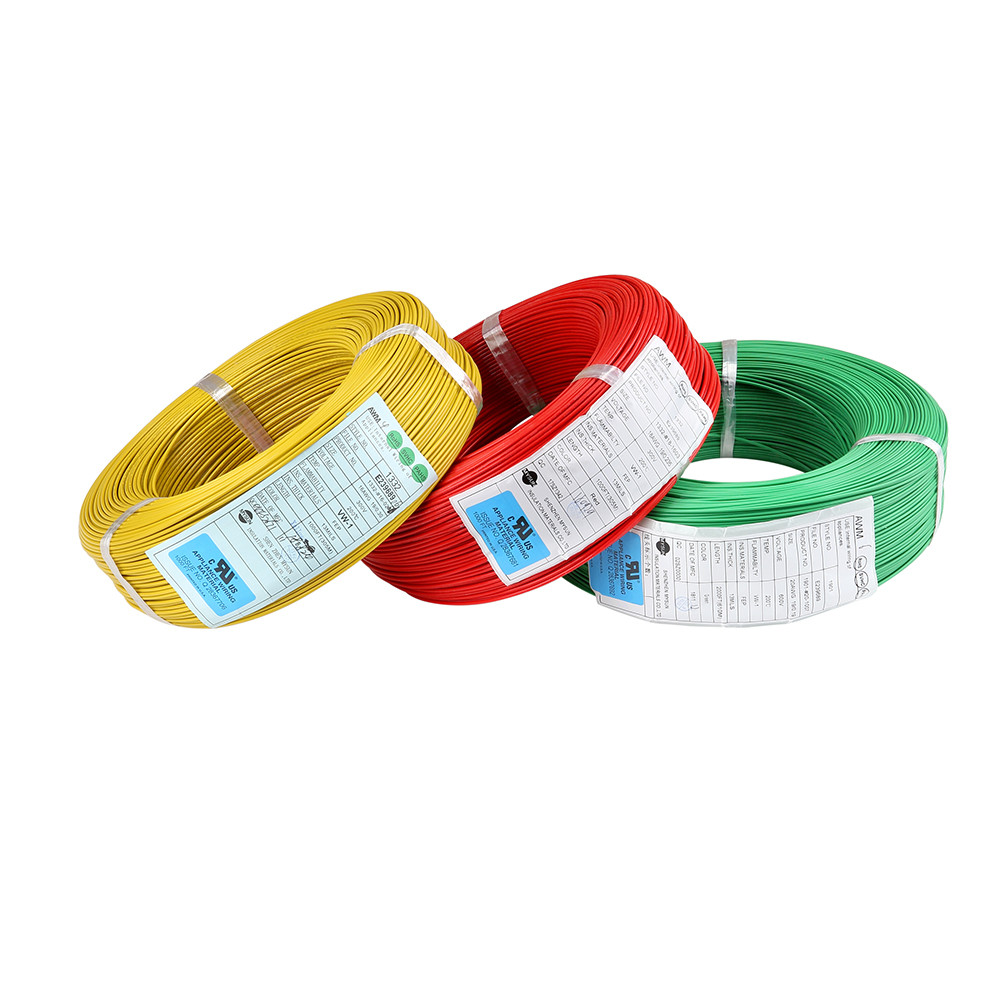

20AWG UL1927 FEP Insulated Wire With Stranded Conductor For Home Appliance

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL1927
Minimum Order Quantity 305 meters
Price Negotiable
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day
Product Details
Conductor Type Stranded Color Accept Customized
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 30v
Rated Temperature 180 Size 14-32AWG
Conductor Tinned Copper Wires Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation Feb
Type Insulated Max.Cond Resistance 3.55-94.2 Ω/KM
High Light

20AWG FEP Insulated Wire

,

UL1927 FEP Insulated Wire

,

Stranded Conductor Insulated Electric Wire

Leave a Message
Product Description

Specifications:

Nominal voltage:30V

Temperature range: 105℃

Standard: VDE0250

Insulation: FEP

Conductor: Copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Our Product



20AWG UL1927 FEP Insulated Wire With Stranded Conductor For Home Appliance 0



Product Description



20AWG UL1927 FEP Insulated Wire With Stranded Conductor For Home Appliance 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



20AWG UL1927 FEP Insulated Wire With Stranded Conductor For Home Appliance 2



 Product Parameter

CONDUCTOR
INSULATION
MAX.COND RESISTANCE (Ω/KM)
UNIT LENGTH (M)(FT)
SIZE (AWG)
CONSTRUCTION (NO./mm)
DIAMETER (mm)
NOMINAL THICKNESS (mm)
DIAMETER (mm)
32
7/0.08
0.24
0.2
0.64
563
1220/4000
30
7/0.10
0.3
0.2
0.7
381
1220/4000
28
7/0.127
0.38
0.25
0.88
239
1220/4000
26
7/0.16
0.48
0.3
1.08
150
610/2000
24
7/0.2
0.61
0.3
1.21
94.2
610/2000
22
19/0.15
0.77
0.3
1.37
59.4
610/2000
20
19/.019
0.92
0.3
1.52
36.7
610/2000
18
19/0.235
1.19
0.3
1.79
23.2
305/1000
16
19/0.30
1.49
0.3
2.09
14.6
305/1000
14
19/0.37
1.87
0.35
2.57
8.78
305/1000



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.





Company Introduction



Mysun Dongguan factory
Employee: 183
Area: 18000m²
Daily capacity: 2000,000m above
