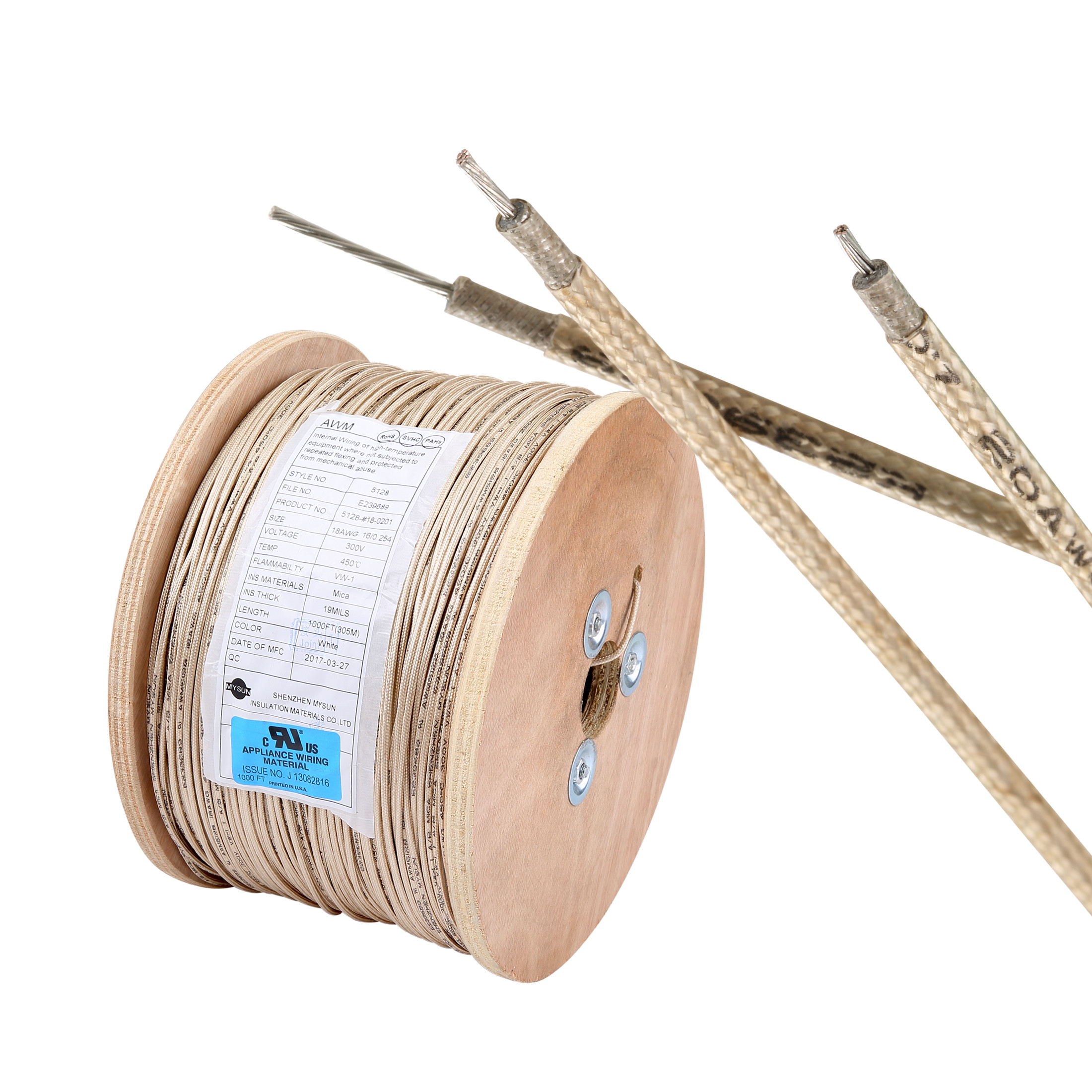

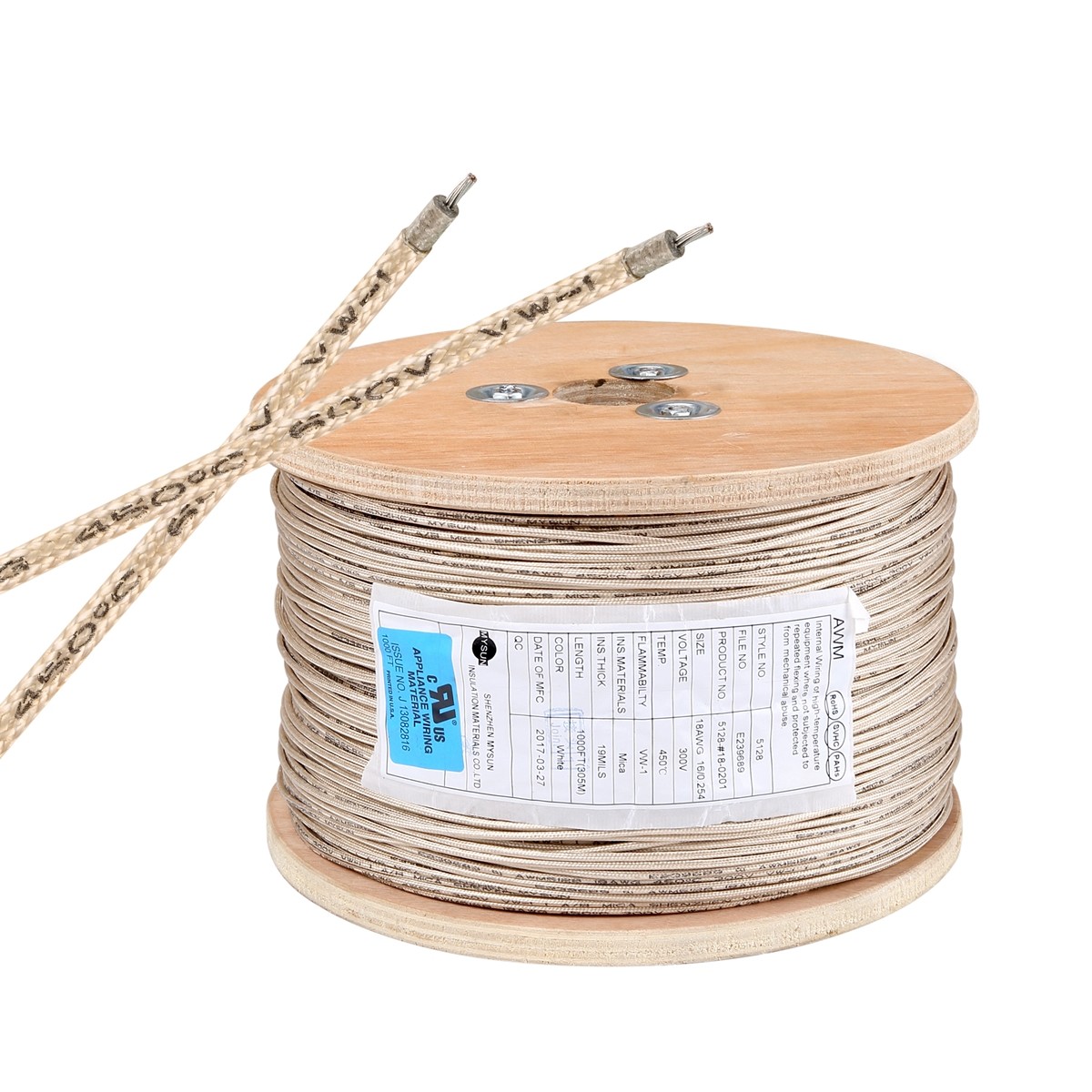

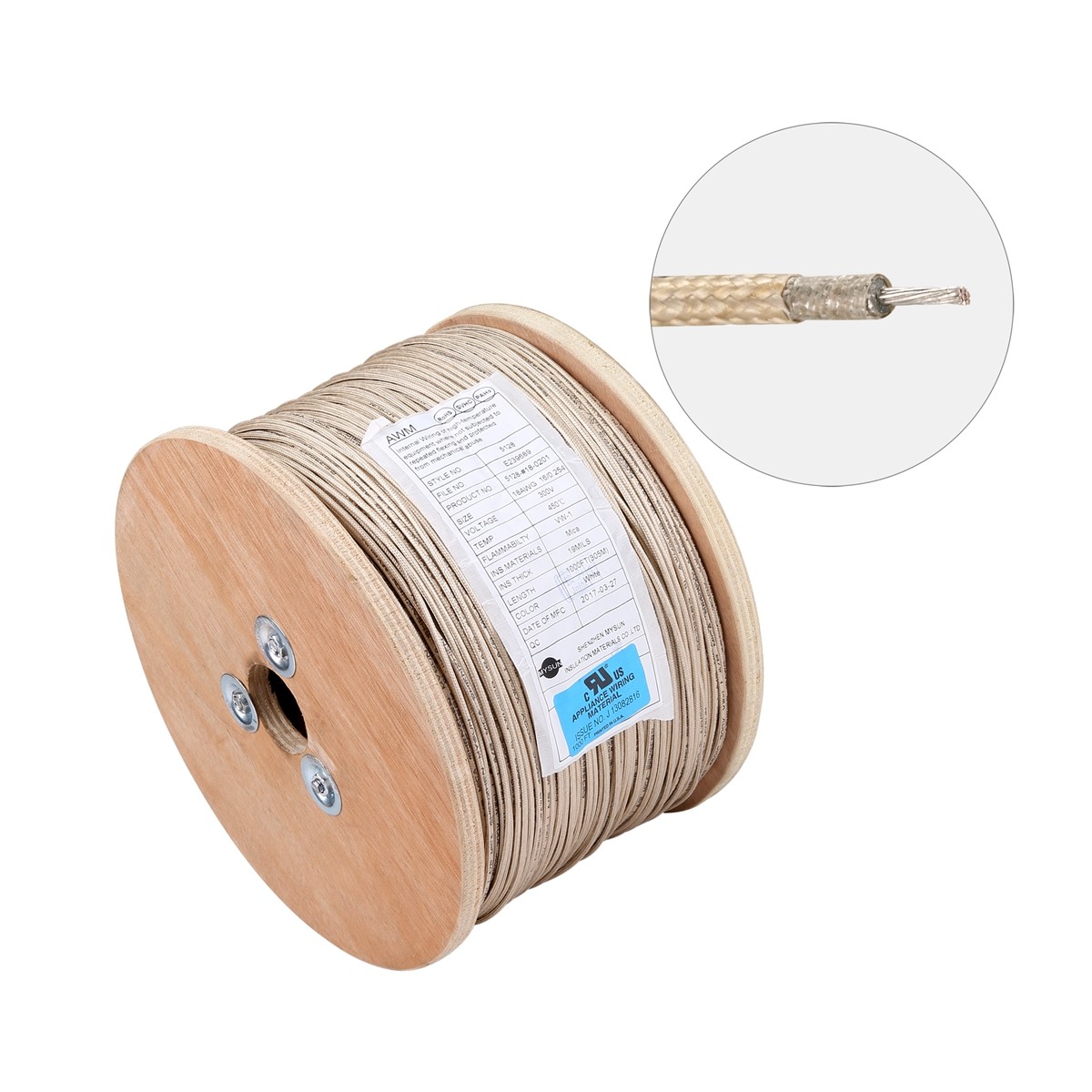

Nickel Plated Conductor 26AWG Mica Insulated Wire UL5107 For Heaters
| Place of Origin | Guangdong ,China |
|---|---|
| Brand Name | MYSUN |
| Certification | UL |
| Model Number | UL 5107 |
| Minimum Order Quantity | 3050meters |
| Price | 0.4-1.5USD/M,negotiable |
| Packaging Details | 305m/roll |
| Delivery Time | 7-15working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Namee | UL5107 Mica Wire | Insulation | Silicone Rubber |
|---|---|---|---|
| Conductor | Nickel--plated Copper | Rated Temperature | 450C |
| Rated Voltage | 600V | Standards | UL758 |
| Appliance | Heaters | Sizes | 4-26AWG |
| Color | Brown | MOQ | 3050M |
| High Light | Nickel Plated Mica Insulated Wire,26AWG Mica Insulated Wire,UL5107 High Temperature Electric Wires |
||
Product Description

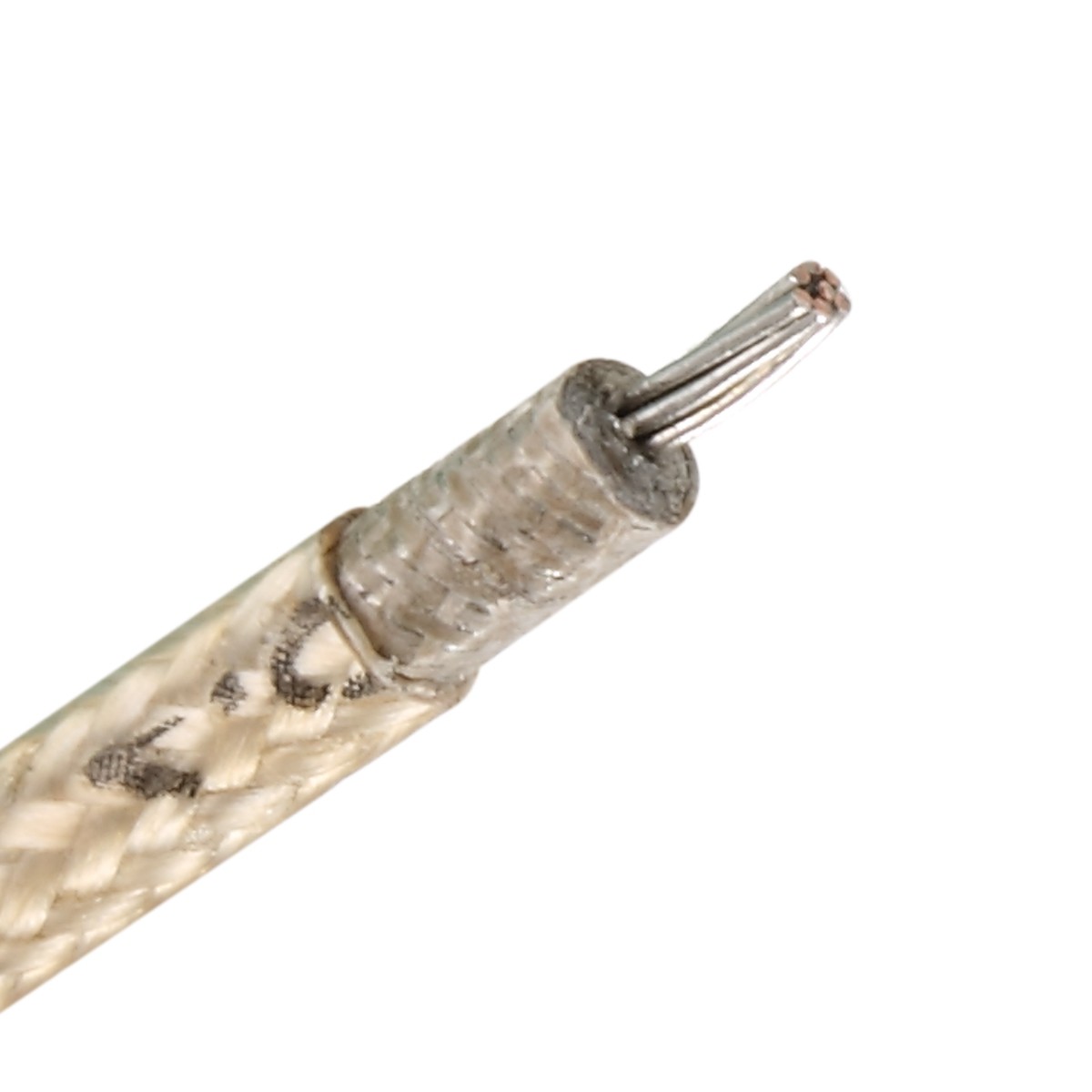

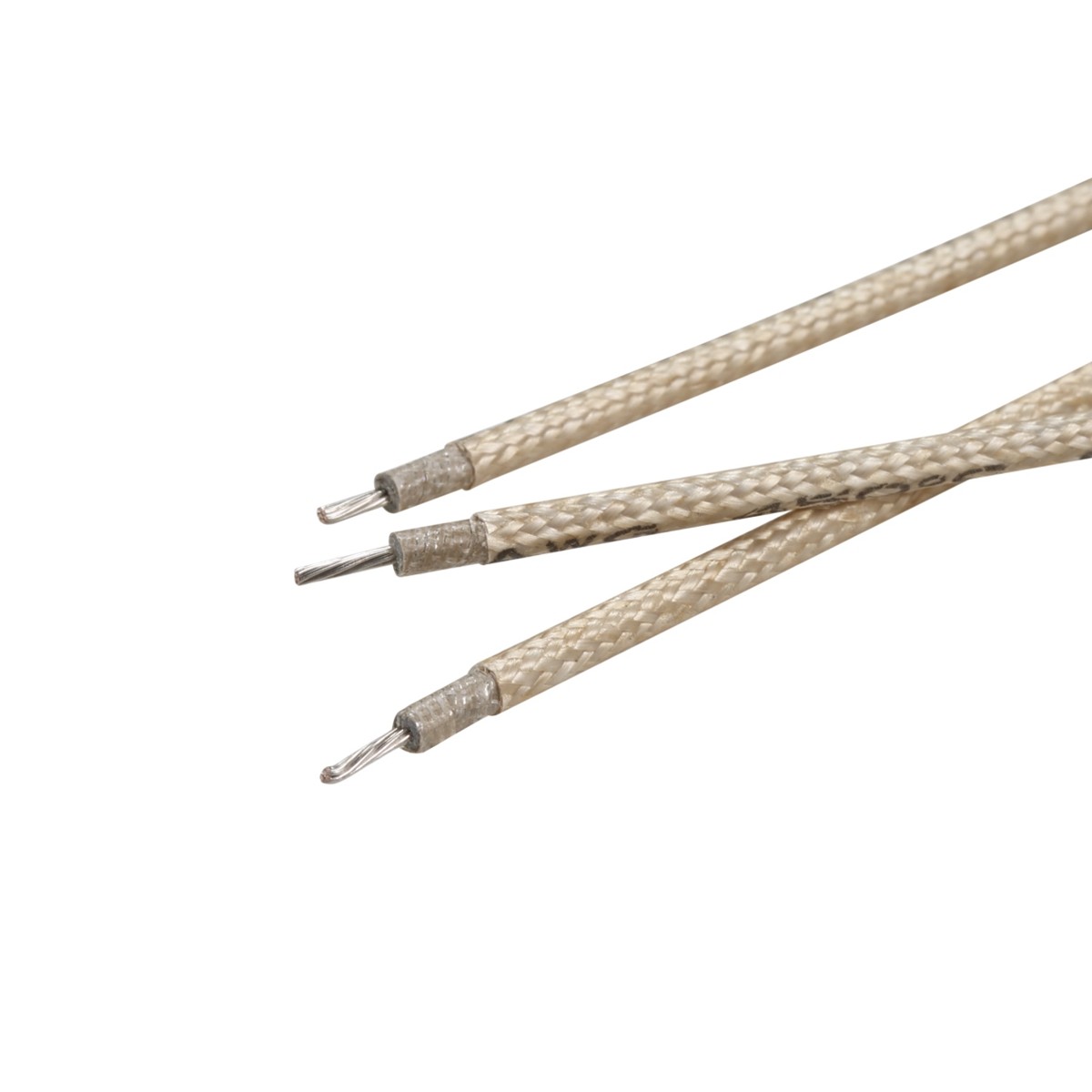

HIgh temperature insulated wire Glass Braided Mica wires AWM UL 5107
Specifications:
Nominal voltage: 600V
Temperature range:450℃
Standard: UL 758
Insulation: mica + glass
Conductor: Nickel-plated copper wire
Product features:
Mica glass braided wire has excellent resistance to high temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.They widely used in home appliance,lighting,industry equipment,heater,etc.
Product dimensions:
| Conductor | Insulation | Unit Length | ||||
| Size | Construction | Diameter | Mica Thickness | Glass Thickness | Diameter | (m) |
| (AWG) | (No./mm) | (mm) | (mm) | (mm) | (mm) | |
| 26 | 7/0.16 | 0.48 | ≥0.635 | 0.181 | ≥2.15 | 305 |
| 24 | 7/0.20 | 0.61 | ≥2.25 | |||
| 22 | 7/0.25 | 0.77 | ≥2.40 | |||
| 20 | 7/0.31 | 0.94 | ≥2.60 | |||
| 18 | 16/0.254 | 1.19 | ≥2.85 | |||
| 16 | 26/0.254 | 1.49 | ≥3.15 | |||
| 14 | 41/0.254 | 1.87 | ≥3.50 | 200 | ||
| 12 | 65/0.254 | 2.36 | ≥0.762 | 0.381 | ≥4.65 | 100 |
| 10 | 35/0.45 | 3.06 | ≥5.35 | |||
| 8 | 67/0.40 | 3.75 | ≥6.05 | |||
| 6 | 266/0.254 | 4.75 | ≥7.05 | |||
| 4 | 420/0.254 | 6.02 | ≥8.25 | |||
- Lead Time :
-
Quantity(Meters) 1 - 6100 >6100 Est. Time(days) 7 To be negotiated -
Service
Packaging : Hard cardboard carton ( Customizable)
Shipment:
1. by express
2. by sea3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working daysFAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3, What’s the payment terms?
LC, TT, Western Union, Money Gram and PayPal
4, What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it within one day.
We will arrange the delivery date as your requirement while the Bulk Production.
5, How to visit your factory/company?
We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
