High Rated Temperature Mica Insulated Wire For Heaters UL758 UL1581 Standard

  • High Rated Temperature Mica Insulated Wire For Heaters UL758 UL1581 Standard
  • High Rated Temperature Mica Insulated Wire For Heaters UL758 UL1581 Standard
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL5107
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 10-15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000 meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Mica Conductor Nickel-plated Copper Or Pure Nickel
Jaket Fiberglass Braiding Specs 450C 600V
Application For High Temperature Heaters And Ovens Standard UL758 UL1581
Color Normally Nature Color Other Use Pure Nickel Conductor Can Bear 750C
High Light

heater hook up wire

,

heat resistant wire for oven
Leave a Message
Product Description

600V 450C UL5107 mica insulated wire fiberglass braided for heater

Specification:
Rated voltage: 600V
Rated temperature: 450C
UL standard: UL758
Applications: this wire widely sued for heaters and home appliance


Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.

Cable dimensions:


ConductorInsulationMax.Cond ResistanceUnit length
Size
(AWG)		Construction
(No./mm)		Diameter
(mm)		Nominal Thickness
(mm)		Diameter
(mm)		(Ω/KM)(M)(Ft)
267/0.160.48≥0.6350.181≥2.15305
247/0.200.61≥2.25
227/0.250.77≥2.40
207/0.310.94≥2.60
1816/0.2541.19≥2.85
1626/0.2541.49≥3.15
1441/0.2541.87≥3.50200
1265/0.2542.36≥0.7620.381≥4.65100
1035/0.453.06≥5.35
867/0.403.75≥6.05
6266/0.2544.75≥7.05
4420/0.2546.02≥8.25

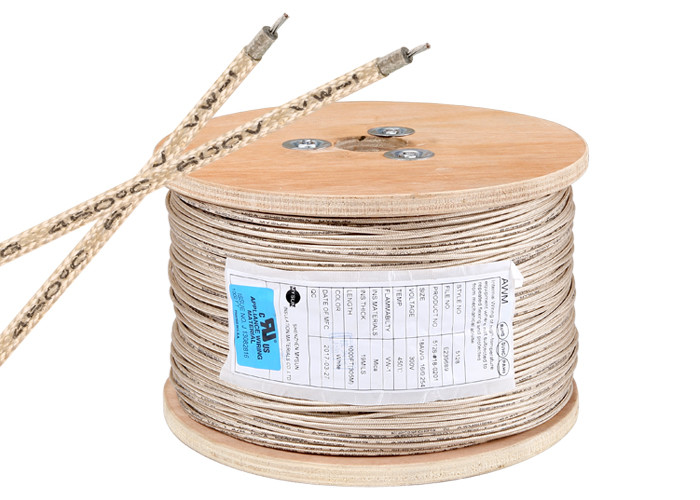

Cable details:
High Rated Temperature Mica Insulated Wire For Heaters UL758 UL1581 Standard 0
High Rated Temperature Mica Insulated Wire For Heaters UL758 UL1581 Standard 1

Price term:
EXW, FOB, CIF Term

Payment terms:
TT, LC Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

Tags:

heater hook up wire

heat resistant wire for oven

household electrical cable
