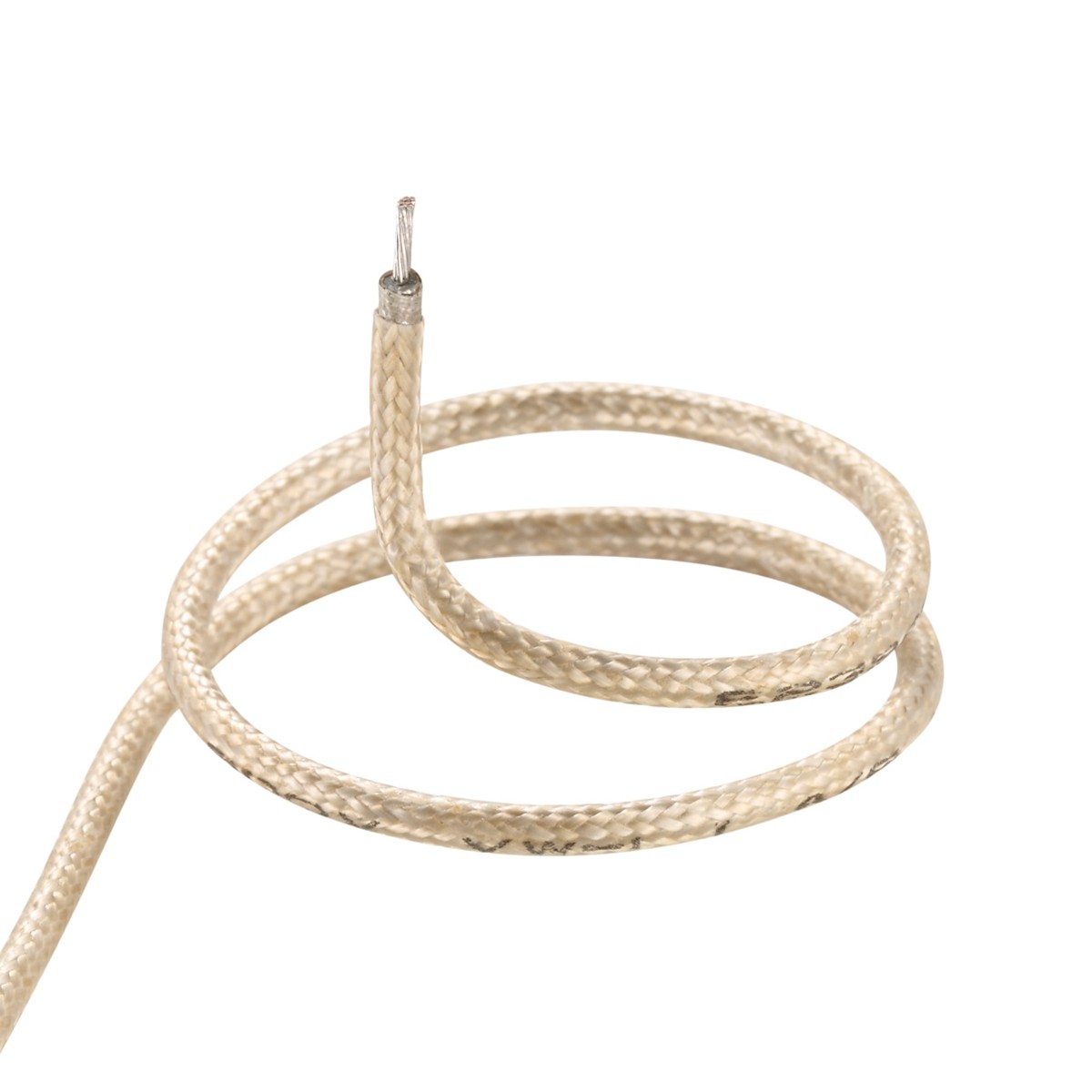

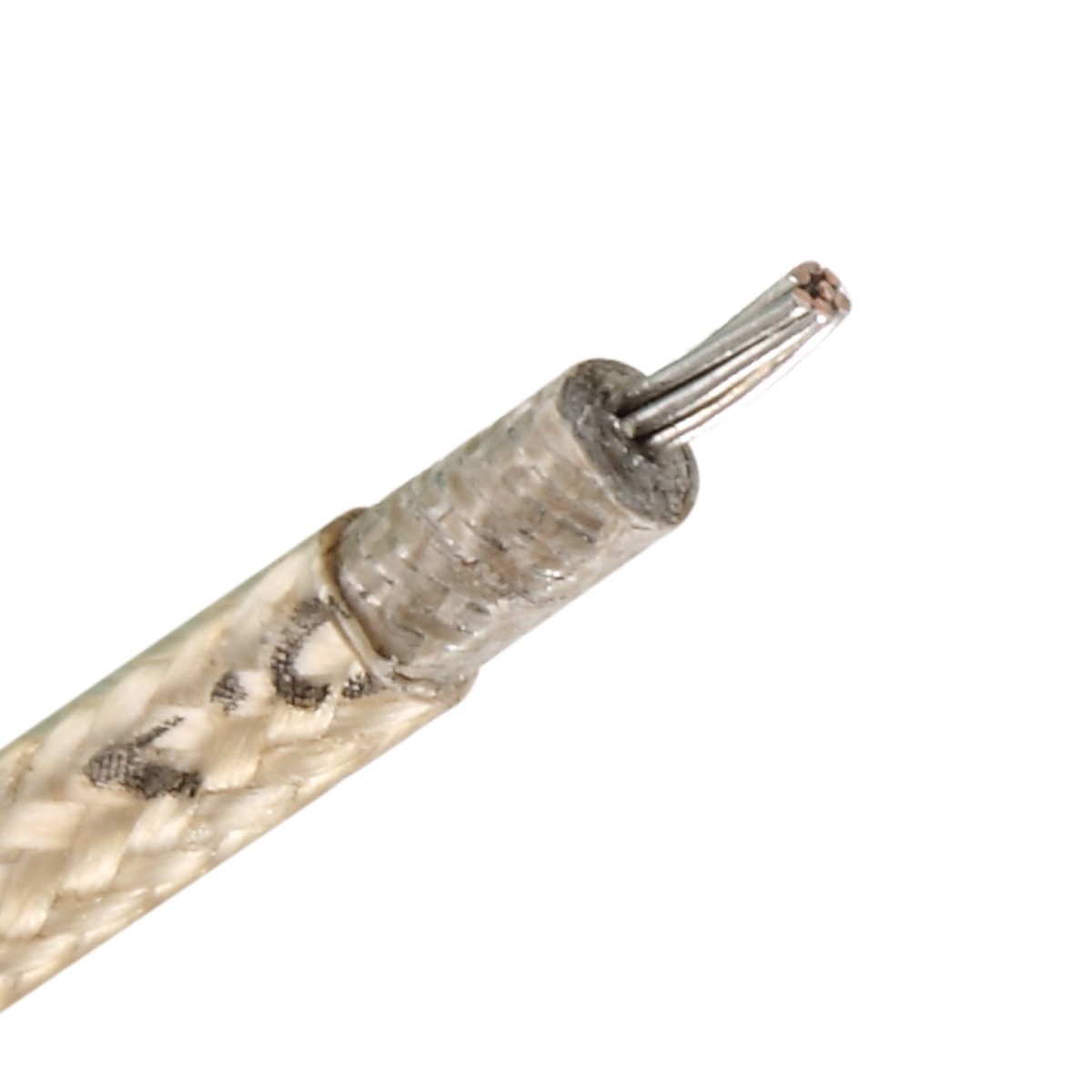

Glass Braided Mica Insulated Cable UL5335 22AWG Nickel Plated Conductor Wire

  • Glass Braided Mica Insulated Cable UL5335 22AWG Nickel Plated Conductor Wire
  • Glass Braided Mica Insulated Cable UL5335 22AWG Nickel Plated Conductor Wire
  • Glass Braided Mica Insulated Cable UL5335 22AWG Nickel Plated Conductor Wire
Place of Origin Guangdong ,China
Brand Name MYSUN
Certification UL
Model Number UL 5335
Minimum Order Quantity 3050meters
Price 0.4-1.5USD/M,negotiable
Packaging Details 305m/roll
Delivery Time 7-15working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Namee UL5335 Mica Wire Rated Voltage 600V
Rated Temperature 450°C Standard UL758
Insulation Mica,glass Application Lighting,heater,home Appliance And Industry Equipment
Sizes 4-22AWG OD 2.20-7.85mm
Conductor Nickel-plated Copper Package 305m/roll
High Light

Glass Braided Mica Insulated Cable

,

Mica Insulated Cable UL5335

,

22AWG Nickel Plated Conductor Wire
Leave a Message
Product Description

HIgh temperature insulated wire  Glass Braided Mica wires AWM UL 5335



Specifications:

Nominal voltage: 600V

Temperature range:450℃

Standard: UL 758

Insulation: mica + glass

Conductor: Nickel-plated copper wire



Product features:

Mica glass braided wire has excellent resistance to high temperature resistance, excellent electrical insulation performance, high voltage resistance, aging resistance, long service life and soft and easy to install.They widely used in home appliance,lighting,industry equipment,heater,etc.







Product dimensions:

Conductor Insulation Unit Length
Size Construction Diameter Mica Thickness Glass Thickness Diameter (m)
(AWG) (No./mm) (mm) (mm) (mm) (mm)
24 7/0.20 0.61 ≥0.381 0.178 ≥1.75 305
22 7/0.25 0.77 ≥1.90
20 7/0.31 0.94 ≥2.10
18 16/0.254 1.19 ≥2.30
16 26/0.254 1.49 ≥2.60
14 41/0.254 1.87 ≥3.00 200
12 65/0.254 2.36 ≥0.508 0.381 ≥4.15 100
10 35/0.45 3.06 ≥4.85
8 67/0.40 3.75 ≥5.55
6 266/0.254 4.75 ≥6.55
4 420/0.254 6.02 ≥7.80









Lead Time :
Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated

QNH76117-b

--20170321_01


--20170321_08

--20170321_09

--20170321_02


--20170321_04


Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
