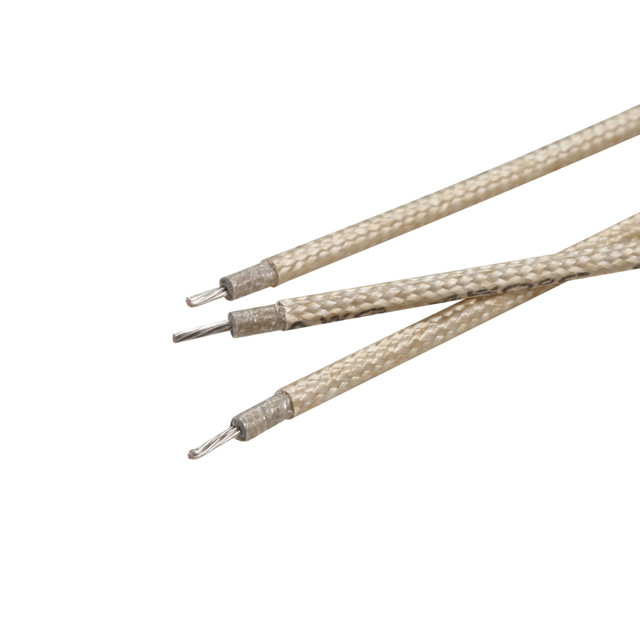

16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128

  • 16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128
  • 16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128
  • 16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128
  • 16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128
  • 16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128
Place of Origin China
Brand Name MYSUN
Certification UL, cUL, CSA
Model Number UL5128
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 450℃
Insulation Glass Conductor Nickel-plated Copper
Standard UL758 Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products
Color All Colors Are Available Size 4-26 Awg
Name Mica Cable Flame Test VW-1
High Light

heater hook up wire

,

household electrical cable
Leave a Message
Product Description

UL5128 450 degrees mica insulated wire



Rated voltage: 600V

Rated temperature: 450℃

Standard；UL 758

Conductor: Nickel plated copper or pure nickel

Insulation: Mica

Jacket: Fiber glass





Product dimensions:

Conductor Insulation Unit Length
(m)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Mica Thickness
(mm)		 Glass Thickness
(mm)		 Diameter
(mm)
24 7/0.20 0.61 ≥0.381 0.178 ≥1.75 305
22 7/0.25 0.77 ≥1.90
20 7/0.31 0.94 ≥2.10
18 16/0.254 1.19 ≥2.30
16 26/0.254 1.49 ≥2.60
14 41/0.254 1.87 ≥3.00
12 65/0.254 2.36 ≥0.508 0.381 ≥4.15 200
10 35/0.45 3.06 ≥4.85 100
8 67/0.40 3.75 ≥5.55
6 266/0.254 4.75 ≥6.55
4 420/0.254 6.02 ≥7.80



Our mica-insulated electric cables meet the most stringent international fire-resistance standards.

Mica tape not only provides electric insulation, but it also acts as a unique barrier against fire

by preventing its propagation and reduces the volume of toxic gases and fumes given away during a fire.



Mica is a natural material, chemically neutral, non-toxic and entirely halogen-free.

Mica tape is a dry non-adhesive flexible tape, impregnated with a high performance

heat-resistant silicon resin and reinforced with a support of polyethylene film.



The advantages of Mica:

  • Non-propagation of flames: Mica is a non-combustible material and does not propagate flames.
  • Delay in smoke release: Mica reduces the quantity of toxic gases and smoke given away in a fire and also delays their release.
  • Environmentally friendly: Mica is asbestos-free and complies with the latest international environmental standards.
  • Acid and alkaline-resistant
  • Vibration and shock-resistant
  • Water-resistant
  • Radiation-resistant up to 109 Rad

Applications:

We use mica tape in the instrumentation and control and power cable families.



Cable applications include emergency lighting, smoke extractors, telephones, lifts,

signal equipment, control units, emergency pumps, IT centers, etc.

wherever there is strategically important equipment that cannot stop working and that needs to be preserved.

These cables are fit for hospitals, airports, high apartments, cinemas, hotels, department stores,

tunnels, underground railways and in industrial and military installations such as steel work plants,

petrochemical complexes, offshore platforms, telecommunication centers, etc.



16awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128 016awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128 116awg 450C High Temp Mica Insulated Wire / Nickel Plated Copper Wire UL5128 2

Service:

Shipment:
1. by express
2. by sea



Payment terms:
LC, TT, Western Union, Money Gram and PayPal



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days



FQA

Is the quality of your products guaranteed?

A:Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment,

and our workers are highly experienced . We strictly follow the international standards and customers' requirements.



How can I get samples?

A:Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately. If we don't have the exact model you need, Maybe we will send you similar sample if you accept.f you couldn’t accept,it will take us 3-5days to get the sample done.





What about the lead time for mass production?

A:Honestly, it depends on the order quantity and the season you place the order.Usually, delivering time is 7-10days, Generally speaking, we suggest that you start inquiry one months before the date you would like to get the products at your country.
