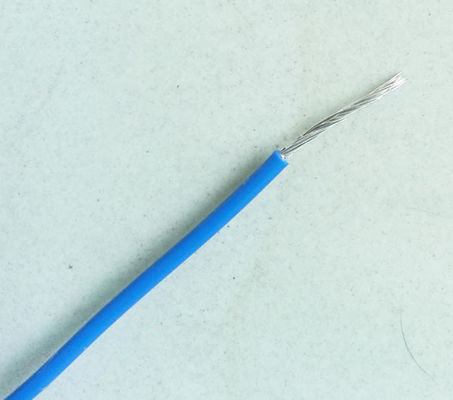

250C 14 AWG Stranded Wire , Nickel Plated Copper Wire UL10486

250C 14 AWG Stranded Wire , Nickel Plated Copper Wire UL10486

    • 250C 14 AWG  Stranded Wire , Nickel Plated Copper Wire UL10486
    • 250C 14 AWG  Stranded Wire , Nickel Plated Copper Wire UL10486
    • 250C 14 AWG  Stranded Wire , Nickel Plated Copper Wire UL10486
  • 250C 14 AWG  Stranded Wire , Nickel Plated Copper Wire UL10486

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL10486

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 300V Rated Temperature: 250℃
    Insulation: PFA Conductor: Nickel-plated Copper Wire
    Standard: UL758 Color: All Colors Are Available
    Appliance: Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
    Packing: Reel Name: Multicore Cable
    Size: 4/0-32AWG Name: High Temperature Cable

    250C 14AWG UL10486 Insulated Wire Nickel-plated copper wire



    Specifications:

    Nominal voltage:300V

    Temperature range:200C

    Standard: UL 758

    Insulation: PFA

    Conductor: Nickel-plated copper wire

    appliance:home appliance, headlamp, industrial machine, electro thermal products.

    color:all colors are available



    Product dimensions:



    CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
    SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS(mm) DIAMETER (mm)
    32 7/0.08 0.24 0.25 0.74 589 610(2000)
    30 7/0.10 0.30 0.25 0.80 236 610(2000)
    28 7/0.12 0.36 0.25 0.86 237 610(2000)
    26 7/0.16 0.48 0.25 0.98 152 610(2000)
    24 7/0.20 0.60 0.25 1.10 95.30 610(2000)
    22 19/0.15 0.75 0.25 1.25 56.10 305(1000)
    20 19/0.185 0.93 0.25 1.43 34.60 305(1000)
    18 19/0.235 1.17 0.30 1.77 22.20 305(1000)
    16 19/0.30 1.50 0.30 2.10 16.60 305(1000)
    14 19/0.37 1.85 0.30 2.45 8.78 305(1000)
    12 19/0.47 2.35 0.35 3.05 5.70 305(1000)
    10 37/0.43 3.00 0.35 3.70 3.95 305(1000)
    8 37/0.54 3.78 0.51 4.80 2.62 AS CUSTOMER'S REQUEST
    7 37/0.60 4.20 0.51 5.22 1.93
    6 37/0.68 4.76 0.51 5.78 1.58
    5 37/0.76 5.32 0.51 6.34 1.23
    4 37/0.86 6.02 0.80 7.62 1.03
    3 7/2.21 6.63 0.80 8.23 0.78
    2 7/2.48 7.44 0.80 9.04 0.55
    1 7/2.78 8.34 1.20 10.74 0.48
    0 7/3.20 9.60 1.20 12.00 0.39
    2/0 7/3.57 10.71 1.20 13.11 0.31
    3/0 7/3.94 11.82 1.20 14.22 0.24
    4/0 7/4.42 13.26 1.20 15.66 0.19



    Features and Benefits of PFA

    When compared to rubber insulation, PFA is a more suitable alternative, as they are smaller in terms of diameter,

    and are lighter in terms of weight. Both these attributes support easy wire installation.

    They are particularly useful for applications, which comprise fluctuating voltages and temperatures.

    The features of PFA insulated wire include:

    • Chemical resistance
    • Good electrical stability
    • High mechanical strength
    • Low outgassing properties
    • Protects wires during harsh weather conditions
    • Conductor Material: Tinned Copper
    • AWG Rating Range: From 10 to 30 AWG
    • Operating Temperature Range:
    • Static: From -75° C to +200° C
    • Flex: Between -50 °C and 190 °C

    These various features and benefits make them the perfect insulation for wires used in gas igniters, scientific instruments,

    automotive sensors, and aircraft and marine systems.







    Service:

    Shipment:

    1. by express

    2. by sea



    Payment terms:

    LC, TT, Western Union, Money Gram and PayPal



    Delivery:

    Sample order: 1-3 working days

    Big order: 5-10 working days

    Customized order: 10-15 working days
