UL10362 PFA Coated Insulated Wire For Lighting 300V 250C Flame Retardant

UL10362 PFA Coated Insulated Wire For Lighting 300V 250C Flame Retardant

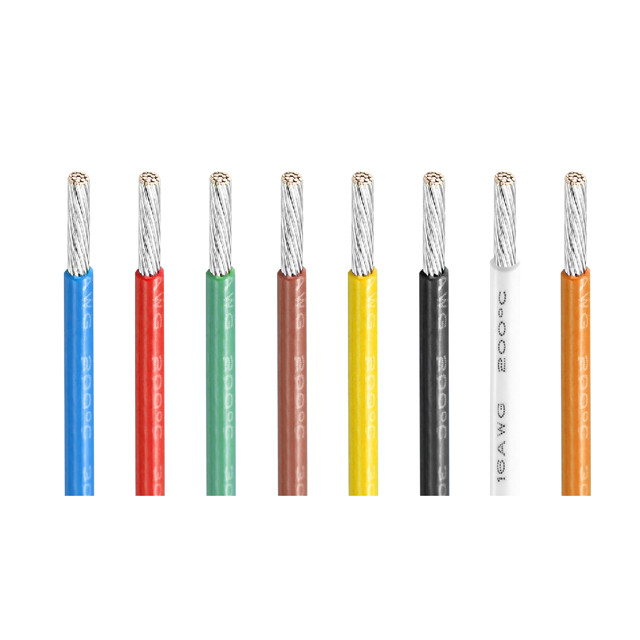

    • UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant
    • UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant
    • UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant
  • UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant

    Product Details:

    Place of Origin: CHINA
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL10362

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: carton, pallet
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 0.6 million meters each day
    Contact Now
    Detailed Product Description
    Insulation: PFA Conductor: Nickel-plated Copper
    Size: 30AWG-4/0AWG Color: Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink, Transparent
    Rated Voltage: 600V Working Temp: 250C
    Use In: Lighting, Motor And Home Appliance SPQ: 305m/roll, 610m/roll
    Package: Reel, Carton, Pallet Flame Retardant: VW-1

    UL10362 PFA coated insulated wire



    Specification:

    Rated voltage: 600V

    Rated temperature: 250C

    UL standard: UL758

    Applications: this wire apply to household appliance, lighting & headlamp, electric machines, temperature

    sensors, military series, metallurgy chemical series, motor car & ship electrical installation.



    PFA Performance:
    PFA insulation has excellent chemical resistance to oils, ozone, alkali, acids, solvents,gasoline,aromatic
    hydrocarbons and alcohol.
    PFA insulated wire is ideal for automotive oxygen and NOx sensors, gas igniters, medical and scientific
    instrument, computers, aircraft, and marine systems subjected to harsh operating conditions.



    Cable dimensions:



    Conductor Insulation Max.Cond Resistance Unit length
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    (Ω/KM) (M)(Ft)
    30 7/0.10 0.30 0.30 0.90 361 610/2000
    28 7/0.12 0.36 0.96 227
    26 7/0.16 0.48 1.08 143
    24 7/0.20 0.60 1.20 89.3
    22 19/0.15 0.75 1.35 56.4 305/1000
    20 19/0.185 0.93 1.53 35.2
    18 19/0.235 1.17 1.77 22.2
    16 19/0.30 1.50 0.35 2.20 14
    14 19/0.37 1.85 2.55 8.78
    12 19/0.47 2.35 0.40 3.15 5.53
    10 37/0.43 3.00 3.80 3.476
    8 37/0.54 3.78 0.80 5.38 2.16 customized
    7 37/0.60 4.20 5.80 1.716
    6 37/0.68 4.76 6.36 1.361
    5 37/0.76 5.32 6.92 1.079
    4 37/0.86 6.02 7.62 0.8859
    3 7/2.21 6.63 8.23 0.6788
    2 7/2.48 7.44 9.04 0.5384
    1 7/2.78 8.34 1.20 10.74 0.4268
    0 7/3.20 9.60 12.00 0.3367
    2/0 7/3.57 10.71 13.11 0.267
    3/0 7/3.94 11.82 14.22 0.2119
    4/0 7/4.42 13.26 15.66 0.168



    Cable details:
    UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant

    UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant

    UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant

    UL10362 PFA Coated  Insulated Wire For Lighting 300V 250C Flame Retardant



    Price term:
    EXW, FOB, CIF



    Payment terms:
    LC, TT, Western Union and PayPal



    Lead time:
    Sample order: 1-3 working days
    Big order: 5-10 working days
    Customized order: 10-15 working days



    Why Choose Us?
    1. Full experience of 20 years in manufacturing silicone cable, cable, xlpe cable, mica cable and wire harness.
    2. ISO9001:2015, ISO14001:2015, IATF 16949:2016 member
    3. Strong R&D Team to design and test products
    4. Strict quality control process with strict standards
    5. certifications for our products including UL, cUL, VDE, CSA, CCC and environmental test report: RoHS, REACH
    6. Free samples if have samples in stock
    7. Several different payment methods, like T/T, L/C, Western Union, Paypal
    8. Fast lead time
    9. Quick after-sale technical advice and guidance
