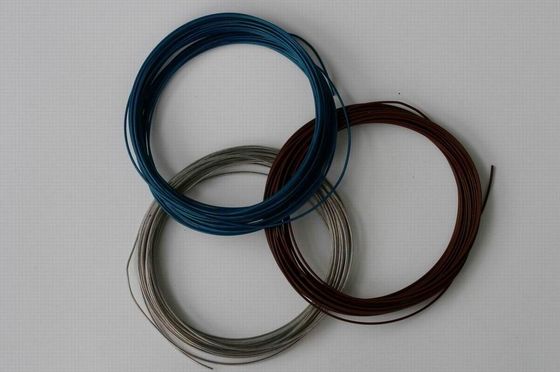

26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle

26awg 200C UL1709 PFA high temperature Insulated Wire for Motorcycle

    • 26awg 200C UL1709 PFA high temperature  Insulated Wire for Motorcycle
    • 26awg 200C UL1709 PFA high temperature  Insulated Wire for Motorcycle
    • 26awg 200C UL1709 PFA high temperature  Insulated Wire for Motorcycle
    • 26awg 200C UL1709 PFA high temperature  Insulated Wire for Motorcycle
  • 26awg 200C UL1709 PFA high temperature  Insulated Wire for Motorcycle

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL1709

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 300V Rated Temperature: 200℃
    Insulation: PFA Conductor: Tinned Copper
    Standard: UL758 Color: All Colors Are Available
    Appliance: Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
    Packing: Reel Name: Wire
    Size: 10-32AWG

    insulated wire UL1709



    Specifications:

    Nominal voltage: 300V

    Temperature range:200C

    Standard: UL 758

    Insulation: PFA

    Conductor: tinned copper wire



    Product dimensions:





    CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
    SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)

    28
    1/0.32 0.32 0.35 1.02 227 610(2000)
    7/0.12 0.36 0.35 1.06
    26 7/0.16 0.48 0.35 1.18 143 610(2000)
    24 1/0.50 0.50 0.35 1.20 89.3 305(1000)
    7/0.20 0.60 0.35 1.30
    22 1/0.65 0.65 0.35 1.35 56.4 305(1000)
    7/0.254 0.76 0.35 1.46
    19/0.15 0.75 0.35 1.45
    20 1/0.81 0.81 0.35 1.55 35.2 305(1000)
    7/0.31 0.93 0.35 1.63
    19/0.19 0.93 0.35 1.63
    18 1/1.02 1.02 0.35 1.72 22.2 305(1000)
    7/0.39 1.17 0.35 1.87
    19/0.235 1.17 0.35 1.87
    17 19/0.26 1.30 0.35 2.00 17.6 305(1000)
    16 1/1.30 1.30 0.35 2.00 14 305(1000)
    7/0.49 1.47 0.35 2.17
    19/0.30 1.50 0.35 2.20
    14 19/0.37 1.85 0.35 2.55 8.78 305(1000)
    12 19/0.47 2.35 0.35 3.05 5.53 305(1000)
    10 19/0.61 3.01 0.35 3.71 3.476 305(1000)









    Service:

    Shipment:

    1. by express

    2. by sea



    Payment terms:

    LC, TT, Western Union, Money Gram and PayPal



    Delivery:

    Sample order: 1-3 working days

    Big order: 5-10 working days

    Customized order: 10-15 working days
