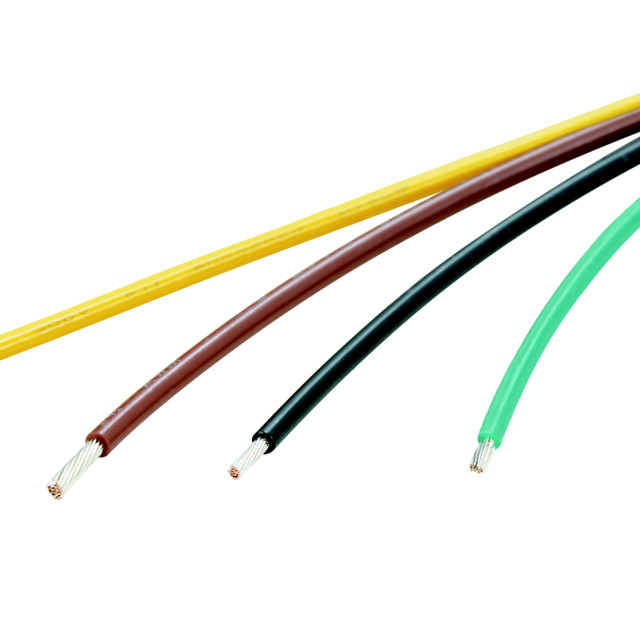

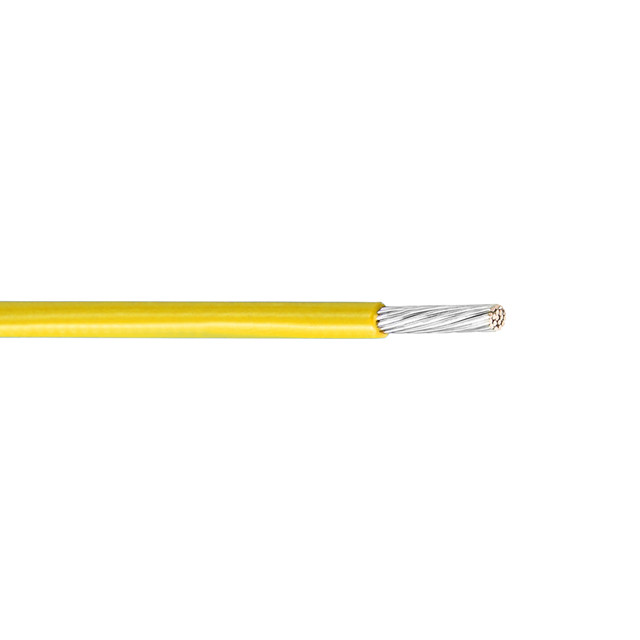

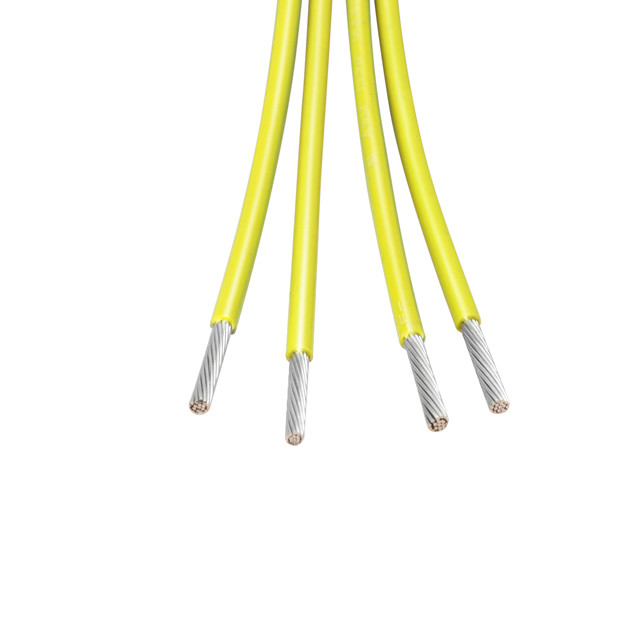

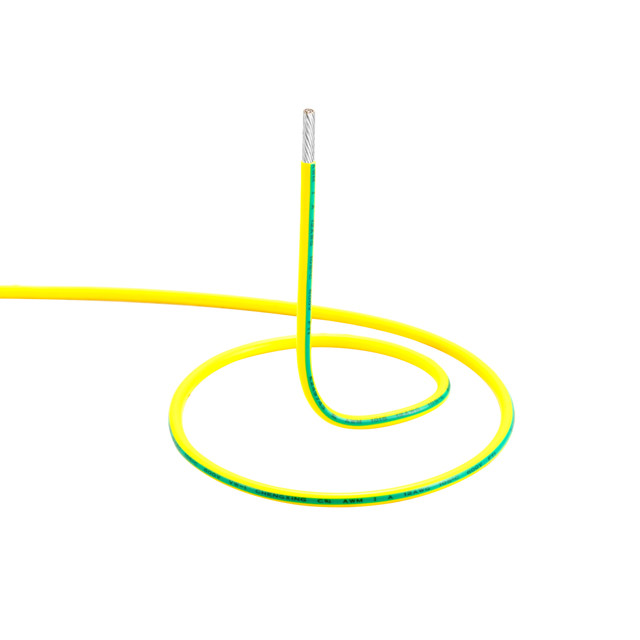

20/22/24awg UL1330 high temperature Insulated Wire 200C 600V

  • 20/22/24awg UL1330 high temperature Insulated Wire 200C 600V
  • 20/22/24awg UL1330 high temperature Insulated Wire 200C 600V
  • 20/22/24awg UL1330 high temperature Insulated Wire 200C 600V
  • 20/22/24awg UL1330 high temperature Insulated Wire 200C 600V
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1330
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 200℃
Insulation FEP Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
High Light

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

insulated wire UL1330



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.Cond Resistance
(Ω/KM)		 Unit length
(M)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 1/0.26 0.26 0.305 0.87 361 610/2000
7/0.10 0.30 0.305 0.91
28 1/0.32 0.32 0.305 0.93 227 610/2000
7/0.12 0.36 0.305 0.97
26 7/0.16 0.48 0.305 1.09 143 610/2000
19/0.10 0.48 0.305 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610/2000
7/0.20 0.60 0.305 1.21
19/0.12 0.60 0.305 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305/1000
7/0.254 0.76 0.33 1.42
19/0.15 0.75 0.33 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305/1000
7/0.31 0.96 0.33 1.59
19/0.19 0.93 0.33 1.59
18 1/1.12 1.02 0.33 1.68 22.2 305/1000
7/0.39 1.17 0.33 1.83
19/0.235 1.17 0.33 1.83
16 1/1.30 1.30 0.33 1.96 14 305/1000
7/0.49 1.47 0.33 2.13
19/0.30 1.50 0.33 2.16
14 1/0.81 1.85 0.33 2.51 8.78 305/1000
12 7/0.31 2.35 0.33 3.01 5.53 305/1000
10 19/0.19 3.05 0.33 3.71 3.476 305/1000











Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
