Super Flexible Silicone Insulated Hook Up Wire 600V 200C Soft High Temperature Resistance UL3135

  • Super Flexible Silicone Insulated Hook Up Wire 600V 200C Soft High Temperature Resistance UL3135
  • Super Flexible Silicone Insulated Hook Up Wire 600V 200C Soft High Temperature Resistance UL3135
  • Super Flexible Silicone Insulated Hook Up Wire 600V 200C Soft High Temperature Resistance UL3135
Place of Origin China
Brand Name Mysun
Certification UL, cUL, CSA, RoHS, REACH
Model Number UL3135
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Delivery Time 5-8 working days
Payment Terms T/T,L/C
Supply Ability 300km per day
Product Details
Rated Voltage 600V Rated Temperature 200°C
Standard UL758 Insulation Silicone Rubber
Conductor Tinned Copper Flame Test FT-2 (VW-1 Optional)
Flexing Test 30,000-100,000 Cycles Size Range 26 AWG - 12 AWG
Color All Colors Available
Highlight

silicone insulated hook up wire

,

flexible insulated wire 600V

,

high temperature resistance hook up wire
Leave a Message
Product Description

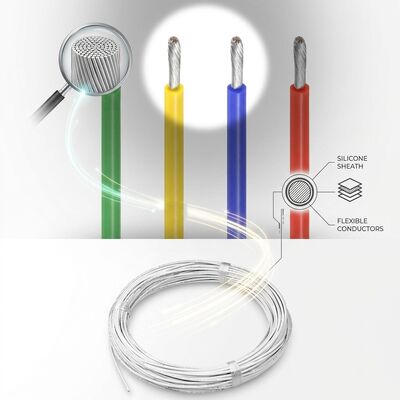

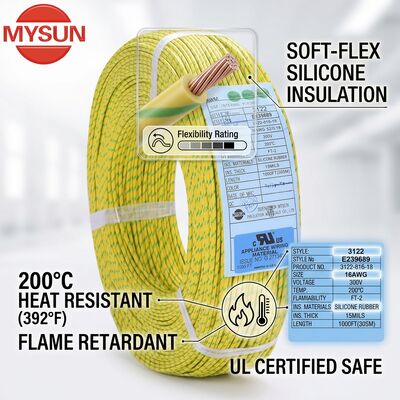

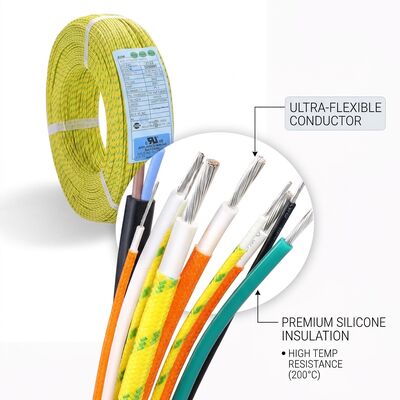

Super Flexible Silicone Insulated Hook Up Wire 600V 200°C
The Super Flexible Silicone Insulated Hook Up Wire from Mysun is a premium-grade single conductor cable engineered for applications requiring both extreme softness for effortless routing and robust heat resistance for long-term reliability. Rated at 600V and 200°C, this UL3135 series wire combines a finely stranded tinned copper conductor with smooth silicone rubber insulation, delivering wiring that bends like textile yet protects like industrial-grade cable.
Key Features
  • Ultra-Soft Flexibility: High-elasticity silicone rubber insulation and fine-stranded conductor allow repeated bending without cracking (30,000-100,000 cycles at 90-180° swing angles)
  • High Temperature Resistance: Continuous operating temperature up to 200°C maintains stable performance in ovens, motors, lamps, and heat-generating equipment
  • Smooth Touch Surface: Soft, non-abrasive silicone jacket glides through conduits and tight spaces during installation
  • Flame Retardant: 100% passes FT-2 flame test with VW-1 rated versions available
  • Superior Conductor: Tinned copper resists oxidation and corrosion for stable current carrying capacity
  • Wide Size Range: Available from 26 AWG to 12 AWG (0.30 mm² to 2.50 mm²)
  • Full Color Options: All colors available for circuit identification and professional wiring aesthetics
  • Environmental Compliance: RoHS, REACH and PAHs compliant for household appliances and medical equipment
Technical Specifications
Parameter Specification
Product Name Super Flexible Silicone Insulated Hook Up Wire
Model Series UL3135
Rated Voltage 600V
Rated Temperature 200°C
Standard UL758
Insulation Material Silicone Rubber
Conductor Material Tinned Copper (Nickel Plated Copper Optional)
Insulation Thickness 0.78 mm
Max. Conductor Resistance 5.53 Ω/km (12 AWG) to 143 Ω/km (26 AWG)
Flame Test FT-2 100% Pass (VW-1 Optional)
Flexing Test 30,000-100,000 Cycles (90-180° Swing)
Available Colors All Colors Available
Certifications UL, cUL, CSA, RoHS, REACH
Applications
This silicone hook up wire is ideal for internal wiring in home appliances such as ovens, rice cookers, induction cookers, and coffee machines where heat and tight routing space coexist. Suitable for battery energy storage systems, LED lighting fixtures, motors and generators, industrial control cabinets, office equipment, and medical devices. Maintenance teams favor this wire for re-wiring and repair work due to its easy stripping and bending capabilities.
Packaging & Quality Assurance
Standard packaging: 305 meters per roll or 3050 meters per reel, with customized lengths available. Every production lot undergoes 100% testing for flame retardancy, conductor resistance, and insulation integrity. Samples delivered within 1-3 working days, bulk orders shipped within 5-10 working days, and customized orders within 10-15 working days. Backed by UL, cUL and CSA certifications and Mysun quality management system.
