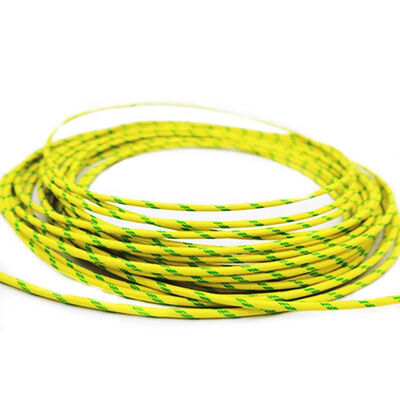

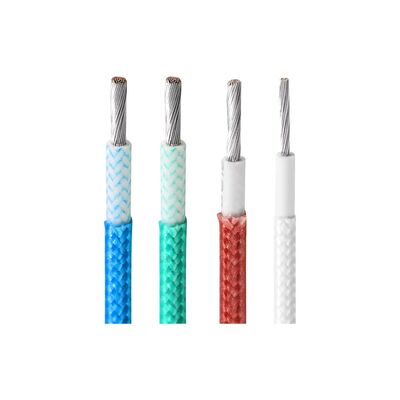

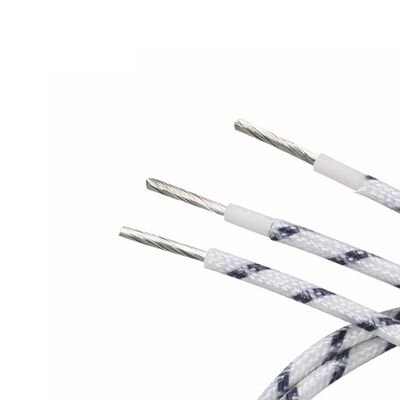

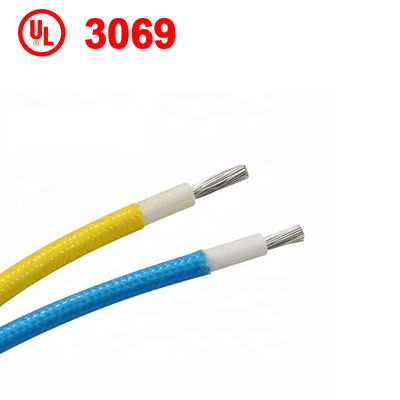

UL3069 Heat Resistant Wire with 600V Rated Voltage 150C Temperature Rating and Tinned Copper Conductor
Product Details
| Conductor Material | Copper | Diameter | 20AWG, 22AWG, 24AWG, 26AWG |
|---|---|---|---|
| Insulation Material | Rubber | Rated Voltage | 600V |
| Conductor Type | Stranded | Temperature Rating | 150C |
| Insulation Type | Insulated | Conductor | Tinned Copper |
| Insulation | Silicone Rubber | Rated Temperature | 150 Degree |

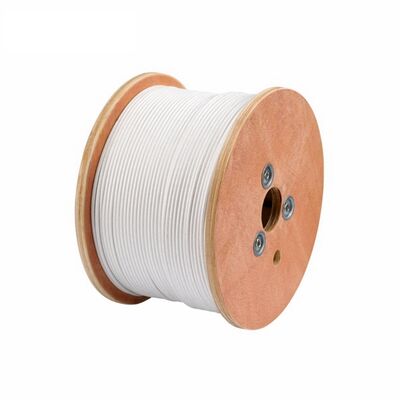

| Package Length | 305 Meter/roll | Conductor Construction | 7/0.16 (26AWG), 7/0.20 (24AWG), 7/0.254 (22AWG), 7/0.31 (20AWG) |
| Conductor Diameter | 0.48mm (26AWG), 0.61mm (24AWG), 0.77mm (22AWG), 0.94mm (20AWG) | Insulation Thickness | 0.93mm |
| Max Conductor Resistance | 150Ω/KM (26AWG), 94.2Ω/KM (24AWG), 59.4Ω/KM (22AWG), 36.7Ω/KM (20AWG) | ||
| Highlight | 600V Rated Voltage Silicone Fiberglass Braided Wire,150C Temperature Rating UL3069 Wire,Tinned Copper Conductor Heat Resistant Wire |
||
Product Description
UL3069 Heat Resistant Wire 600V 150°C Silicone Fiberglass Braid
Seeking Country Agents for a Win-Win Partnership
Product Overview
High-temperature silicone rubber insulated wire with fiberglass braid, rated for 600V and 150°C continuous operation.
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.93 | 2.34 | 150 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.93 | 2.47 | 94.2 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.93 | 2.63 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.93 | 2.80 | 36.7 | 305/1000 |
Company Profile
Professional manufacturer of high-temperature wires and cables with 26 years of electrical wire experience.
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
