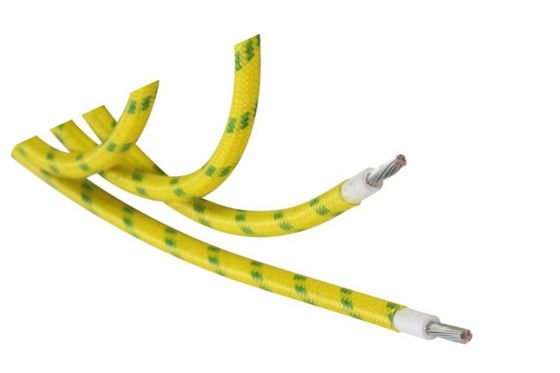

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness

  • Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness
  • Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness
  • Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness
  • Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL3550
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Tinned Copper Or Bare Copper
Size 22-12AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 10000V Working Temp 200V
Use In Coffee Maker, Oven And Other Home Appliance SPQ 305m/roll
Package Reel, Carton, Pallet Jacket Fiberglass Braided
High Light

braided insulated wire

,

insulated braided copper wire
Leave a Message
Product Description

Fiberglass braided wire UL3550 for home appliance wiring harness



Specification:

Rated voltage: 10000V

Rated temperature: 200C

UL standard: UL758

Applications: this wire widely sued for home appliance, heaters and etc.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
22 7/0.254 0.77 1.17 3.11 56.4 305/1000
20 7/0.31 0.92 1.17 3.26 35.2
18 7/0.39 1.19 1.17 3.53 22.2
16 7/0.49 1.49 1.17 3.83 14
14 41/0.254 1.87 1.22 4.31 8.78
12 65/0.254 2.36 1.22 4.8 5.53



Cable details:

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness 0

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness 1

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness 2

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness 3

Heat Resistant Fiberglass Braided Wire UL3550 For Home Appliance Wiring Harness 4



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
