Silicone Wire UL3135 600V 200C High Temperature Electric Cable with Tinned Copper for Intelligent Appliance
Product Details
| Conductor Material | Copper | Diameter | 12 AWG, 20 AWG, 22 AWG, 8 AWG, 24 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 2 AWG, 4 AWG, 26AWG 28AWG 30AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600V |

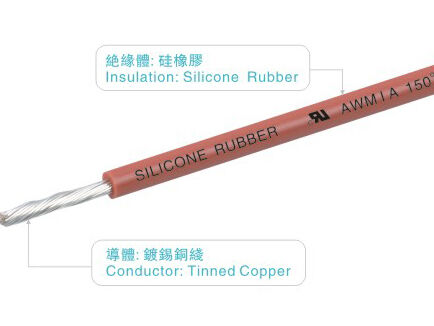

| Conductor Type | Tinned Copper | Shape | Round |
| Temperature | 200C | Type | Insulated |
| Max Conductor Resistance | 143 Ω/KM (26AWG), 89.3 Ω/KM (24AWG), 56.4 Ω/KM (22AWG), 35.2 Ω/KM (20AWG), 22.2 Ω/KM (18AWG), 14 Ω/KM (16AWG) | Unit Length | 305M/1000Ft |
| Conductor Construction | 7/0.16mm (26AWG), 7/0.20mm (24AWG), 7/0.254mm (22AWG), 7/0.31mm (20AWG), 7/0.39mm (18AWG), 7/0.49mm (16AWG) | Insulation Thickness | 0.78mm |
| Insulation Diameter | 2.04mm (26AWG), 2.17mm (24AWG), 2.33mm (22AWG), 2.5mm (20AWG), 2.75mm (18AWG), 3.05mm (16AWG) | Conductor Diameter | 0.48mm (26AWG), 0.61mm (24AWG), 0.77mm (22AWG), 0.94mm (20AWG), 1.19mm (18AWG), 1.49mm (16AWG) |
| Rated Temperature | 200℃ | ||
| Highlight | 600V Silicone Wire,200C Silicone Insulated Wire,Tinned Copper High Temperature Electric Cable |
||
Product Description
Silicone Wire UL3135 600V 200°C High Temperature Electric Cable
Seeking Country Agents for a Win-Win Partnership
Product Overview
High-temperature silicone wire designed for intelligent appliances, featuring UL3135 certification, 600V rating, and 200°C operating temperature. Available in multiple AWG sizes from 16AWG to 26AWG.

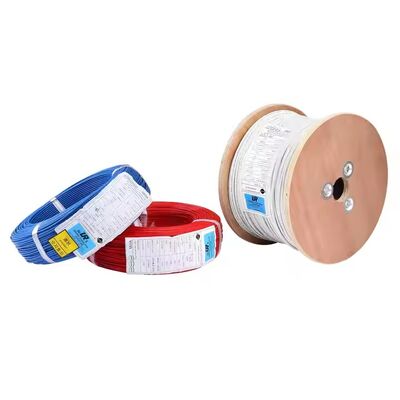

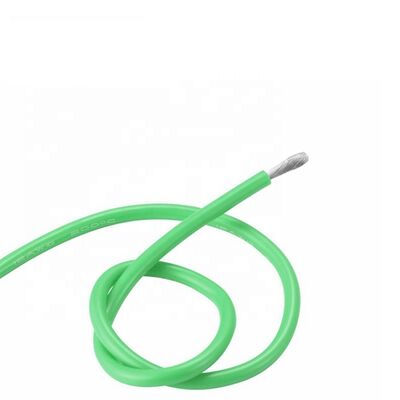

Product Images

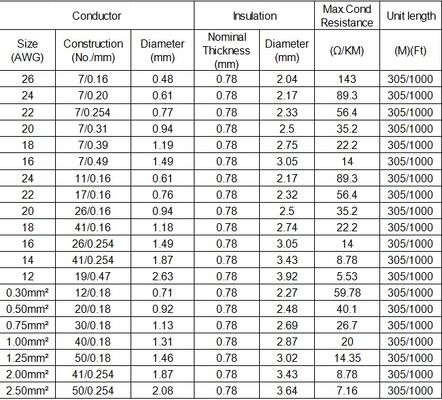

Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | 305/1000 |
Applications
Ideal for intelligent appliances, high-temperature environments, and electrical applications requiring flexible, heat-resistant wiring solutions.

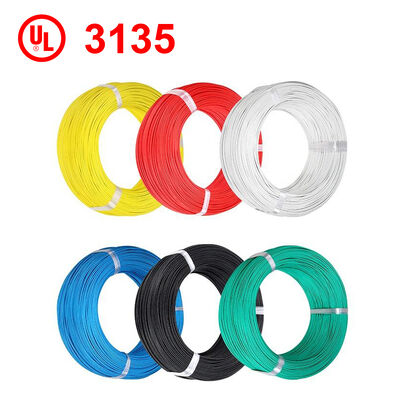

Product Range
Packaging
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holidays during May 1-3, Oct 1-7 and Chinese New Year. Please email us during our holidays if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. The buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
