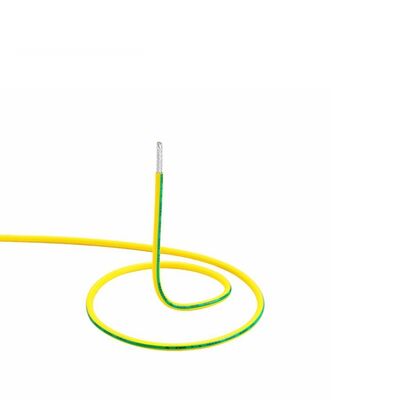

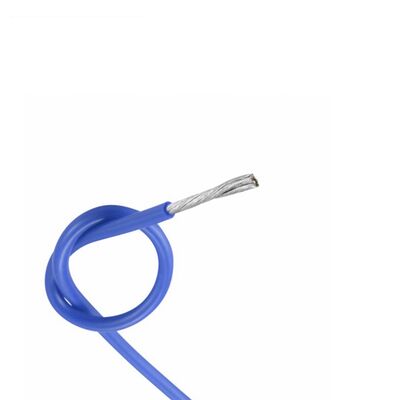

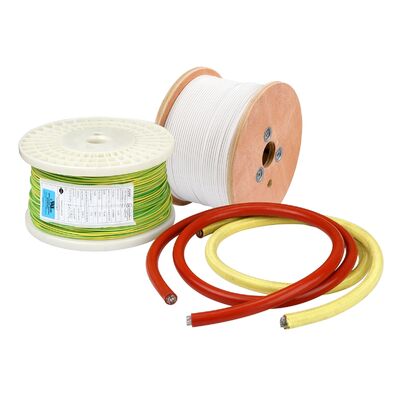

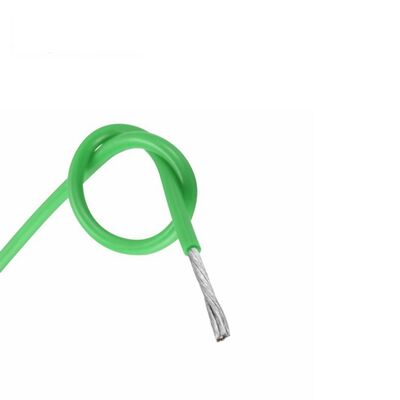

VDE(N)2GFAF 180C 300V High Temperature Silicone Insulated Wire with Tinned Copper for Home Appliances
Product Details
| Conductor Material | Copper | Conductor Type | Stranded |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 300 V |
| Max Temperature | 180℃ | Wire Shape | Round |
| Conductor Diameter | 0.25mm2, 0.35mm2, 0.5mm2, 0.75mm2, 1mm2, 1.25mm2, 1.5mm2, 1.75mm2, 2mm2, 2.25mm2, 4mm2, 6mm2 | Nominal Thickness | 0.6mm, 0.7mm, 0.8mm |
| Max Conductor Resistance | 188Ω/KM, 80.29Ω/KM, 55Ω/KM, 40.1Ω/KM, 26.7Ω/KM, 20Ω/KM, 13.7Ω/KM, 7.16Ω/KM, 4.7Ω/KM | Unit Length | 305m (1000ft) |
| Conductor Construction | 7/0.14, 14/0.15, 20/0.15, 20/0.18, 30/0.18, 32/0.2, 30/0.254, 50/0.254, 56/0.305, 84/0.305 | Insulation Diameter | 1.64mm, 1.85mm, 1.95mm, 2.15mm, 2.33mm, 2.51mm, 3mm, 3.68mm, 4.25mm, 4.84mm |
| Conductor Resistance | 188Ω/KM, 80.29Ω/KM, 55Ω/KM, 40.1Ω/KM, 26.7Ω/KM, 20Ω/KM, 13.7Ω/KM, 7.16Ω/KM, 4.7Ω/KM | Wire Color | Customer Requirements |
| Standards Compliance | UL758 | ||
| Highlight | 180C Silicone Insulated Wire,300V High Temperature Wire,Tinned Copper Silicone Rubber Wire |
||
Product Description

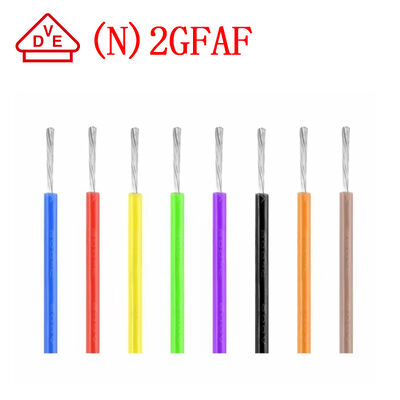

VDE(N)2GFAF 180°C 300V High Temperature Silicone Wire Cable
Professional high-temperature silicone wire cable designed for home appliances and industrial applications.
Product Specifications
| Size (mm²) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 0.1 | 7/0.14 | 0.44 | 0.6 | 1.64 | 188 | 610/2000 |
| 0.25 | 14/0.15 | 0.65 | 0.6 | 1.85 | 80.29 | |
| 0.35 | 20/0.15 | 0.75 | 0.6 | 1.95 | 55 | |
| 0.5 | 20/0.18 | 0.95 | 0.6 | 2.15 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.6 | 2.33 | 26.7 | |
| 1 | 32/0.2 | 1.31 | 0.6 | 2.51 | 20 | |
| 1.5 | 30/0.254 | 1.6 | 0.7 | 3 | 13.7 | |
| 2.5 | 50/0.254 | 2.08 | 0.8 | 3.68 | 7.16 | |
| 4 | 56/0.305 | 2.65 | 0.8 | 4.25 | 4.7 | |
| 6 | 84/0.305 | 3.24 | 0.8 | 4.84 | 4.7 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
