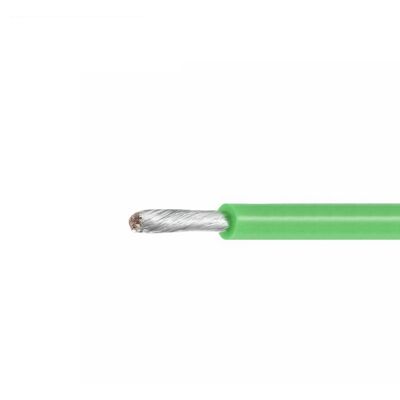

UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters

  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
  • UL3137 600V 150C Tinned Copper Silicone Rubber Insulated Wire for Garment Steamers and Heaters
Place of Origin Guangdong, China
Brand Name MYSUN
Certification ROHS/CCC/VDE/CCC/UL
Model Number UL3137
Minimum Order Quantity 3050
Price $0.12-0.38
Product Details
Conductor Material Tinner Copper Diameter 20 AWG, 22 AWG, 24 AWG, 26AWG
Insulation Material Silicone Rubber Rated Voltage 600 V
Conductor Type Stranded Temperature Rating 150C
Insulation Thickness 1.15 Mm Max Conductor Resistance 36.7-150 Ω/KM
Unit Length 305 Meter/roll Conductor Construction 7/0.16-7/0.31
Conductor Diameter 0.48-0.94 Mm Insulation Diameter 2.78-3.24 Mm
Wire Type UL3137 Strand Count 7
Wire Color Customizable
Highlight

600V Silicone Rubber Wire

,

150C UL3137 Wire

,

Tinned Copper Insulated Wire
Leave a Message
Product Description
UL3137 600V 150C Silicone Rubber Garment Steamer Wire
Premium silicone rubber insulated wire designed for garment steamers and high-temperature applications with UL3137 certification.
Product Overview
We are seeking country agents for mutually beneficial partnerships in distributing our high-quality electrical wires.
UL3137 silicone rubber garment steamer wire product display
Technical Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M/Ft)
26 7/0.16 0.48 1.15 2.78 150 305/1000
24 7/0.20 0.61 1.15 2.91 94.2 305/1000
22 7/0.254 0.77 1.15 3.07 59.4 305/1000
20 7/0.31 0.94 1.15 3.24 36.7 305/1000
Click to Contact Us for a Competitive Quote
Company Profile
Manufacturing facility and company overview Production capabilities and technology
Our Product Range
Complete range of high-temperature wires and cables
Applications
Industrial applications of silicone rubber wires
Global Client Network
Our international clients and distribution network
Industry Exhibitions
Trade show participation and industry presence
Quality Certifications
UL, VDE, CE, ROHS and other quality certifications
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing, silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
