Super Flexible Silicone Rubber Insulated Wire For Heater UL 3138 Abrasion Proof

Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL 3138
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 150℃
Conductor Tinned Copper Insulation Silicone Rubber
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Size 9-18awg
Type Flexible Cable Customize OEM/ODM
Custom Printing Yes
High Light

heat resistant electrical cable

,

high temperature heater wire

Leave a Message
Product Description

flexible UL 3138 Silicone Rubber Insulated Wire tinned copper wire



specifications



Retad voltage 300V
Retad temperature 150°C
Insulation silicone rubber
Conductor tinned copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
Size awg18,16,14,12,10,9
M/FT 305/1000
Color white,black,red,brown,yellow,blue,green,transparent etc.



Product dimensions

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
18 7/0.39 1.19 1.15 3.49 22.2 200/656
16 7/0.49 1.49 3.79 14
14 41/0.254 1.87 4.17 8.78
12 19/0.47 2.36 4.66 5.53
10 19/0.61 3.06 5.36 3.476 100/328
9 84/0.32 3.38 5.68 2.73



Industries That Utilize Silicone Insulated Wire
Due to such reasons, wires with silicone insulation are preferred for applications in a number of industries.

Some of the primary industries are given below.

  • Automotive: The automotive industry is well-known for utilizing high temperature wires. The areas where wires are primarily used are the engine and battery. These application areas are hostile, comprising tight spaces, high temperatures, and proximity to harsh fluids and chemicals. These applications are ideal for silicone insulated wires. The wire’s general operating temperature is from -50 to 200°C. Silicone also has the capability to handle corrosive chemicals and fluids.
  • Medical: Medical device manufacturers take advantage of silicone’s immense flexibility, and high resistance to chemicals. The material is primarily used in applications that require certain levels of sterility. Silicone insulated wire can support the effective functioning of implants, machine sensors, and medical robotics. They are also being used in medical electronic hand held devices like electronic pulse massagers, automated immunoassays, and patient assessment devices.
  • Aerospace: Wires and cables used in aerospace applications need to be free of smoke and halogens. For this industry, wire manufacturers provide military grade silicone wires, which emit low smoke and halogen emissions. They are mainly used for application such as avionics, airframes, and electronic systems with tight spaces.
  • Automation: The automation industry consists of application areas such as robotic equipment, linear motor stages, packaging equipment, and multi-axis motion systems. These equipment require high strength wires and cables that can undergo repetitive flexing, and are resistant to harsh chemicals. Silicone cables can be used to provide the appropriate amount of flexibility for static as well as dynamic applications. With a high resistance to corrosion and chemicals, the cables can easily meet the demands of the automation industry.

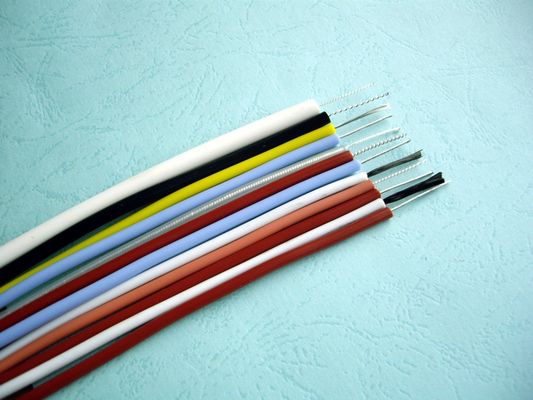

Super Flexible Silicone Rubber Insulated Wire For Heater UL 3138 Abrasion Proof 0

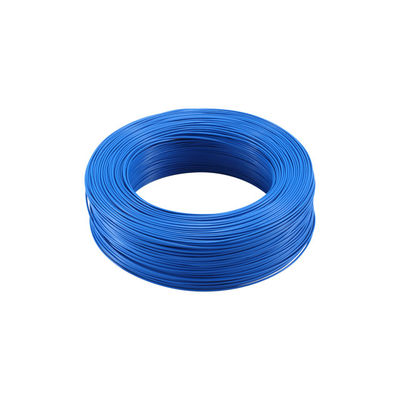

Super Flexible Silicone Rubber Insulated Wire For Heater UL 3138 Abrasion Proof 1

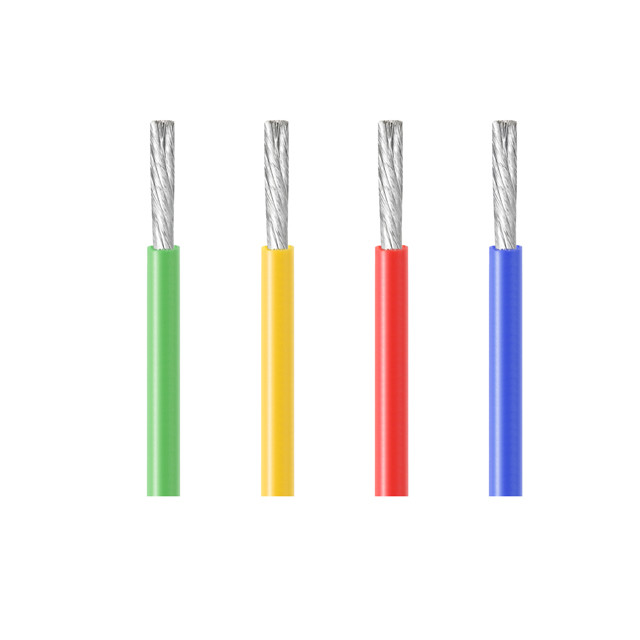

Super Flexible Silicone Rubber Insulated Wire For Heater UL 3138 Abrasion Proof 2

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
