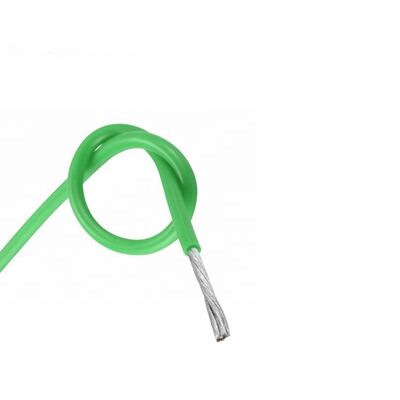

UL3142 150C 600V 12AWG Tinned Copper Silicone Rubber Insulated Wire for Appliances
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinner Copper | Diameter | 12 AWG, 14 AWG, 16 AWG, 18 AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600 V |
| Conductor Type | Stranded | Temperature Rating | 150C |
| Conductor Construction | 7/0.39 (18AWG), 7/0.49 (16AWG), 41/0.254 (14AWG), 19/0.47 (12AWG) | Insulation Thickness | 1.60 Mm (18AWG) |
| Max Conductor Resistance | 23.2 Ω/KM (18AWG), 14.6 Ω/KM (16AWG), 8.96 Ω/KM (14AWG), 5.64 Ω/KM (12AWG) | Unit Length | 305 Meter/roll |
| Conductor Diameter | 1.19 Mm (18AWG), 1.49 Mm (16AWG), 1.87 Mm (14AWG), 2.36 Mm (12AWG) | Insulation Diameter | 4.39 Mm (18AWG), 4.69 Mm (16AWG), 5.07 Mm (14AWG), 5.56 Mm (12AWG) |
| UL Standard | UL3142 | Color Options | Customizable |
| Package Quantity | 305 Meter/roll | ||
| Highlight | 150C Silicone Rubber Insulated Wire,600V UL3142 Wire,12AWG Tinned Copper Wire |
||
Product Description
UL3142 150C 600V 12AWG 14AWG 16AWG 18AWG Tinner Copper Silicone Rubber Blenders Wire
Seeking Country Agents for a Win-Win Partnership
We are looking for international distributors and agents to represent our high-quality silicone rubber wires globally.
Product Specifications
| Conductor | Construction (No./mm) | Diameter (mm) | Insulation Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|
| 18 AWG | 7/0.39 | 1.19 | 1.60 | 4.39 | 23.2 | 305/1000 |
| 16 AWG | 7/0.49 | 1.49 | 1.60 | 4.69 | 14.6 | 305/1000 |
| 14 AWG | 41/0.254 | 1.87 | 1.60 | 5.07 | 8.96 | 305/1000 |
| 12 AWG | 19/0.47 | 2.36 | 1.60 | 5.56 | 5.64 | 305/1000 |
