UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors

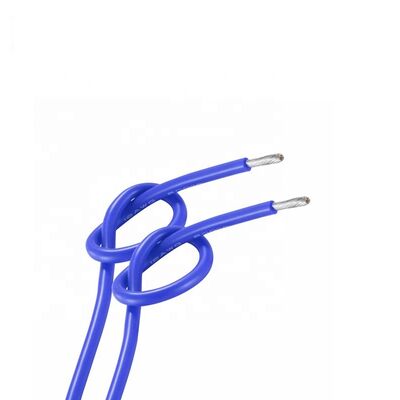

  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors

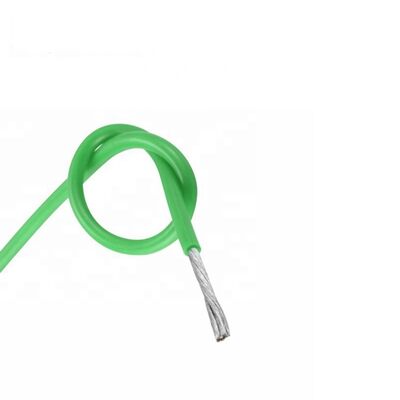

  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors

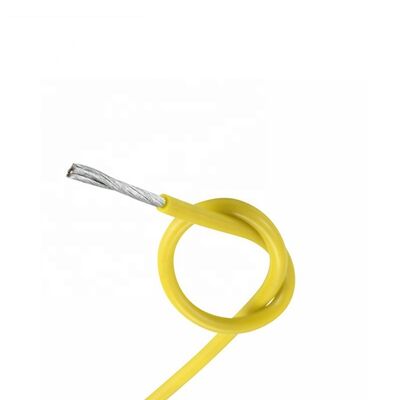

  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors

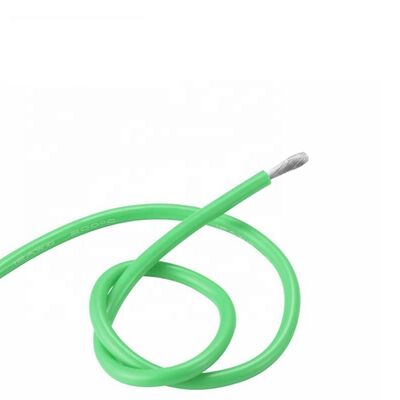

  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors

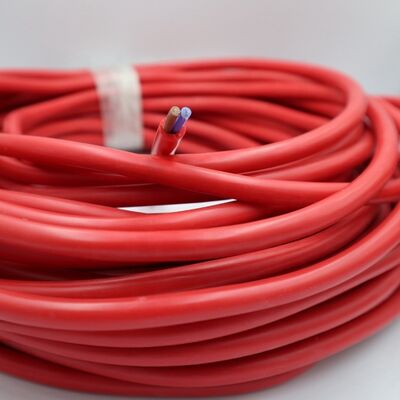

  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors
  • UL3134 600V 150C Silicone Rubber Wire with Tinned Copper Conductor for Home Appliances and Motors
Place of Origin Guangdong, China
Brand Name MYSUN
Certification UL RoHS CE CCC cUL
Model Number UL3134
Minimum Order Quantity 305
Product Details
Conductor Material Tinned Copper Wire Diameter 16 AWG, 18 AWG, 14 AWG, 12 AWG
Insulation Material Silicone Rated Voltage 600 V
Conductor Type Stranded Type Insulated
Conductor Construction 41/0.16 (18 AWG), 26/0.254 (16 AWG), 41/0.254 (14 AWG), 19/0.47 (12 AWG) Conductor Diameter 1.18 Mm (18 AWG), 1.49 Mm (16 AWG), 1.87 Mm (14 AWG), 2.63 Mm (12 AWG)
Insulation Thickness 0.80 Mm Overall Diameter 2.78 Mm (18 AWG), 3.09 Mm (16 AWG), 3.47 Mm (14 AWG), 3.96 Mm (12 AWG)
Max Conductor Resistance 23.2 Ω/KM (18 AWG), 14.6 Ω/KM (16 AWG), 8.96 Ω/KM (14 AWG), 5.64 Ω/KM (12 AWG) Unit Length 305/1000 M (Ft)
Temperature Rating 150C Jacket Material Silicone
Color Options Optional
Highlight

600V Rated Voltage Silicone Rubber Wire

,

150C Temperature Rating UL3134 Wire

,

Tinned Copper Conductor Silicone Insulated Wire
Leave a Message
Product Description
UL3134 600V 150°C 12-18 AWG Silicone Rubber Wires
Seeking Country Agents for a Win-Win Partnership
Product Overview
High-quality silicone rubber insulated wires designed for home appliances and motor applications, rated for 600V and 150°C operation.
UL3134 silicone rubber wire product display UL3134 silicone rubber wire close-up
Technical Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M/Ft)
18 41/0.16 1.18 0.80 2.78 23.2 305/1000
16 26/0.254 1.49 0.80 3.09 14.6 305/1000
14 41/0.254 1.87 0.80 3.47 8.96 305/1000
12 19/0.47 2.63 0.80 3.96 5.64 305/1000
Click contact us for a competitive quote
Product Gallery
UL3134 wire manufacturing process UL3134 wire quality inspection UL3134 wire applications UL3134 wire in motor applications UL3134 wire flexibility demonstration UL3134 wire heat resistance testing UL3134 wire packaging UL3134 wire spool packaging UL3134 wire color options UL3134 wire size comparison UL3134 wire certification marks UL3134 wire technical documentation
Company Profile
Manufacturing facility overview Production base location map Company headquarters building Manufacturing equipment and technology
Our Overseas Clients
International client partnerships and distribution network Global customer testimonials and collaborations
Exhibition
Industry trade show participation and exhibitions Product showcase at international exhibitions
Certifications
UL, VDE, CE, ROHS and other quality certifications International compliance and safety certifications
Frequently Asked Questions
Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
