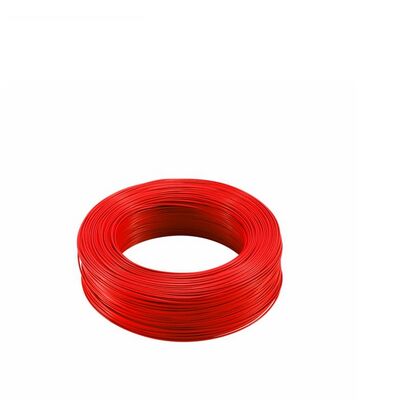

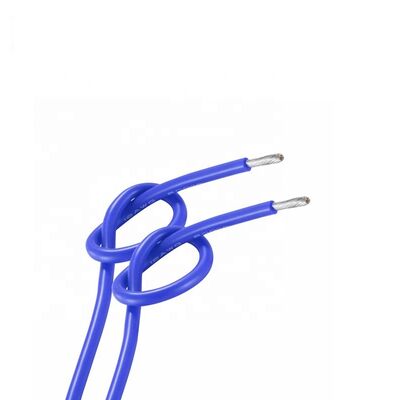

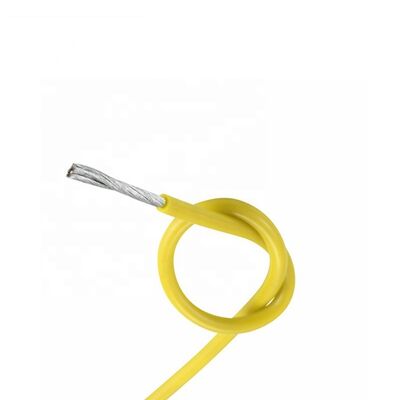

UL3138 150C 600V Tinned Copper Silicone Rubber Insulated Dryer Wire for Appliances
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinner Copper | Diameter | 12 AWG, 14 AWG, 16 AWG, 18 AWG, 9AWG, 10AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600V |
| Conductor Type | Stranded | Temperature Rating | 150C |
| Conductor Resistance | 23.2 Ω/KM (18AWG), 14.6 Ω/KM (16AWG), 8.96 Ω/KM (14AWG), 5.64 Ω/KM (12AWG), 3.55 Ω/KM (10AWG), 2.82 Ω/KM (9AWG) | Insulation Thickness | 1.15mm (18AWG) |
| Overall Diameter | 3.49mm (18AWG), 3.79mm (16AWG), 4.17mm (14AWG), 4.66mm (12AWG), 5.36mm (10AWG), 5.68mm (9AWG) | Conductor Diameter | 1.19mm (18AWG), 1.49mm (16AWG), 1.87mm (14AWG), 2.36mm (12AWG), 3.06mm (10AWG), 3.38mm (9AWG) |
| Conductor Construction | 7/0.39 (18AWG), 7/0.49 (16AWG), 41/0.254 (14AWG), 19/0.47 (12AWG), 19/0.61 (10AWG), 84/0.32 (9AWG) | Unit Length | 305 Meter/roll |
| Max Conductor Resistance | 23.2 Ω/KM (18AWG) | Wire Type | Insulated |
| Standard | UL3135 | ||
| Highlight | 150C Silicone Rubber Insulated Wire,600V Dryer Wire,Tinned Copper UL3138 Wire |
||
Product Description
UL3138 150C 600V 9-18AWG Tinner Copper Silicone Rubber Dryer Wire
Seeking Country Agents for a Win-Win Partnership
Product Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 18 | 7/0.39 | 1.19 | 1.15 | 3.49 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 3.79 | 14.6 | ||
| 14 | 41/0.254 | 1.87 | 4.17 | 8.96 | ||
| 12 | 19/0.47 | 2.36 | 4.66 | 5.64 | ||
| 10 | 19/0.61 | 3.06 | 5.36 | 3.55 | ||
| 9 | 84/0.32 | 3.38 | 5.68 | 2.82 |
Click contact us for a competitive quote
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
