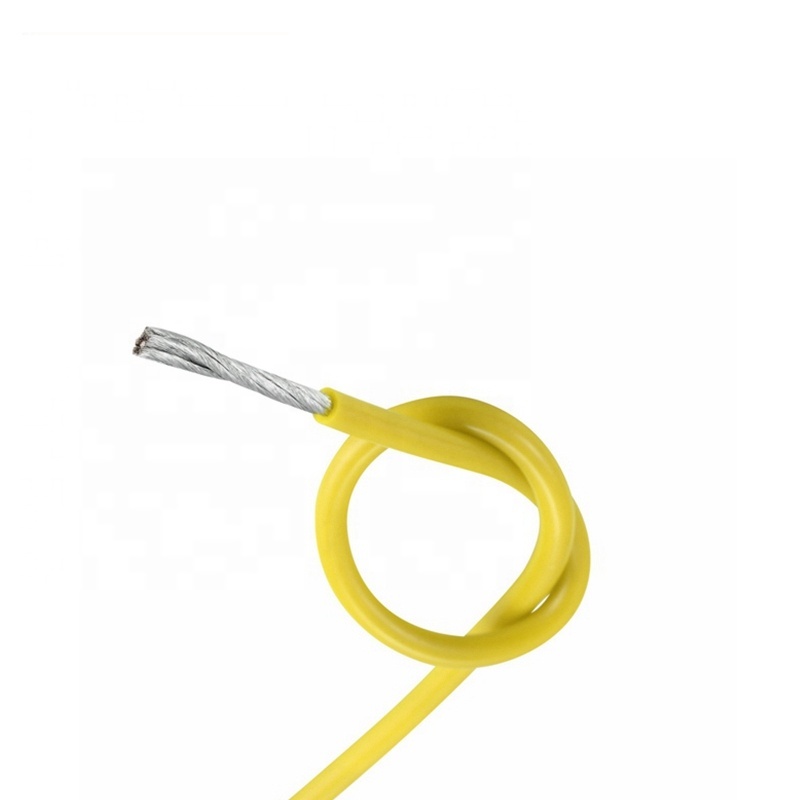

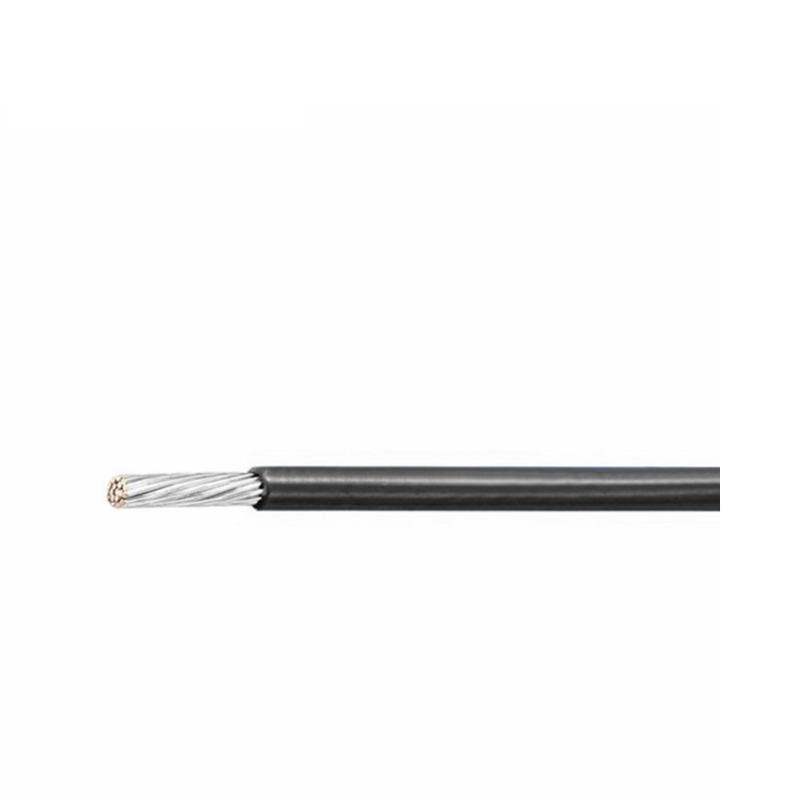

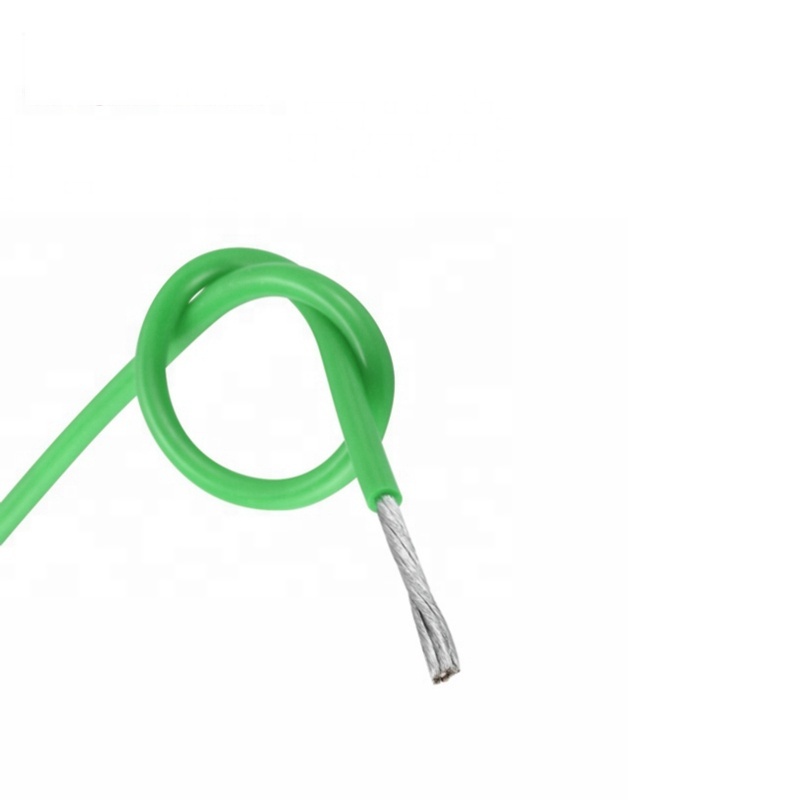

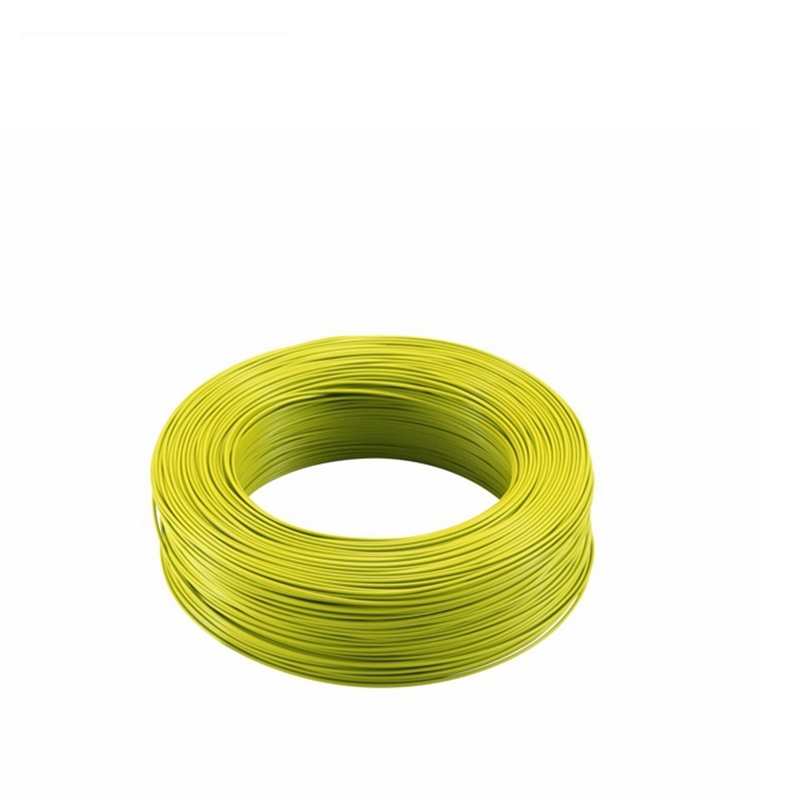

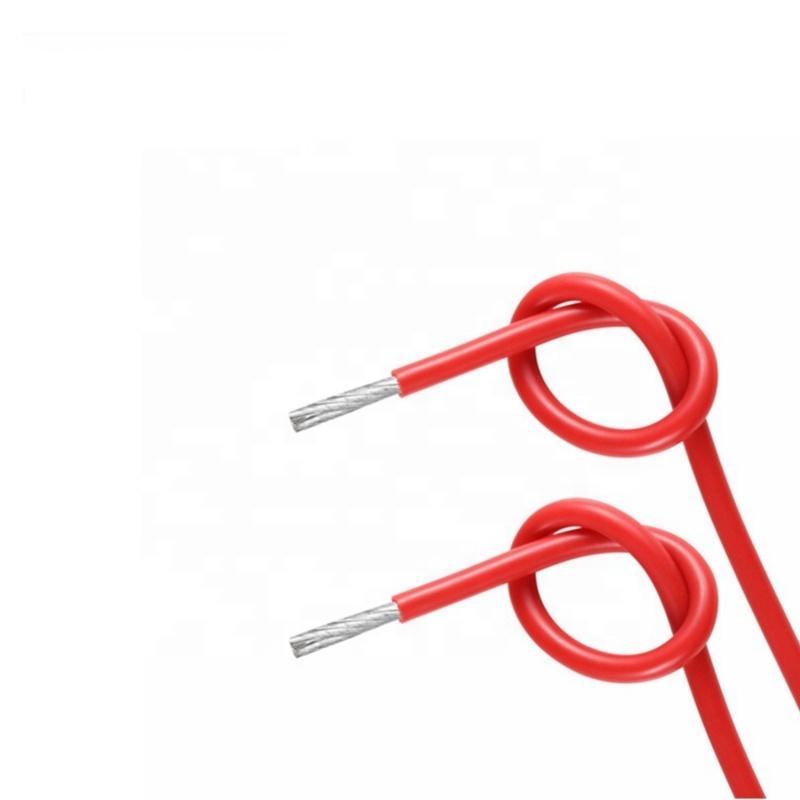

UL3141 600V 150C Tinned Copper Silicone Rubber Heater Wire for Appliances
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinner Copper | Wire Diameter | 20 AWG, 22 AWG, 24 AWG, 26 AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600 V |
| Conductor Type | Stranded | Max Temperature | 150C |
| Conductor Construction | 7/0.16 (26AWG), 7/0.20 (24AWG), 7/0.254 (22AWG), 7/0.31 (20AWG) | Conductor Diameter | 0.48mm (26AWG), 0.61mm (24AWG), 0.77mm (22AWG), 0.94mm (20AWG) |
| Insulation Thickness | 1.60mm | Overall Diameter | 3.68mm (26AWG), 3.81mm (24AWG), 3.97mm (22AWG), 4.14mm (20AWG) |
| Conductor Resistance | 150Ω/KM (26AWG), 94.2Ω/KM (24AWG), 59.4Ω/KM (22AWG), 36.7Ω/KM (20AWG) | Unit Length | 305 Meter/roll |
| Standard | UL3141 | Color Options | Customizable |
| Base Material | Standard Copper | ||
| Highlight | 600V Silicone Rubber Heater Wire,150C Silicone Rubber Insulated Wire,Tinned Copper UL3141 Heater Wire |
||
Product Description
UL3141 600V 150C Tinned Copper Silicone Rubber Heater Wire
Available in 20AWG, 22AWG, 24AWG, and 26AWG configurations for versatile heating applications.
Seeking Country Agents for a Win-Win Partnership
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 1.60 | 3.68 | 150 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 1.60 | 3.81 | 94.2 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 1.60 | 3.97 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 1.60 | 4.14 | 36.7 | 305/1000 |
Click contact us for a competitive quote
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition Participation
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquarters in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
