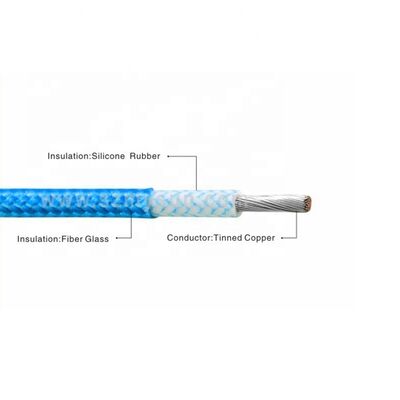

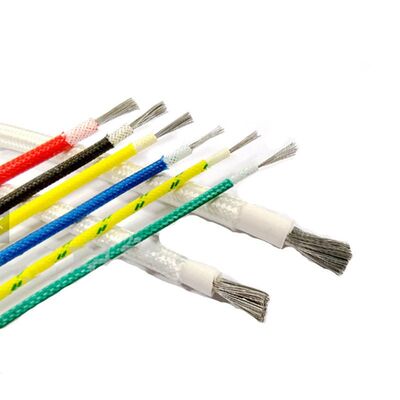

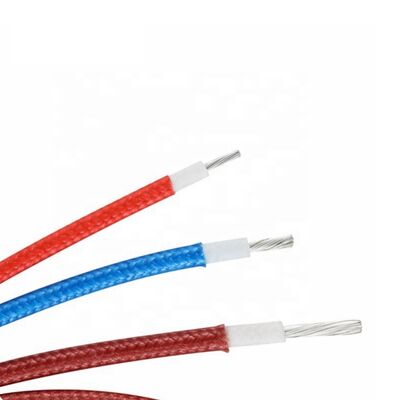

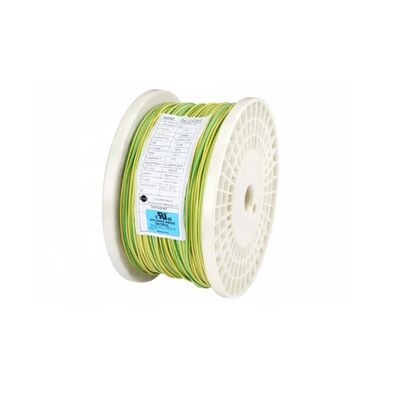

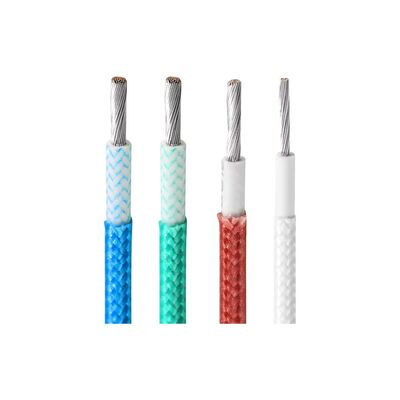

UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper | Diameter | 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 1.25mm2, 0.5mm2, 0.75mm2, 1.5mm2 |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 300V |
| Conductor Type | Stranded | Temperature Rating | 200C |
| Unit Length | 305 Meter/roll | Max Conductor Resistance | 143 Ω/KM (26 AWG), 89.3 Ω/KM (24 AWG), 56.4 Ω/KM (22 AWG), 35.2 Ω/KM (20 AWG), 22.2 Ω/KM (18 AWG), 14 Ω/KM (16 AWG) |
| Insulation Thickness | 0.60mm (26 AWG), 0.65mm (24 AWG) | Conductor Diameter | 0.48mm (26 AWG), 0.61mm (24 AWG), 0.77mm (22 AWG), 0.94mm (20 AWG), 1.19mm (18 AWG), 1.49mm (16 AWG) |
| Overall Diameter | 1.68mm (26 AWG), 1.81mm (24 AWG), 1.97mm (22 AWG), 2.14mm (20 AWG), 2.39mm (18 AWG), 2.69mm (16 AWG) | Conductor Construction | 7/0.16mm (26 AWG), 7/0.20mm (24 AWG), 7/0.254mm (22 AWG), 7/0.31mm (20 AWG), 7/0.39mm (18 AWG), 7/0.49mm (16 AWG) |
| Strand Count | 7 Strands (26-16 AWG), 1 Strand (24-16 AWG), 11 Strands (24 AWG), 17 Strands (22 AWG), 26 Strands (20 AWG), 41 Strands (18 AWG), 26 Strands (16 AWG) | Cross Section Area | 0.30mm², 0.50mm², 0.75mm², 1.00mm², 1.25mm² |
| Strand Diameter | 0.16mm (26-18 AWG), 0.18mm (0.30-1.25mm²) | ||
| Highlight | 300V Rated Voltage Fiberglass Braided Wire,200C High Temperature Silicone Rubber Wire,Tinned Copper Conductor UL3122 Wire |
||
Product Description
UL3122 300V 200°C Tinned Copper High Temperature Silicone Rubber Fiberglass Braided Motor Wire
Seeking Country Agents for a Win-Win Partnership
Product Specifications
| Conductor | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 1.81 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 1.97 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.14 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 2.39 | 22.2 | ||
| 16 | 7/0.49 | 1.49 | 2.69 | 14 | ||
| 24 | 1/0.50 | 0.50 | 0.65 | 1.80 | 89.3 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 1.95 | 56.4 | ||
| 20 | 1/0.81 | 0.81 | 2.11 | 35.2 | ||
| 18 | 1/1.02 | 1.02 | 2.32 | 22.2 | ||
| 16 | 1/1.20 | 1.20 | 2.50 | 14 | ||
| 24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 1.96 | 56.4 | ||
| 20 | 26/0.16 | 0.94 | 2.14 | 35.2 | ||
| 18 | 41/0.16 | 1.18 | 2.38 | 22.2 | ||
| 16 | 26/0.254 | 1.49 | 2.69 | 14 | ||
| 0.30mm² | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 2.12 | 40.1 | ||
| 0.75mm² | 30/0.18 | 1.13 | 2.33 | 26.7 | ||
| 1.00mm² | 40/0.18 | 1.31 | 2.51 | 20 | ||
| 1.25mm² | 50/0.18 | 1.46 | 2.66 | 14.35 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
