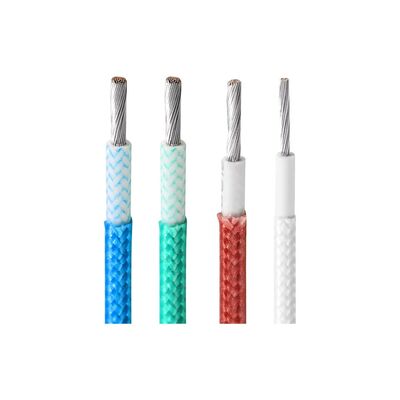

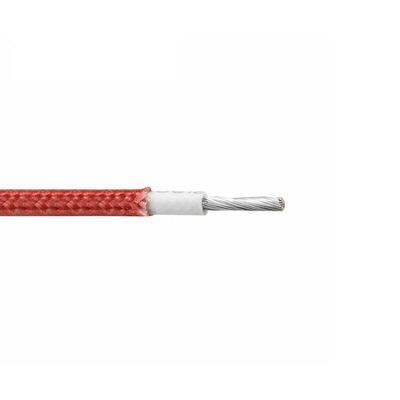

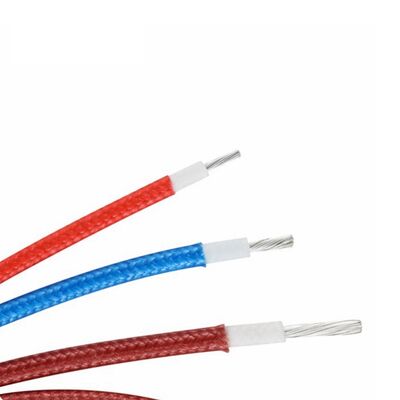

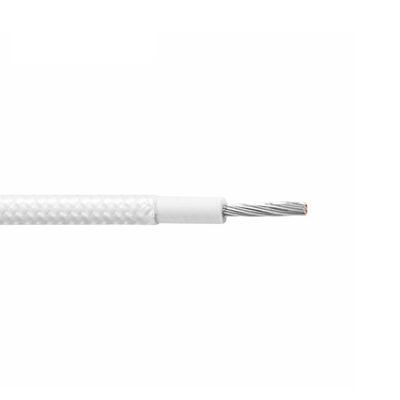

UL3122 200C 300V 16-26AWG Tinned Copper Silicone Fiberglass Braided Wire for Home Appliances
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinner Copper | Diameter | 12 AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 300 V |
| Conductor Type | Stranded | Temperature Rating | 200C |
| Wire Type | Insulated | Conductor Size | 16-26AWG |
| Cross Section | 0.3mm2-1.25mm2 | Max Conductor Resistance | 143 Ω/KM (26AWG) |
| Unit Length | 305 Meter/roll | Insulation Thickness | 0.60mm (26AWG) |
| Overall Diameter | 1.68mm (26AWG) | Construction | 7/0.16 (26AWG) |
| Standard | UL3122 | ||
| Highlight | 200C Fiberglass Braided Wire,300V Silicone Fiberglass Braided Wire,16-26AWG UL3122 Wire |
||
Product Description
UL3122 200°C 300V Silicone Fiberglass Braided Wire
High-temperature silicone rubber insulated wire with fiberglass braiding, designed for home appliances and industrial applications requiring superior heat resistance up to 200°C.
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, DDP, DDU. Accepted payment: T/T, L/C, PayPal, Western Union, Cash.
