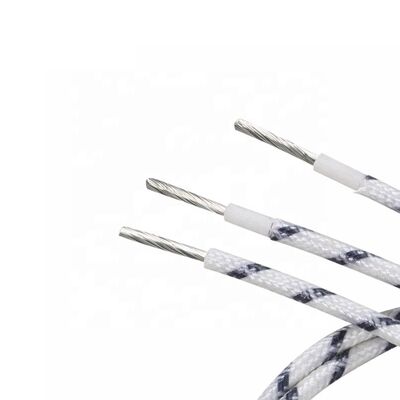

UL3074 12AWG 600V 200C Silicone Rubber Fiberglass Braided Copper Wire for Dehumidifier and Heaters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Copper | Diameter | 12 AWG |
|---|---|---|---|
| Insulation Material | Rubber | Rated Voltage | 600V |
| Conductor Type | Stranded | Temperature Rating | 200C |
| Conductor Construction | 19/0.4765/0.2547/0.78 | Conductor Diameter | 2.36 Mm |
| Insulation Thickness | 1.03 Mm | Overall Diameter | 4.42 Mm |
| Max Conductor Resistance | 5.64 Ω/KM | Unit Length | 305 Meter/roll |
| Conductor | Tinned Copper | Insulation | Silicone Rubber |
| Rated Temperature | 200 Degree | ||
| Highlight | 12AWG Fiberglass Braided Wire,600V Silicone Rubber Wire,200C High Temperature Wire |
||
Product Description
UL3074 12AWG 600V/200°C Silicone Rubber Fiber Glass Braided Copper Wire
Premium Dehumidifier Wiring Solution
High-performance silicone rubber insulated wire designed specifically for demanding applications including dehumidifiers, featuring exceptional heat resistance and durability.
Technical Specifications
| UL3074 Specification | Conductor | Insulation | Max Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|
| 12 AWG | 19/0.4765/0.2547/0.78 Diameter: 2.36mm |
Nominal Thickness: 1.03mm Diameter: 4.42mm |
5.64 | 305/1000 |
Company Overview
Our Product Range
Applications
Global Client Network
Industry Presence
Quality Certifications
Frequently Asked Questions
- Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment types: T/T, L/C, PayPal, Western Union, Cash.
