UL3075 600V Rated Voltage 200C Rated Temperature 10AWG Diameter High Flexible Silicone Rubber Fiberglass Braided Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Copper | Diameter | 10AWG |
|---|---|---|---|
| Insulation Material | Rubber | Rated Voltage | 600V |
| Conductor Type | Stranded | Temperature Rating | 200C |
| Wire Type | Insulated | Conductor | Tinned Copper |
| Insulation | Silicone Rubber | Max Resistance | 3.55 Ω/KM |
| Unit Length | 305 Meter/roll | Conductor Construction | 19/0.6135/0.457/0.98 |
| Conductor Diameter | 3.07 Mm | Insulation Thickness | 1.45 Mm |
| Overall Diameter | 5.97 Mm | ||
| Highlight | 600V Rated Voltage Fiberglass Braided Wire,200C Rated Temperature Silicone Rubber Wire,10AWG Diameter High Temperature Wire |
||
Product Description

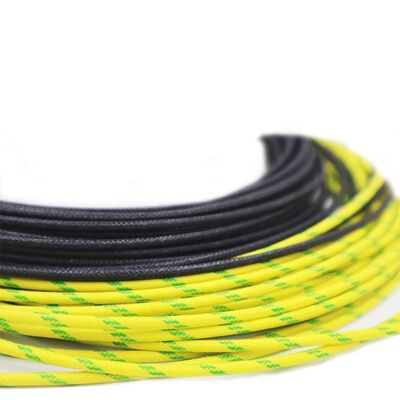

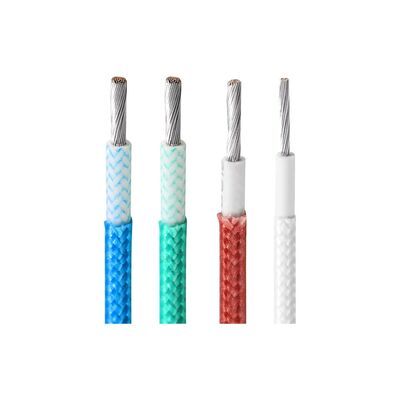

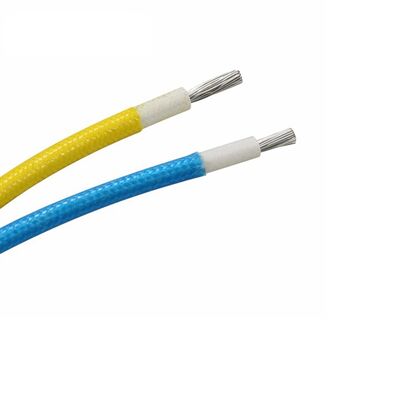

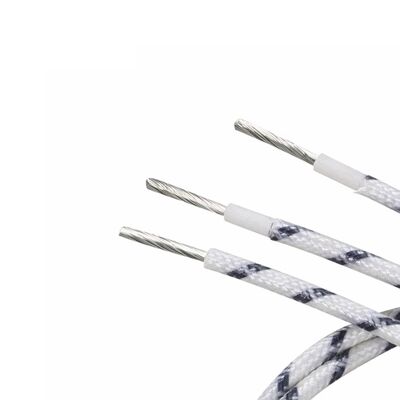

UL3075 600V 200°C High Flexible 10AWG Silicone Rubber Fiber Glass Braided Wire for Electric Motor
Seeking Country Agents for Win-Win Partnership
Product Specifications
| UL3075 Specification | Conductor | Insulation | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|
| 10 AWG | 19/0.6135/0.457/0.98 3.07 mm |
1.45 mm Nominal Thickness 5.97 mm Diameter |
3.55 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
- What Can We Provide? High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, and CQC certifications.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment types: T/T, L/C, PayPal, Western Union, Cash.
