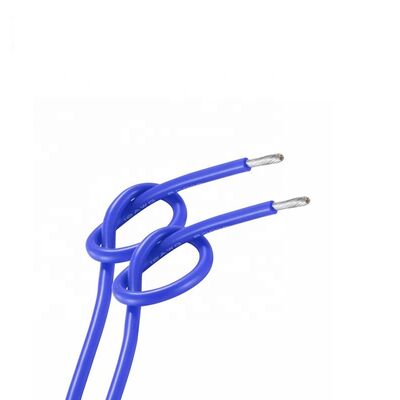

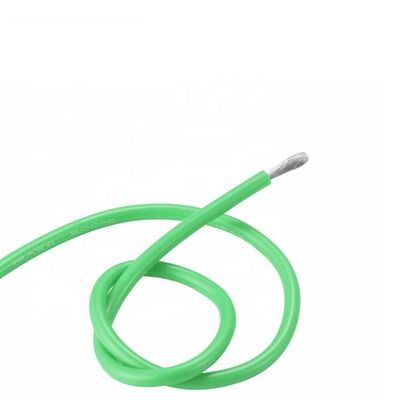

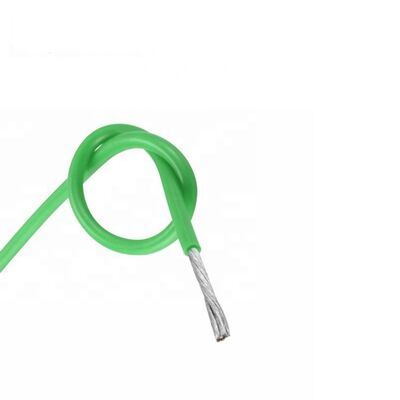

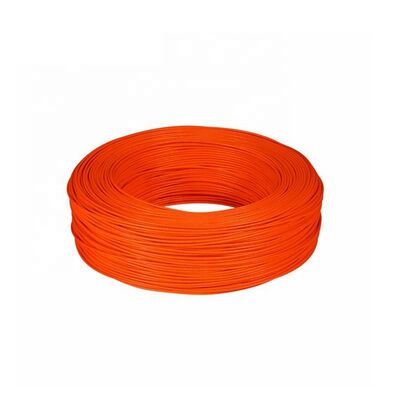

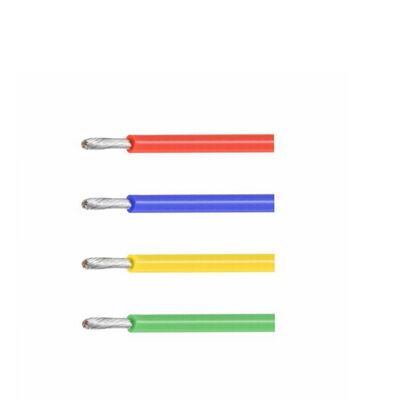

UL3123 150C 600V Tinned Copper Silicone Rubber Wire for Home Appliances and Heaters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinner Copper | Diameter | 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG |
|---|---|---|---|
| Insulation Material | Silicone Rubber | Rated Voltage | 600 V |
| Conductor Type | Stranded | Temperature Rating | 150C |
| Insulation Type | Insulated | Conductor Construction | 7/0.10 To 7/0.49 |
| Nominal Thickness | 0.78 To 3.30 Mm | Max Conductor Resistance | 1.86 To 14.6 Ω/KM |
| Unit Length | 305 Meter/roll | Conductor Diameter | 0.30 To 1.47 Mm |
| Insulation Diameter | 0.78 To 3.30 Mm | AWG Sizes | 16-30AWG |
| Strand Count | 7 | ||
| Highlight | 150C Silicone Rubber Wire,600V Fiberglass Braided Wire,Tinned Copper UL3123 Wire |
||
Product Description
UL3123 150°C 600V 16-30AWG Tinned Copper Silicone Rubber Home Appliance Wire
Seeking Country Agents for a Win-Win Partnership
Technical Specifications
| Conductor | Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|---|
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 381 | 610/2000 | |
| 28 | 7/0.12 | 0.36 | 1.92 | 239 | |||
| 26 | 7/0.16 | 0.48 | 2.04 | 150 | 305/1000 | ||
| 24 | 7/0.20 | 0.60 | 2.16 | 94.2 | |||
| 22 | 7/0.25 | 0.76 | 2.32 | 59.4 | |||
| 20 | 7/0.31 | 0.93 | 2.49 | 36.7 | |||
| 18 | 7/0.39 | 1.17 | 2.73 | 23.2 | |||
| 16 | 7/0.49 | 1.47 | 3.30 | 14.6 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
