UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire

  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
Place of Origin Guangdong, China
Brand Name MYSUN
Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Model Number UL1015
Minimum Order Quantity 305
Product Details
Conductor Material Cooper Diameter 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 18 AWG, 16 AWG, 20 AWG, 22 AWG, 24 AWG
Insulation Material PVC Rated Voltage 600V
Conductor Type Stranded Shape Round
Temperature 105C Conductor Tinned Copper
Rated Temperature 105 Package Length 305 Meter/roll
Max Resistance 347 Ω/KM (30 AWG) Conductor Diameter 0.30 Mm (30 AWG)
Insulation Thickness 0.80 Mm (30 AWG) Insulation Diameter 1.90 Mm (30 AWG)
Unit Length 305 M (30 AWG)
Highlight

2-30 AWG PVC Wire

,

600V Rated Voltage Hook Up Wire

,

105C Temperature Electric Furnace Heating Wire
Leave a Message
Product Description
UL1015 PVC Wire 2-30 AWG Single Core Flexible Hook up Electric Furnace Heating Wire
Product Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
307/0.100.300.801.90347305/1000
287/0.1270.381.98218
267/0.160.482.08138
2411/0.160.612.2185.9
2217/0.160.762.3654.3
2021/0.180.952.5533.9
1834/0.181.212.8121.4
1626/0.2541.503.1013.5
1441/0.2541.893.498.45
1265/0.2542.373.975.31
10105/0.2543.024.623.343
9133/0.2543.394.992.652
8133/0.2803.751.156.052.102
684/0.454.791.537.851.323
4133/0.456.029.080.8315
2212/0.457.6010.660.5231
Product Overview

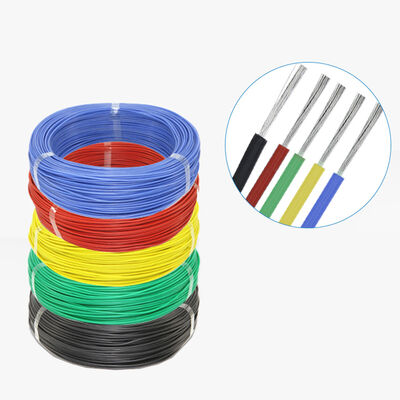

UL1015 PVC Wire product illustration showing construction and specifications
Applications
UL1015 PVC Wire applications in electric furnace heating systems
Company Profile

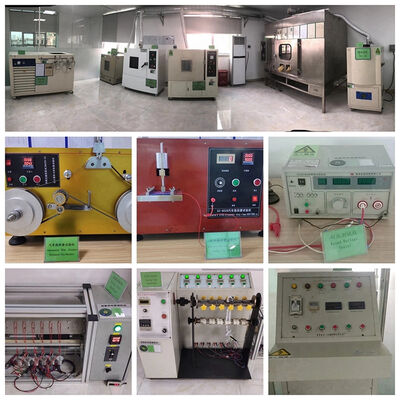

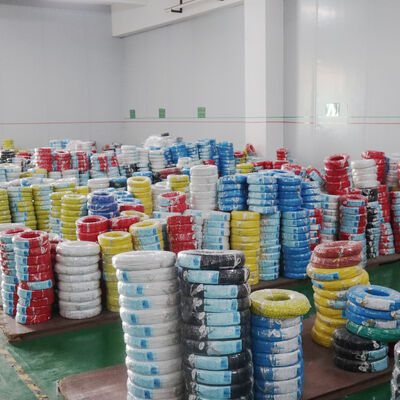

Manufacturing facility and quality control processes Company infrastructure and production capabilities
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
