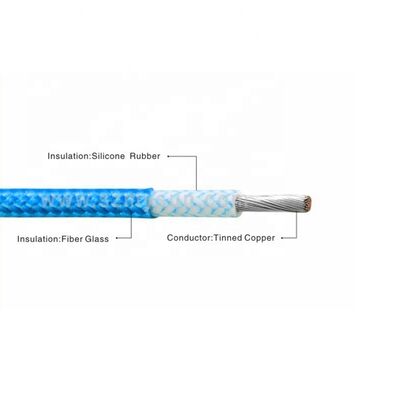

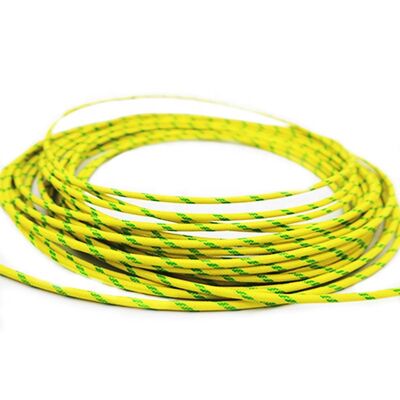

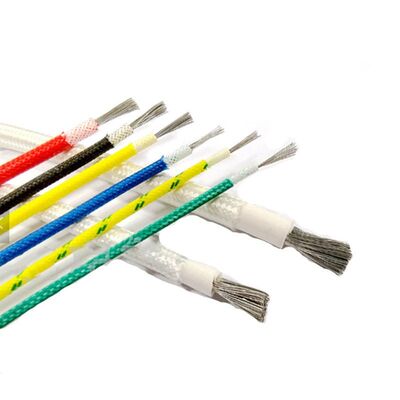

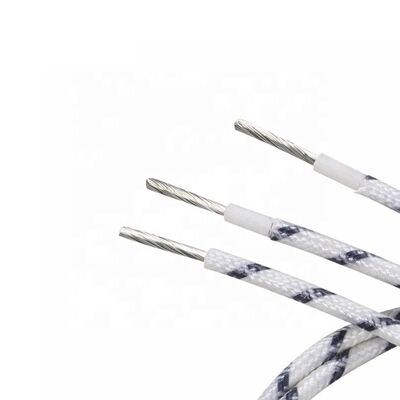

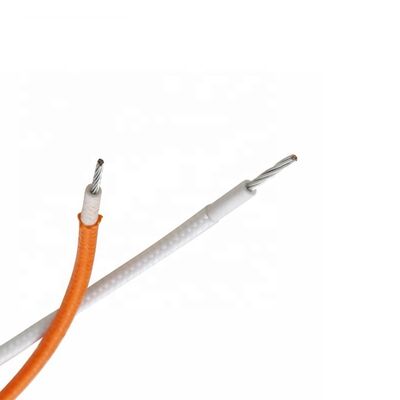

UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 600V | Rated Temperature | 200 Degree |
|---|---|---|---|
| Conductor Material | Copper | Conductor Type | Stranded |
| Insulation Material | Silicone Rubber | Wire Gauge | 13AWG, 14AWG, 16AWG, 18AWG |
| Conductor Diameter | 1.19mm (18AWG), 1.49mm (16AWG), 1.87mm (14AWG), 2.07mm (13AWG) | Insulation Thickness | 0.93mm |
| Overall Diameter | 3.05mm (18AWG), 3.35mm (16AWG), 3.73mm (14AWG), 3.93mm (13AWG) | Max Conductor Resistance | 23.2Ω/KM (18AWG), 14.6Ω/KM (16AWG), 8.96Ω/KM (14AWG), 6.97Ω/KM (13AWG) |
| Unit Length | 305m/roll | Conductor Construction | 7/0.39 (18AWG), 7/0.49 (16AWG), 41/0.254 (14AWG), 50/0.254 (13AWG) |
| Tinned Conductor | Yes | Color Customization | Available |
| Package Length | 305 Meter/roll | ||
| Highlight | UL3071 Certified Fiberglass Braided Wire,600V Rated Voltage Silicone Fiberglass Braided Wire,200 Degree Rated Temperature High Temperature Wire |
||
Product Description
UL3071 600V 200°C High Temperature Wire (13AWG-18AWG) - Silicone Braided Fiber Glass Wire for Convection Heaters
Product Overview
We are seeking country agents for mutually beneficial partnerships in distributing our high-quality high-temperature wires.
Technical Specifications
| Conductor | Insulation | Max. Conductor Resistance (Ω/KM) | Unit Length (M/Ft) | |||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 3.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
Company Profile
Our Product Range
Applications
Our Global Clients
Trade Exhibitions
Certifications
Frequently Asked Questions
- Who are we? We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
- What we provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
- Why choose us? Free samples, competitive pricing, high quality standards, and customized services.
- Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC.
- Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
