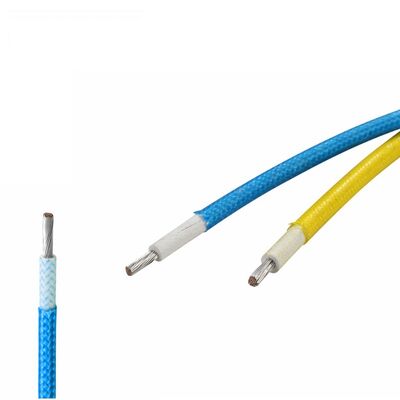

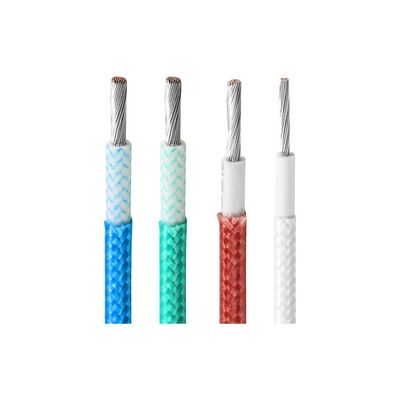

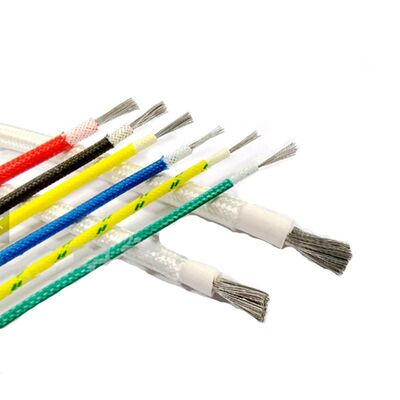

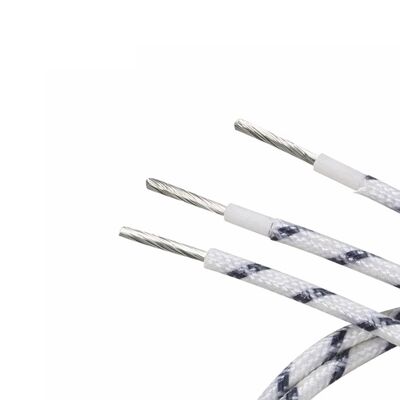

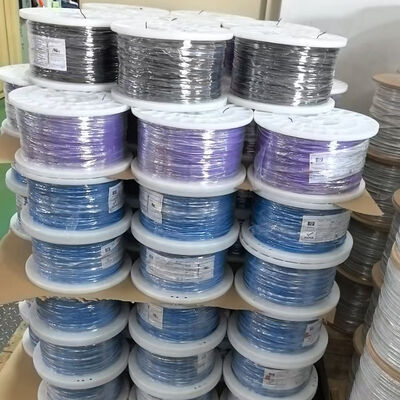

UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Copper | Diameter Options | 20AWG, 22AWG, 24AWG, 26AWG |
|---|---|---|---|
| Insulation Material | Rubber | Rated Voltage | 600V |
| Conductor Type | Stranded | Max Temperature | 150C |
| Wire Type | Insulated | Conductor Composition | Tinned Copper |
| Insulation Type | Silicone Rubber | Rated Temperature | 150 Degree |
| Package Length | 305 Meter/roll | Max Conductor Resistance | 36.7-150 Ω/KM |
| Nominal Thickness | 0.93 Mm | Insulation Diameter | 2.34-2.80 Mm |
| Conductor Diameter | 0.48-0.94 Mm | ||
| Highlight | 150C Heat Resistance Fiberglass Braided Wire,600V Rated Voltage Silicone Fiberglass Braided Wire,305m/roll Package UL3069 Wire |
||
Product Description
UL3069 150C 600V Heat Resistance Wire Silicone Braided Fiberglass Wire Manufacturer
Seeking Country Agents for a Win-Win Partnership
Product Description
Specification
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Insulation Nominal Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.93 | 2.34 | 150 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.93 | 2.47 | 94.2 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.93 | 2.63 | 59.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.93 | 2.80 | 36.7 | 305/1000 |
Company Profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
- What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
