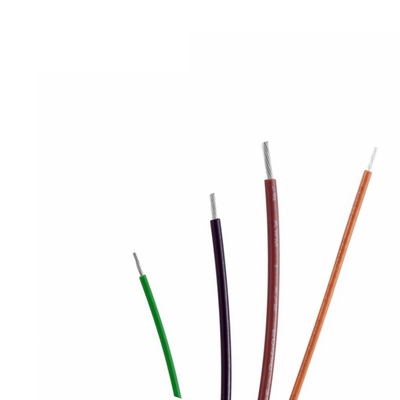

UL3239 FEP Wire with 15000V Rated Voltage and 200C High Temperature for Industrial Power Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper | Diameter | 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG |
|---|---|---|---|
| Insulation Material | FEP | Rated Voltage | 15000V |
| Conductor Type | Solid | Shape | Round |
| Temperature Rating | 200℃ | Unit Length | 305/1000 |
| Max Resistance | 14.6 Ω/KM (16 AWG) | Conductor Construction | 19/0.30 (16 AWG) |
| Nominal Thickness | 1.00 Mm | Insulation Diameter | 3.50 Mm (16 AWG) |
| Voltage Rating | 150V | Color Options | All Colours |
| Conductor Options | Tinned Copper/Silver-plated Copper | ||
| Highlight | 15000V Rated Voltage FEP Wire,200C High Temperature UL3239 Wire,Tinned Copper Conductor High Temperature Wire |
||
Product Description
UL3239 FEP Wire 15000V 200°C High Temperature Wire for Industrial Power
Premium FEP Wire Supplier for Fortune 500 Companies
Technical Specifications
| UL3239 | UL1330 | |||||
|---|---|---|---|---|---|---|
| Size (AWG) | Conductor Construction (No.mm) | Conductor Diameter (mm) | Insulation Nominal Thickness (mm) | Insulation Diameter (mm) | Max. Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
| 28 | 7/0.12 | 0.36 | 1.00 | 2.36 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 1.00 | 2.48 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 1.00 | 2.60 | 94.2 | 610/2000 |
| 22 | 19/0.15 | 0.75 | 1.00 | 2.75 | 59.4 | 305/1000 |
| 20 | 19/0.19 | 0.93 | 1.00 | 2.95 | 36.7 | 305/1000 |
| 18 | 19/0.235 | 1.17 | 1.00 | 3.17 | 23.2 | 305/1000 |
| 16 | 19/0.30 | 1.50 | 1.00 | 3.50 | 14.6 | 305/1000 |
| 14 | 19/0.37 | 1.85 | 1.00 | 3.85 | 8.69 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
