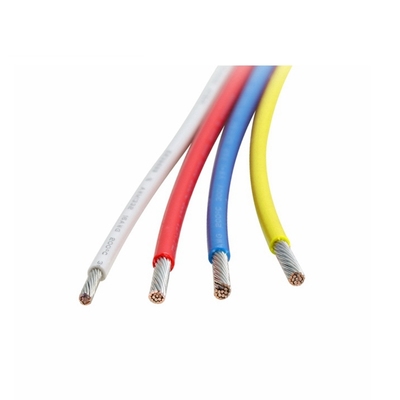

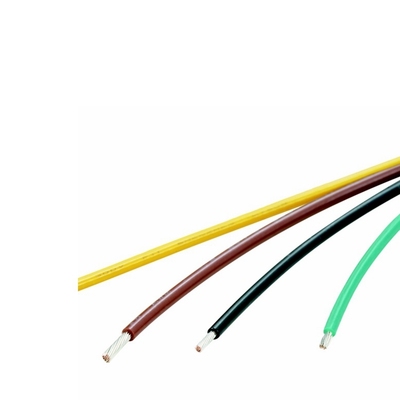

UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas

  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number UL10072
Minimum Order Quantity 3050
Product Details
Conductor Material Tinned Copper Diameter 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 6 AWG, 8 AWG, 4 AWG, 2 AWG, 1 AWG, 26AWG, 7AWG, 5AWG, 3AWG, 0AWG, 2/0AWG, 3/0AWG, 4/0AWG
Insulation Material Rubber Rated Voltage 150V
Conductor Type Solid Shape Round
Type Insulated Temperature Rating 200℃
Insulation Type FEP Or PTFE, TFE Conductor Options Tinned Copper/Silver-plated Copper
Unit Length 305/1000 Max Resistance 563 Ω/KM (32AWG)
Nominal Thickness 0.350mm Construction 7/0.08 (32AWG)
Standard UL758
Highlight

UL10072 High Temperature Wire

,

150V FEP Wire

,

200C TFE Wire
Leave a Message
Product Description
UL10072 FEP or TFE Wire 6-32AWG 150V 200°C Silver Plated Copper High Temperature Wire

Supplies Fortune 500 Companies - Top High Temperature Wire Supplier In China.

UL10072 FEP/TFE High Temperature Wire UL10072 FEP/TFE High Temperature Wire close-up
Specification
UL10072 UL1330
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
327/0.080.240.3500.74563610/2000
307/0.100.300.3500.80381610/2000
287/0.1270.380.3500.88239610/2000
267/0.160.480.3500.98150610/2000
247/0.200.610.3501.1194.2610/2000
2219/0.150.770.3501.2759.4305/1000
2019/0.190.920.3501.4236.7305/1000
1819/0.2351.190.3501.6923.2305/1000
1619/0.301.490.3501.9914.6305/1000
1419/0.371.850.3502.378.78305/1000
1219/0.472.350.3502.875.64305/1000
1019/0.433.000.3503.553.55305/1000
937/0.4753.350.5104.372.813305/1000
837/0.543.800.5104.822.23305/1000
737/0.604.240.5105.261.768305/1000
637/0.684.790.5105.811.403305/1000
Click Contact us Get the Best Quote
Company Profile
Our manufacturing facility Our production line Quality control process Advanced manufacturing equipment
Our Products
Our high temperature wire product range Wire product specifications
Application
High temperature wire applications in electronics Industrial applications of our wires
Our Overseas Clients
Our international client network Global distribution partners
Exhibition
Trade show exhibition booth Industry exhibition participation
Certifications
Our quality certifications International compliance certificates
FAQ
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
