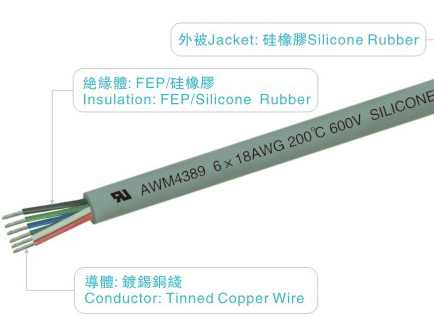

UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
Product Details
| Conductor Material | Tinned Copper | Diameter Options | 2X22AWG, 2X20AWG, 2X18AWG, 3X22AWG, 3X20AWG, 3X18AWG, 4X20AWG, 4X18AWG |
|---|---|---|---|
| Insulation Material | Rubber | Rated Voltage | 600 V |
| Conductor Type | Solid | Shape | Round |
| Temperature Rating | 200°C | Insulation Type | Silicone |
| Conductor Options | Tinned Copper/Silver-plated Copper | Nominal Thickness | 0.33 Mm |
| Out Garment Thickness | 1.00 Mm | Diameter Range | 4.5-8.00 Mm |
| Construction | 19 Strands Per Conductor | Strand Diameter | 0.15-0.235 Mm |
| Length | 305 M / 1000 Ft | ||
| Highlight | Silicone Rubber Jacket FEP Wire,Industrial Power Silicone Insulated Wire,Tinned Copper High Temperature Wire |
||
Product Description
UL4389 FEP Wire 600V 200°C Silicone Rubber Jacket High Temperature Wire for Industrial Power
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China
Product Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Out Garment Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|---|
| 2x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 4.5-6.00 |
| 2x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 4.5-6.00 |
| 2x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 5.00-6.50 |
| 3x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 4.5-6.00 |
| 3x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 4.5-6.00 |
| 3x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 5.00-6.50 |
| 4x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 5.0-6.50 |
| 4x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 5.0-6.50 |
| 4x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 5.50-7.00 |
| 5x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 5.0-6.50 |
| 5x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 5.0-6.50 |
| 5x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 5.50-7.00 |
| 6x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 5.5-7.00 |
| 6x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 6.00-7.50 |
| 6x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 6.50-8.00 |
| 7x22 | 19/0.15 | 0.75 | 0.33 | 1.00 | 5.5-7.00 |
| 7x20 | 19/0.19 | 0.90 | 0.33 | 1.00 | 6.00-7.50 |
| 7x18 | 19/0.235 | 1.17 | 0.33 | 1.00 | 6.50-8.00 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
Free Sample
Competitive Price
High Quality Standard
Customized Service
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
