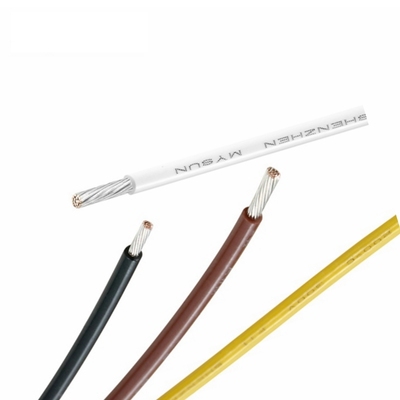

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Place of Origin Guangdong, China
Brand Name MYSUN
Model Number UL10468
Minimum Order Quantity 3050

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Tinned Copper Diameter 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Insulation Material Rubber Rated Voltage 300 V
Conductor Type Solid Shape Round
Temperature 250°C, 150 Or 200℃ Voltage 600V
Insulation ETFE Conductor Tinned Copper/Silver-plated Copper
Unit Length 305/1000 Max Conductor Resistance 5.64 Ω/KM (12AWG), 8.96 Ω/KM (14AWG), 14.6 Ω/KM (16AWG)
Nominal Thickness 0.350mm (12AWG), 0.300mm (14AWG), 0.330mm (16AWG) Insulation Diameter 3.05mm (12AWG), 2.55mm (14AWG), 2.16mm (16AWG)
Construction 19/0.475 (12AWG), 19/0.37 (14AWG), 19/0.30 (16AWG)
Highlight

ETFE Insulation Wire

,

UL758 Standard Wire

,

Head Sensor ETFE Wire
Leave a Message
Product Description
UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 0 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 1
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote
Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 2 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 3
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 4
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 5
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 6
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 7
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
